Запчасти Case IH 1210 (8-40) - THREE-POINT LINKAGE, 1210Q & 1210SK 4WD TRACTOR, 1210 & 1210G 4WD TRACTORS W/ S/N 11158038 & AFTER (08) - HYDRAULICS

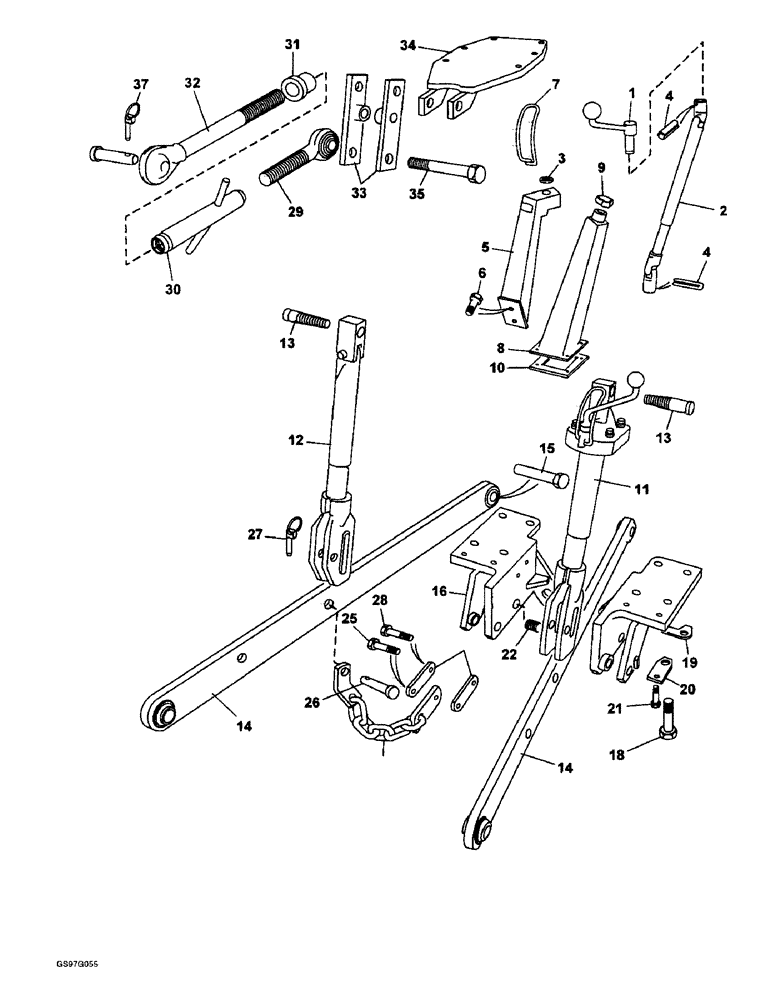

Схема запчастей Case IH 1210 - (8-40) - THREE-POINT LINKAGE, 1210Q & 1210SK 4WD TRACTOR, 1210 & 1210G 4WD TRACTORS W/ S/N 11158038 & AFTER (08) - HYDRAULICS
18
34
29
2
15
5
7
19
11
10
14
28
13
27
30
1
33
4
32
3
4
1
8
12
16
14
26
22
35
37
25
13
9
31
6
20
21

Артикул

Название

Примечание

Количество

1

K956382

BALL

HANDLE levelling lever control, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

2

K956385

LINK

SPINDLE telescopic, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

3

K956383

WASHER

thrust, no longer available

2шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

K626910

WASHER

SHIM control handle (Replaces shim K921778)

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

4

K691356

PIN

spring, 5 x 25 mm

2шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

5

K955279

BRACKET

support, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

6

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, 5/16 NC x 5/8 inch

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

7

K924723

SPRING

LATCH

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

8

K956013

COVER

telescopic spindle, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

9

K621992

CLIP

cover to bracket, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

10

K956020

CLAMP

PLATE, no longer available

1шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

K19660

RIVET

1/8 x 3/8 inch, no longer available

4шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

K626309

WASHER

flat, 1/8 inch, no longer available

4шт.

Used with 1210Q four-wheel drive tractors with serial number 11158600 and after.

1шт.

11

REF

INSTRUCTION

LEVER ASSEMBLY leveling, parts list Figure 8-46

1шт.

12

REF

INSTRUCTION

ROD ASSEMBLY lift, parts list Figure 8-46

1шт.

13

K914191

PIN

BOLT special, 3/4 NC x 4-1/4 inch

2шт.

K607446

NUT

hex, self-locking, 3/4 inch NC

2шт.

14

K918720

LINK

lower, 38-1/2 inch

2шт.

15

K612065

BOLT

hex, 1-1/8 NF x 5 inch

2шт.

K627460

WASHER

special, used with 1210G four-wheel drive tractors, 1-1/8 inch

1шт.

K617595

LOCK NUT

hex, self-locking, 1-1/8 inch NC

2шт.

16

K954556

BRACKET

hitch, left-hand, no longer available

1шт.

17

K954557

HITCH ASSY

BRACKET, right-hand, no longer available

1шт.

18

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch (Replaces bolt K601410)

8шт.

19

K913121

WASHER

tab

2шт.

20

K954562

WASHER

tab, no longer available

2шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch (Replaces bolt K602906)

4шт.

K607442

NUT

hex, self-locking, 3/8 inch NC, no longer available

4шт.

22

K954435

STAY

cross, no longer available

1шт.

425-1116

NUT,1"-14, G5

hex, 1 inch NF (Replaces nut K616989)

4шт.

K946107

CHAIN (AG)

ASSEMBLY check, Includes: Ref. 23 - 25 and Nut

2шт.

23

K946105

CHAIN (AG)

check, order chain assembly K946107

1шт.

24

K924022

PLATE

chain

2шт.

25

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt K600804) Hex, 1/2"-13 x 1 3/4", G5

1шт.

K607462

NUT

hex, self-locking, 1/2 inch NC

1шт.

26

K946108

HEADED PIN

pivot

2шт.

K19476

WASHER

flat, 5/8 inch

2шт.

27

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

2шт.

28

K600804

BOLT

hex, 1/2 NC x 1-3/4 inch

2шт.

K607462

NUT

hex, self-locking, 1/2 inch NC

2шт.

K956115

LINK

ASSEMBLY top, no longer available as an assembly, order screw K920798, Ref. 29; buckle K920800, Ref. 30; screw K964864, Ref. 32; fitting 219-8 and nut K19448, Includes: Ref. 29 - 32

1шт.

29

K920798

BALL

SCREW link assembly

1шт.

K19448

LOCK NUT

lock, 1-1/4 BSF

1шт.

30

K920800

TURNBUCKLE

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

31

K955515

BUSHING

top link stowage, used with serial number 11158600 and after

1шт.

32

K964864

SHAFT

SCREW, 15 inch (Replaces screw K922791)

1шт.

33

K947957

ARM

LINK connecting, used with 1210, 1210Sk and 1210Q four-wheel drive tractors

1шт.

34

K947956

BRACKET

anchor, used with 1210, 1210Sk and 1210Q four-wheel drive tractors

1шт.

35

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4 NC x 5-1/2 inch, used with 1210, 1210Sk and 1210Q four-wheel drive tractors (Replaces bolt K601469)

3шт.

K19476

WASHER

flat, 3/4 inch, used with 1210, 1210Sk and 1210Q four-wheel drive tractors

6шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex jam, 3/4 inch NC, used with 1210, 1210Sk and 1210Q four-wheel drive tractors (Replaces nut K607086)

6шт.

K956034

LINK

connecting, used with 1210G four-wheel drive tractors, no longer available

1шт.

K956039

BUSHING

SPACER distance, used with 1210G four-wheel drive tractors, no longer available

2шт.

K919725

PIN,19.05mm OD x 111.13mm L

link, used with 1210G four-wheel drive tractors

1шт.

K210316

LINCH PIN

linch, used with 1210G four-wheel drive tractors (Replaces pin K66408)

1шт.

36

K65690

HITCH PIN

link

1шт.

37

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

1шт.

Выбрано товаров: 73
