Запчасти Case IH 1210 (8-38) - THREE-POINT LINKAGE, 1210, 1212, 1210G AND 1212G TRACTORS, 1210 AND 1210G FOUR-WHEEL DRIVE TRACTORS (08) - HYDRAULICS

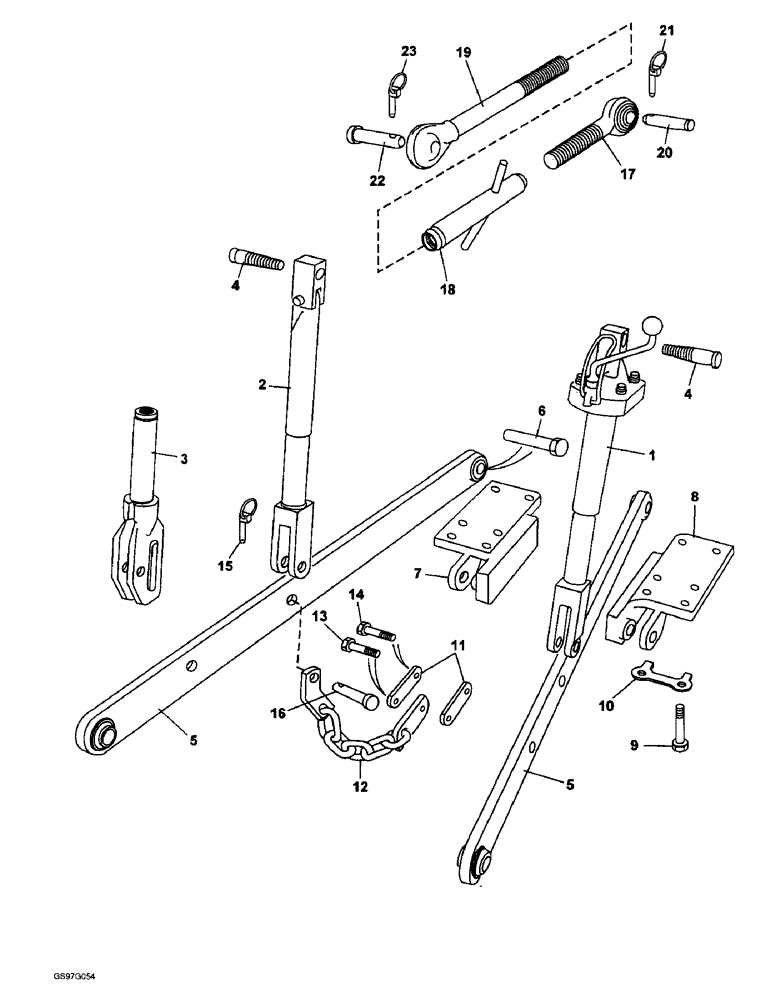

Схема запчастей Case IH 1210 - (8-38) - THREE-POINT LINKAGE, 1210, 1212, 1210G AND 1212G TRACTORS, 1210 AND 1210G FOUR-WHEEL DRIVE TRACTORS (08) - HYDRAULICS
17
2
1
9
5
14
8
15
20
7
16
12
3
4
22
21
23
4
13
11
5
19
10
18
6

Артикул

Название

Примечание

Количество

1

K940507

LEVER

ASSEMBLY levelling, parts list Figure 8-44

1шт.

2

K940506

ROD

ASSEMBLY lift, parts list Figure 8-44

1шт.

3

K946081

ROD

NUT adjusting, 1 x 11-5/8 inch, if used

2шт.

K19476

WASHER

flat, 5/8 inch, if used

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

4

K914191

PIN

BOLT special, lift arm, 3/4 NC x 4-1/4 inch

2шт.

K607446

NUT

hex, self-locking, 3/4 inch NC

2шт.

5

K918720

LINK

lower, 38-1/2 inch

2шт.

6

K612065

BOLT

hex, 1-1/8 NF x 5 inch, two used with 1210, 1212 and 1210 four-wheel drive tractors; one used with 1210G, 1212G and 1210G four-wheel drive tractors

1шт.

6

K612066

BOLT

1-1/8 NF x 4-5/8 inch, one used with 1210G, 1212G and 1210G four-wheel drive tractors, no longer available

1шт.

K617595

LOCK NUT

hex, self-locking, 1-1/8 inch NF

2шт.

7

K918600

BRACKET

hitch, left-hand

1шт.

8

K918604

BRACKET

hitch, right-hand

1шт.

9

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, brackets to axle housing, 3/4 NC x 3 inch (Replaces bolt K601410)

8шт.

10

K913121

WASHER

tab, brackets to axle housing

4шт.

K946107

CHAIN (AG)

ASSEMBLY check, Includes: Ref. 11 - 13 and Nut

2шт.

11

K924022

PLATE

check chain

2шт.

12

K946105

CHAIN (AG)

check, order chain assembly K946107

1шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt K600804) Hex, 1/2"-13 x 1 3/4", G5

1шт.

K607462

NUT

hex, self-locking, 1/2 inch NC

1шт.

14

K600804

BOLT

hex, 1/2 NC x 1-3/4 inch

2шт.

K607462

NUT

hex, self-locking, 1/2 inch NC

2шт.

15

K915678

PIN

linch

2шт.

16

K946108

HEADED PIN

check chain

2шт.

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

2шт.

K956115

LINK

ASSEMBLY top, no longer available as an assembly, order screw K920798, Ref. 17; buckle K920800, Ref. 18; screw K964864, Ref. 19; fitting 219-8 and nut K19448 (Replaces link assembly K940501), Includes: Ref. 17 - 23

1шт.

17

K920798

BALL

SCREW tractor end, 8 inch

1шт.

18

K920800

TURNBUCKLE

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

19

K964864

SHAFT

SCREW, 15 inch (Replaces screw K922791)

1шт.

K19448

LOCK NUT

lock, right-hand, 1-1/4 BSF

1шт.

20

K919725

PIN,19.05mm OD x 111.13mm L

link

1шт.

21

K210316

LINCH PIN

linch (Replaces pin K66408)

1шт.

22

K65690

HITCH PIN

link

1шт.

23

K920359

PIN

linch

1шт.

Выбрано товаров: 35
