Запчасти Case IH 1210 (8-32) - HYDRAULIC PUMP (08) - HYDRAULICS

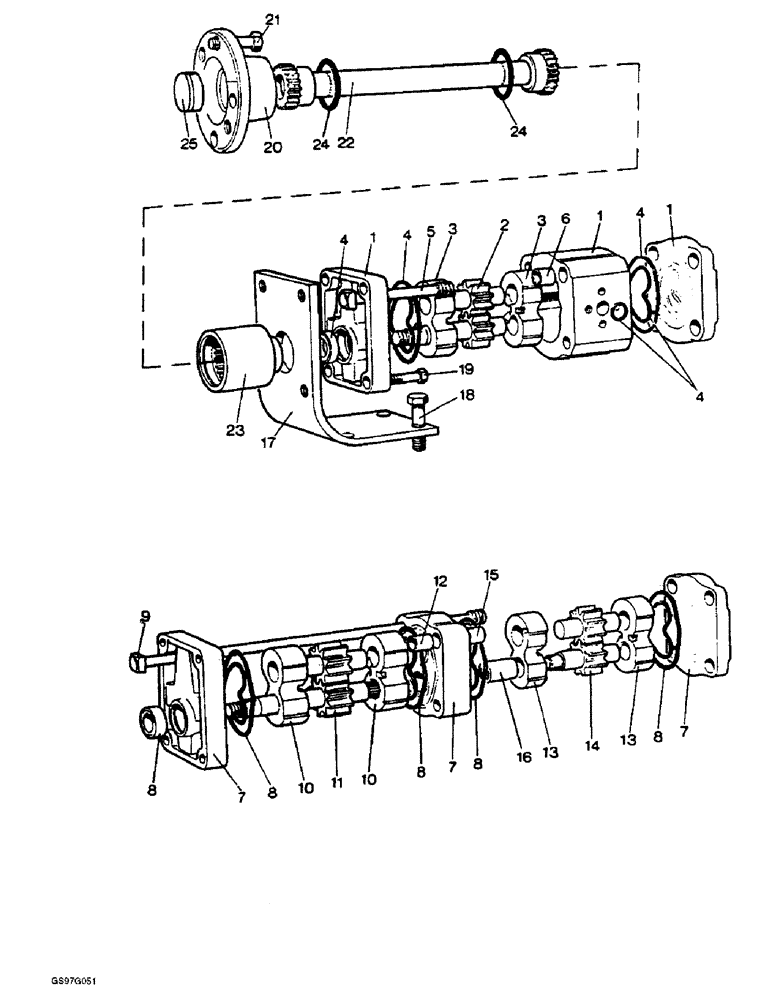

Схема запчастей Case IH 1210 - (8-32) - HYDRAULIC PUMP (08) - HYDRAULICS
22
1
20
13
4
7
19
10
4
12
10
18
14
8
21
8
5
11
6
7
3
9
8
2
8
1
13
25
23
15
17
4
3
4
24
16
24
8
7
1

Артикул

Название

Примечание

Количество

1

K919048

PUMP

ASSEMBLY single, Plessey A25UT, Includes: Ref. 2- 6, Cover, Nut, Washer, Flange, and Seal

1шт.

K962112

COVER

front, order pump assembly

1шт.

2

K962090

GEAR

ROTORS one pair

1шт.

3

K962089

BEARING

rotors, order pump assembly

2шт.

4

K964831

SEAL

seal, single pump (Replaces kit K962088)

1шт.

5

K962103

special, 3/8 NF, no longer available

4шт.

6

K964920

PIN

DOWEL ring (Replaces dowel K962099)

8шт.

B88347

3/8 inch NF (Replaces nut K616982)

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

K962100

PLATE

FLANGE pump, order pump assembly

1шт.

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

pump

1шт.

7

K916535

PUMP

ASSEMBLY tandem, Includes: Ref. 8 - 16

1шт.

K916535R

REMAN-HYD PUMP

1210 S/N 11150001 & AFTER (1/76-1/80), 1212 S/N 11150001 & AFTER (1/76-12/80)

1шт.

K916535C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

K964831

SEAL

seal, both pump sections (Replaces kit K962117)

1шт.

9

K962111

BOLT

special, 3/8 NF

4шт.

B88347

3/8 inch NF (Replaces nut K626982)

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

10

K962116

BEARING ASSY

rear pump

2шт.

11

K962109

GEAR

ROTORS one pair, rear pump, order pump assembly

1шт.

12

K962099

PIN

DOWEL ring, rear pump

4шт.

13

K962089

BEARING

front pump

2шт.

14

K962105

GEAR

ROTORS one pair, front pump

1шт.

15

K964920

PIN

DOWEL ring, front pump (Replaces dowel K962110)

4шт.

16

K962107

COUPLING, BREAK AWAY

front

1шт.

17

K944951

SUPPORT

BRACKET, no longer available

1шт.

18

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

hex, bracket to frame, single pump, 1/2 NC x 1-3/8 inch (Replaces bolt K603107)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bracket to frame, single pump (Replaces washer K19484) 1/2"

4шт.

K626686

WASHER

flat, bracket to frame, single pump, 1/2 inch (Replaces washer K19474)

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

hex, bracket to frame, tandem pump, 1/2 NC x 1-3/8 inch, (Replaces bolt K603107)

2шт.

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

hex, bracket to frame, tandem pump, 1/2 NC x 1-5/8 inch (Replaces bolt K603109)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bracket to frame, tandem pump (Replaces washer K19484) 1/2"

4шт.

19

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Pump to bracket (Replaces bolt K600006) Hex, 1/4"-20 x 1 1/2", G5

4шт.

492-11025

LOCK WASHER,1/4"

pump to bracket, 1/2 inch (Replaces washer K19480)

4шт.

425-104

NUT,1/4"-20, Cl 5

Pump to bracket (Replaces nut K607000) 1/4"-20, G5

4шт.

20

K910538

COUPLING, BREAK AWAY

crankshaft pulley

1шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, coupling to crankshaft pulley, 5/16 NC x 1-1/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , coupling to crankshaft pulley (Replaces washer K19481) 5/16"

4шт.

22

K944950

SHAFT

drive

1шт.

23

K944947

COUPLING, BREAK AWAY

pump

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(Replaces key K19604) #5, 1/8" x 5/8"

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

(Replaces nut K617053) Jam, 7/16"-20, G5

1шт.

K626380

WASHER

tab

1шт.

24

K262773

O-RING

1-7/16 inch ID (Replaces O-ring K623555)

2шт.

25

K627581

BUSHING

DISC rubber, 7/16 inch, if used

1шт.

25

K627582

BUSHING

DISC rubber, 9/16 inch, if used

1шт.

25

K627583

BUSHING

DISC rubber, 5/8 inch, if used

1шт.

Выбрано товаров: 47
