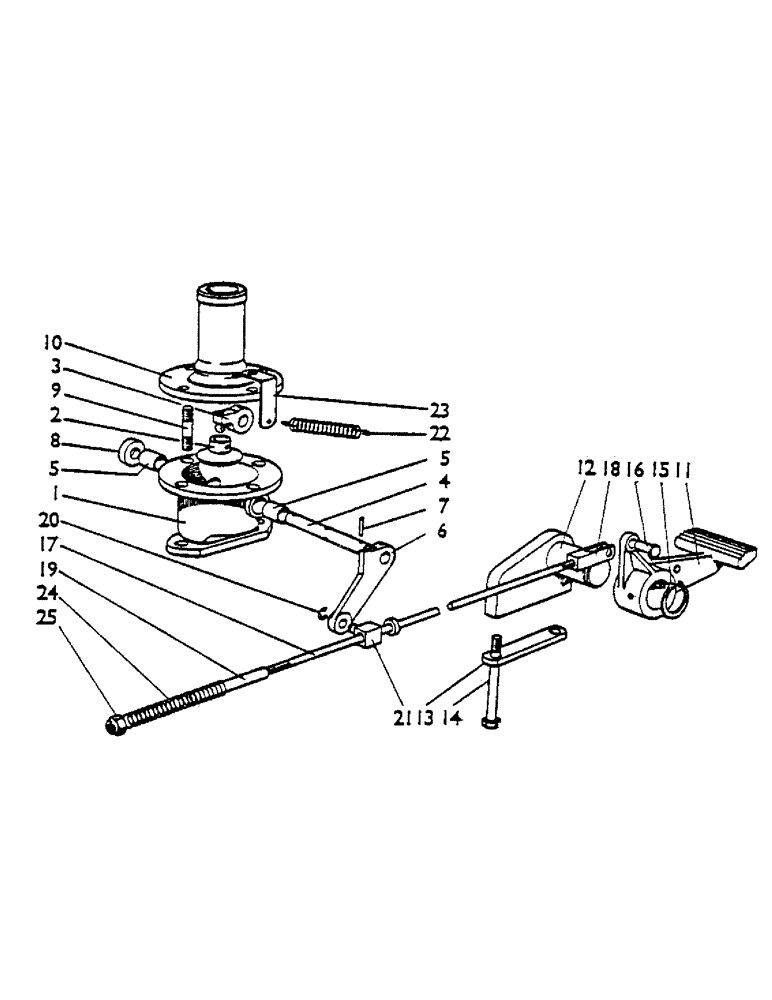

Запчасти Case IH 1200 (078) - EXHAUST BRAKE, U1322, MANUAL STEERING, OPTIONAL EQUIPMENT, U1323, HYDROSTATIC STEERING (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
K922533
NO LONGER SERVICED
valve assembly (supersedes 906799)
1шт.
1
K907032
VALVE
housing 922533
1шт.
2
K904545
VALVE
922533
1шт.
3
K904537
VALVE
lever 922533
1шт.
K19541
PIN
split pin, 5/32 x 1 1/8 in. 922533
1шт.
4
K906454
SPINDLE
operating spindle 922533
1шт.
5
K904547
BUSHING
bush 922533
2шт.
6
K922551
LEVER
operating lever (supersedes 906798) 922533
1шт.
7
K623733
PIN
3/16 x 7/8 in. (replaces, 922533 623740)
3шт.
8
K904551
COLLAR
922533
1шт.
9
K608200
STUD
3/8 UNC x 1 5/16 in. 922533
2шт.
K904550
GASKET
, Serial Range: gasket--valve-flange
1шт.
10
K928700
FLANGE
exhaust flange (replaces 920285)
1шт.
K608220
STUD
3/8 UNC x 4 3/4, Serial Range: in.--flange-manifold
2шт.
280136
NUT,3/8"-16, G8
4шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg
1шт.
12
K920630
PEDAL
support--pedal
1шт.
13
K920631
CLAMP
support to steering-box manual steering
1шт.
14
K600419
BOLT
3/8 UNC x 3 3/4 in. support, manual steering to, Serial Range: steering-steering-box
2шт.
K602903
SCREW
setscrew, 3/8 UNC x 7/8 in. support, hydrostatic steering to, Serial Range: steering-steering-box
2шт.
K19482
SPRING WASHER
spring washer, 3/8 in., Serial Range: support-steering-box
2шт.
15
K11129
RING, SNAP
circlip, 1 1/4 in. ext.
1шт.
16
K928521
PIN
(replaces 906451)
1шт.
17
K922550
ROD
control rod (supersedes 620626)
1шт.
18
K920950
FORK
end, 5/16 UNC
1шт.
K607081
LOCK NUT
locknut, 5/16 UNC (replaces 607051)
1шт.
19
K922548
BUSHING
distance piece (supersedes 620651)
1шт.
20
K621587
RING, SNAP
'E' clip, 3/8 in.
2шт.
21
K920650
NO LONGER SERVICED
eye end
1шт.
22
K906456
SPRING
return spring
1шт.
23
K920629
BRACKET
anchor bracket
1шт.
24
K920652
SPRING
--control rod
1шт.
25
231-1435
LOCK NUT,5/16"-18, GB
NYLOC NUT, 5/16 UNC
1шт.
K19471
WASHER
5/16 in.
1шт.
Выбрано товаров: 34
