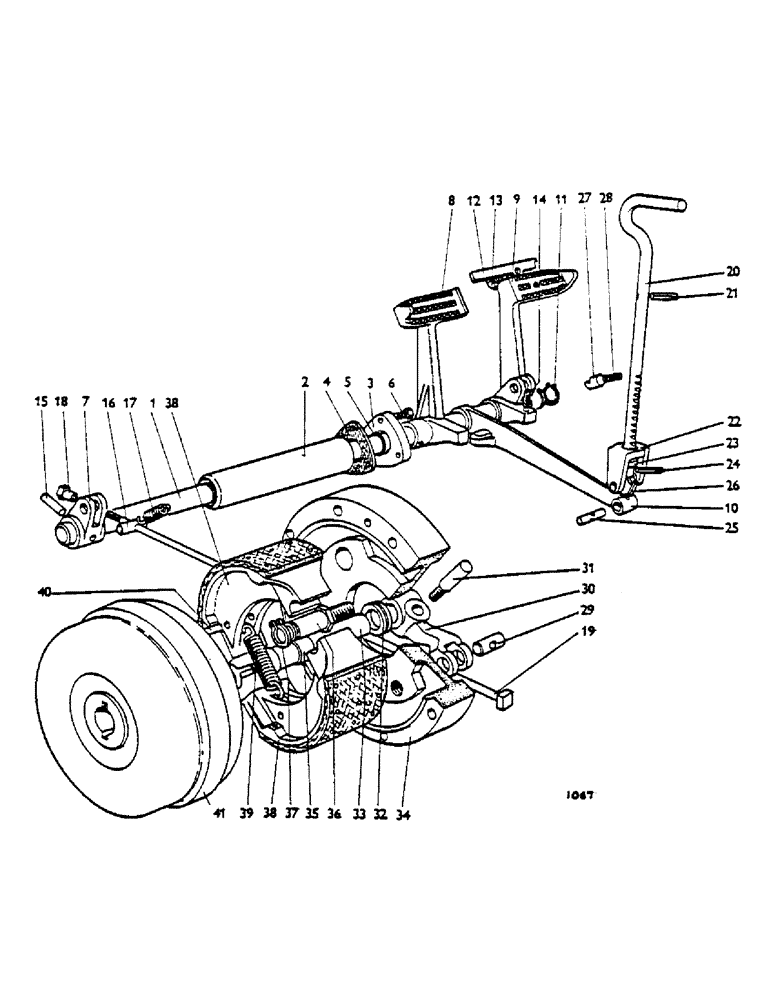

Запчасти Case IH 1200 (076) - FOOT AND HAND BRAKES (5.1) - BRAKES

1

K916678

cross shaft

1шт.

2

K916651

TUBE

--main frame

1шт.

3

K916650

CAP

end cap--tube

2шт.

4

K916652

GASKET

2шт.

5

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

'O' ring, 1 7/8 in. int. dia.

4шт.

6

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in.

6шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

6шт.

7

K916679

LEVER

1шт.

8

K916375

NO LONGER SERVICED

brake pedal, left-hand

1шт.

9

K916374

BRAKE

pedal, right-hand

1шт.

10

K916680

NO LONGER SERVICED

operating lever--hand brake

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--RH pedal 1/4"-28 NPT x .54" lg

1шт.

11

K11538

RING, SNAP

circlip, 1 1/2 in., ext.

1шт.

12

K38656

PLATE

locking plate pedal lock

1шт.

13

K600500

SCREW

bolt, 3/8 UNC, special pedal lock

1шт.

K626700

WASHER

spring washer, double coil pedal lock

1шт.

14

K606170

SCREW

grubscrew, 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

locknut, 7/16 UNC

1шт.

15

K11737

PIN

Mills pin, 3/8 x 2 1/4 in.

2шт.

16

K919706

PIN

2шт.

17

K624927

SPRING

return spring

2шт.

18

K607504

NUT

adjusting nut, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

19

K916682

NO LONGER SERVICED

brake rod 703005 onward

2шт.

K920370

NO LONGER SERVICED

brake rod, Serial Range: 700001-703004

2шт.

K920367

thrust block, Serial Range: 700001-703004

2шт.

K920368

spring, Serial Range: 700001-703004

2шт.

K920369

retainer, Serial Range: 700001-703004

4шт.

280136

NUT,3/8"-16, G8

700001 to 703004 3/8"-16, G8

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

locknut, 3/8 UNC 700001 to 703004

2шт.

K607102

NUT

slotted nut, 3/8 UNC, Serial Range: 700001-703004

2шт.

K19530

PIN

split pin, 3/32 x 1 in., Serial Range: 700001-703004

2шт.

20

K909587

LEVER

hand lever

1шт.

21

K623892

PIN

spring pin, 5/16 x 1 1/2 in.

1шт.

22

K912780

FORK

1шт.

23

K65784

WASHER

spherical washer

1шт.

24

K623895

PIN

spring pin, 5/16 x 2 in.

1шт.

25

K904356

PIN

--fork

1шт.

26

K623940

PIN

spring pin, 5/32 x 1 in.

1шт.

27

K909588

PAWL

1шт.

28

K14651

SPRING

1шт.

29

K14744

PIN

--lever

2шт.

30

K30833

LEVER

cam lever, left-hand

1шт.

K86343

LEVER

cam lever, right-hand

1шт.

31

K609425

LARGE PIN

cotter pin, 3/8 UNC

2шт.

K19472

WASHER

3/8 in.

2шт.

K11522

WASHER

shakeproof washer, 3/8 in.

2шт.

280136

NUT,3/8"-16, G8

2шт.

32

K85417

SEAL

dirt excluder

2шт.

33

K920438

BRAKE

camshaft, left-hand 703005 onward

1шт.

33

K920437

BRAKE

camshaft, right-hand 703005 onward

1шт.

33

K910406

BRAKE

camshaft, left-hand, Serial Range: 700001-703004

1шт.

33

K910405

BRAKE

camshaft, right-hand, Serial Range: 700001-703004

1шт.

34

K920432

ADAPTER

adaptor plate, left-hand 703005 onward

1шт.

K920431

ADAPTER

adaptor plate, right-hand 703005 onward

1шт.

35

K30835

BUSHING

bush--camshaft

6шт.

36

K921032

PIN

fulcrum pin 703005 onward

2шт.

K19497

WASHER

7/8 in. 703005 onward

2шт.

37

K34454

RING, SNAP

circlip, 7/8 in. ext. 703005 onward

2шт.

K920568

PIN

fulcrum pin, Serial Range: 700001-703004

2шт.

K19486

WASHER, LOCK

spring washer, 3/4 in., Serial Range: 700001-703004

2шт.

38

K920442

SHOE

brake shoe and lining assembly 703005 onward

4шт.

K920434

BRAKE SHOE

920442 703005 onward

1шт.

K920440

BRAKE

lining 920442 703005 onward

1шт.

K624014

RIVET

3/16 x 5/8 in. 920442 703005 onward

12шт.

K13048

RIVET

3/16 x 7/8 in. 920442 703005 onward

6шт.

39

K624930

SPRING

--brake shoes 703005 onward

4шт.

40

K920446

PIN

--brake shoes 703005 onward

8шт.

K11933

PIN

split pin, 1/8 x 5/8 in. 703005 onward

16шт.

41

K921829

BRAKE DRUM

703005 onward

1шт.

K962269

PADDING

brake lining (4) and rivet pack 703005 onward

1шт.

K921494

BRAKE SHOE

and lining assembly, 700001 to 703004 (supersedes 910408)

1шт.

K910409

brake shoe 921494, Serial Range: 700001-703004

1шт.

K921495

BRAKE

lining 921494 (supersedes, 700001 to 703004 910410)

1шт.

K624028

RIVET

7/32 x 1/2 in. 921494, 700001 to 703004 (replaces 624014)

4шт.

K624029

RIVET

7/32 x 7/8 in. 921494, 700001 to 703004 (replaces 13048)

4шт.

K63462

SPRING

--brake shoes, Serial Range: 700001-703004

4шт.

K917989

BRAKE

drum, Serial Range: 700001-703004

2шт.

K962168

KIT

brake lining (4) and rivet pack, Serial Range: 700001-703004

1шт.
