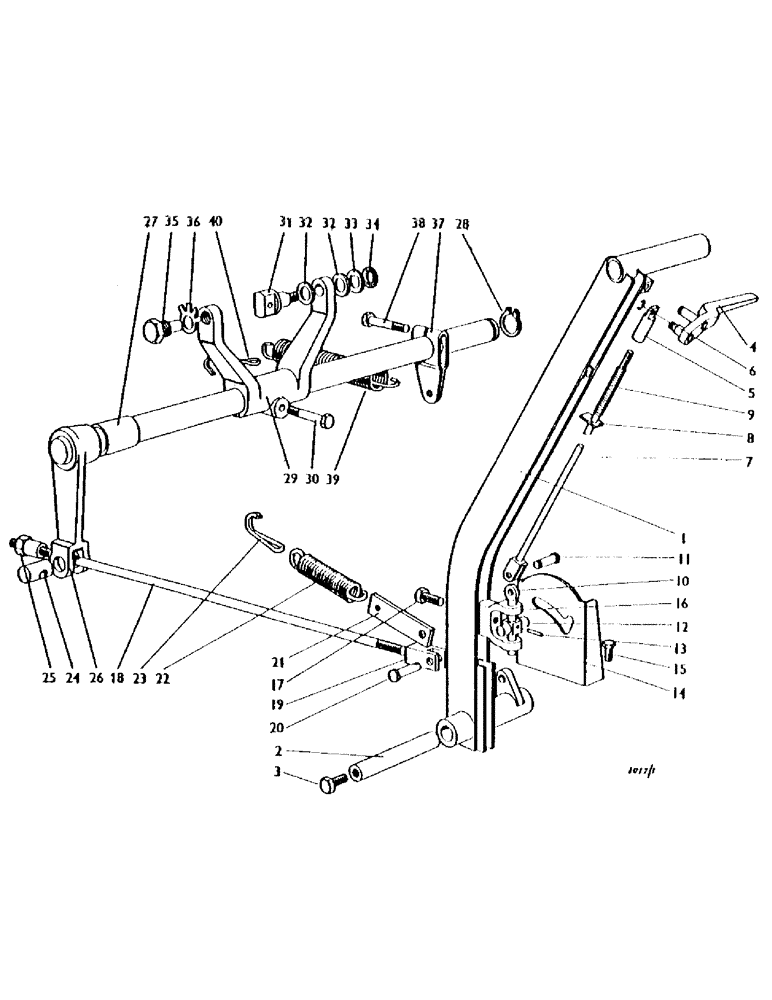

Запчасти Case IH 1200 (028) - CONTROLS, POWER TAKE-OFF, CLUTCH (03.1) - CLUTCH

1

K928615

NO LONGER SERVICED

hand lever 711471 onward

1шт.

K628081

PLUG

1шт.

1

K918893

NO LONGER SERVICED

hand lever, Serial Range: 700001-711470

1шт.

2

K916674

LUG

pivot shaft

1шт.

3

K600475

BOLT

3/8 UNC x 1 1/2 in. shaft to bracket (replaces 600405)

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in., Serial Range: shaft-bracket

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K19470

WASHER

1/4 in.

1шт.

4

K919403

LATCH

lever--latch

1шт.

5

K919395

ROD

yoke

1шт.

6

K621592

RING, SNAP

'E' clip, 7/22 in.

3шт.

7

K928613

ROD

--latch release (use with 928615)

1шт.

7

K919392

rod--latch release (use with 918893)

1шт.

8

K918897

SHIM

stop plate

1шт.

9

K625207

SPRING

1шт.

10

K918899

PLUNGER

1шт.

11

K919396

CLEVIS

pin

1шт.

12

K918901

LATCH

1шт.

13

K623931

SPLIT PIN/SAFETY PIN

spring pin, 1/8 x 11/16 in.

1шт.

14

K919401

LEVER

bracket, left-hand

1шт.

14

K919402

LEVER

bracket, right-hand

1шт.

15

K602803

BOLT

setscrew, 5/16 x 3/4 in., Serial Range: brackets-platform

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: brackets-platform

4шт.

K19471

WASHER

5/16 in., Serial Range: brackets-platform

4шт.

16

K918898

BRACKET

anchor bracket

1шт.

17

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. anchor bracket to lever

1шт.

K19481

SPRING WASHER

spring washer, 5/16 in. anchor, Serial Range: bracket-lever

1шт.

18

K918906

ROD

--lever to cross shaft

1шт.

19

K916677

FORK

end

1шт.

20

K14227

PIN

clevis pin, 3/8 x 1 1/16 in.

1шт.

K19528

PIN

split pin, 3/22 x 3/4 in. (replaces 19529)

1шт.

21

K924167

SPRING

anchor plate

1шт.

22

K624935

SPRING

1шт.

23

K916478

SPRING

hook

1шт.

24

K14744

PIN

1шт.

25

K607504

NUT

adjusting nut, 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

1шт.

26

K915996

ARM

and cross shaft

1шт.

27

K627170

BUSHING

spacer

1шт.

28

K11128

CIRCLIP

1 in. ext. dia.

1шт.

29

K915832

CLUTCH FORK

fork

1шт.

K19612

KEY

Woodruff No. 608

2шт.

30

K600406

BOLT

3/8 UNC x 1 3/4 in. fork to cross shaft

1шт.

280136

NUT,3/8"-16, G8

Fork to cross shaft 3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. fork to cross shaft

1шт.

31

K925323

TRUNNION,14.27mm OD x 57.15mm L

pin--fork, right-hand (replaces 915834)

1шт.

K26230

PIN, SPLIT (COTTER)

split pin, 3/16 x 1 3/8 in.

1шт.

32

K84749

GASKET

friction washer, 3/8 in.

2шт.

33

K925338

BEARING WASHER

washer, 3/8 in., special (replaces 84750)

1шт.

34

K626723

BELLEVILLE WASHER

Belleville washer

6шт.

232-1416

LOCK NUT,3/8"-16, GC

Nyloc nut, 3/8 UNC

1шт.

35

K915833

PIN

5/8 UNF--fork, left-hand

1шт.

36

K626399

WASHER

tabwasher (replaces 11590)

1шт.

37

K916477

LEVER

--return spring

1шт.

38

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in. lever to cross shaft

1шт.

280136

NUT,3/8"-16, G8

Lever to cross shaft 3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. lever to cross shaft

1шт.

K19472

WASHER

3/8 in. lever to cross shaft

1шт.

39

K624909

SPRING

1шт.

40

K916478

SPRING

hook--spring

1шт.
