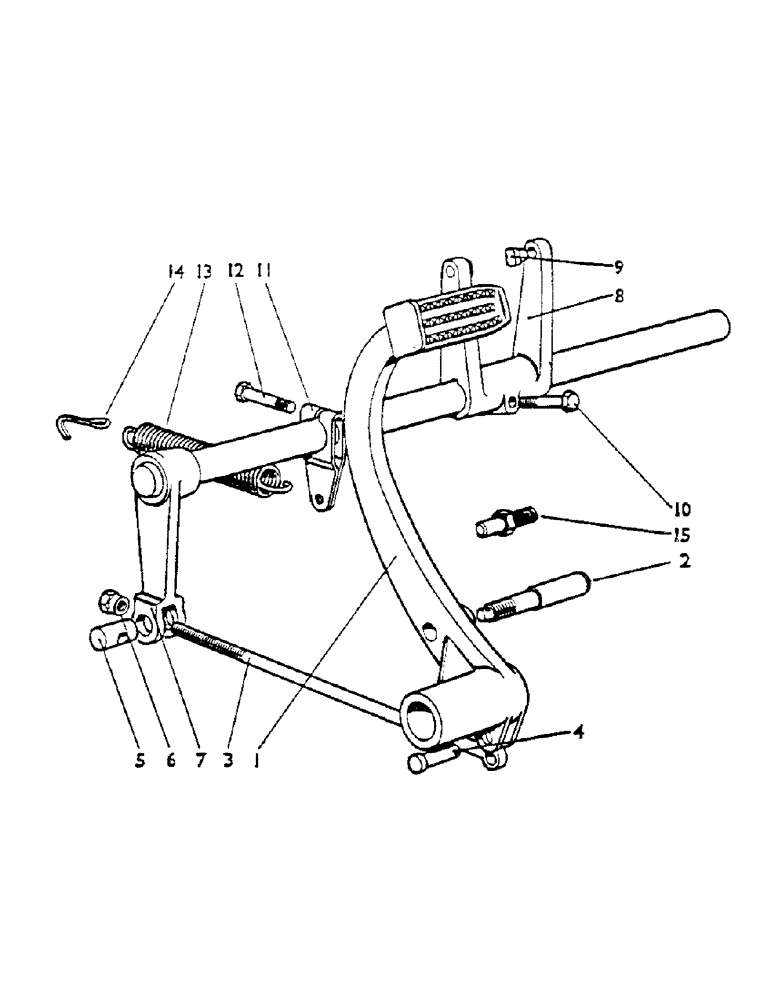

Запчасти Case IH 1200 (027) - CONTROLS, TRANSMISSION CLUTCH (03.1) - CLUTCH

1

K919426

CLUTCH

pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

2

K928116

PIN

--pedal 709085 onward

1шт.

2

K916660

PIN

--pedal, Serial Range: 700001-709084

1шт.

K607004

NUT

1/2 UNC

1шт.

K19484

LOCK WASHER

spring washer, 1/2 in.

1шт.

3

K916661

ROD

--pedal to cross shaft

1шт.

4

K69984

SPLIT PIN/SAFETY PIN

clevis pin, 3/8 x 1 5/16 in.

1шт.

K19528

PIN

split pin, 3/22 x 3/4 in. (replaces 19529)

1шт.

5

K14744

PIN

1шт.

6

K607504

NUT

adjusting nut, 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

1шт.

7

K915993

ARM

and cross shaft

1шт.

K19612

KEY

Woodruff No. 608

2шт.

8

K915831

TRANSMISSION

fork

1шт.

9

K84748

TRUNNION

pin--fork

2шт.

10

K600406

BOLT

3/8 UNC x 1 3/4 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

11

K916477

LEVER

--return spring

1шт.

12

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

K19472

WASHER

plain washer, 3/8 in.

1шт.

13

K624909

SPRING

1шт.

14

K916478

SPRING

hook--spring

1шт.

15

K921031

STOP

--clutch pedal

1шт.
