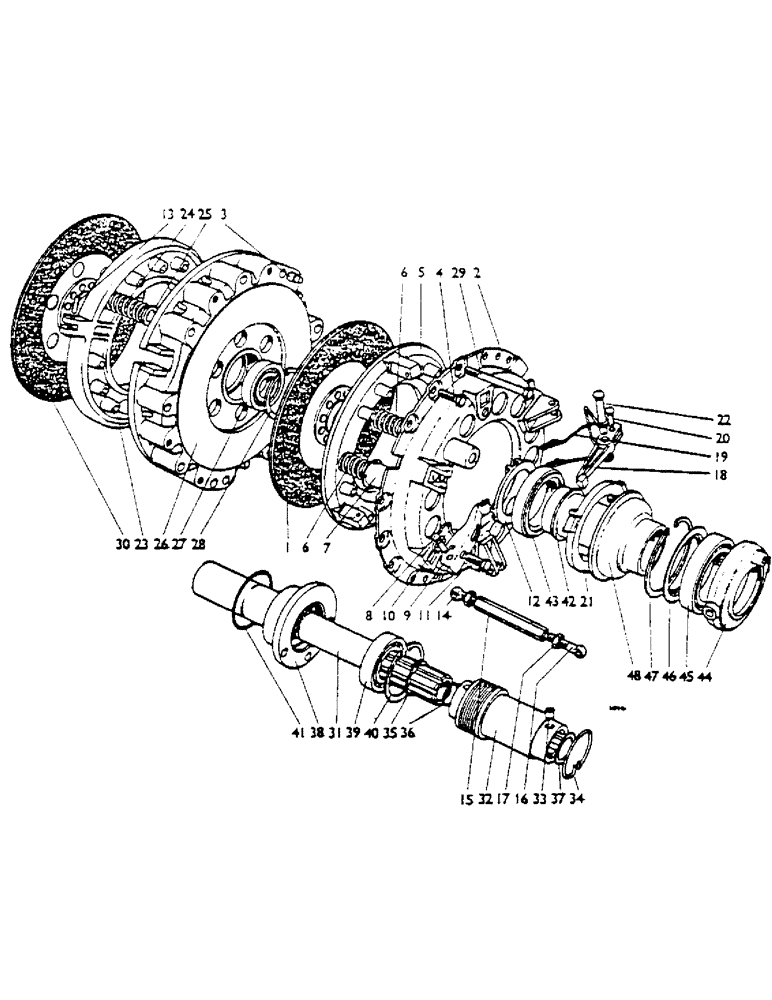

Запчасти Case IH 1200 (024) - DOUBLE CLUTCH (03.1) - CLUTCH

K929803

CLUTCH

assembly Engine 15122 onward

1шт.

K919860

CAP ASSY.

clutch assembly Engine, Serial Range: 10001-15121

1шт.

1

K919861

TRANSMISSION

driven plate--transmission 929803 919860

1шт.

K961832

FACING

s (2) and rivets (40) 929803 919860

1шт.

2

K962809

COVER

(supersedes 923875) 929803 919860

1шт.

3

K621837

PIN

dowel 929803 919860

2шт.

4

K612803

SCREW

setscrew, 5/16 UNF x 3/4 in. 929803 919860

6шт.

K19481

SPRING WASHER

spring washer, 5/16 in. 929803 919860

6шт.

5

K962805

PLATE

pressure plate 929803 919860 Engine 15122 onward

1шт.

5

K919852

PLATE

pressure plate 929803 919860 Engine, Serial Range: 10001-15121

1шт.

6

K625262

SPRING

thrust spring (violet/black) 929803 919860 Engine 15122 onward

12шт.

6

K625231

SPRING

thrust spring (dark blue/light, 929803 919860 Engine 10001 to 15121 green) (supersedes 625210)

12шт.

7

K919848

CUP

--spring 929803 919860 Engine 15122 onward

12шт.

7

K919848

CUP

--spring 929803 919860 Engine, Serial Range: 10001-15121

12шт.

8

K962806

PIN

--release lever 929803 919860 Engine 15122 onward

3шт.

8

K625945

PIN

--release lever 929803 919860 Engine, Serial Range: 10001-15121

3шт.

9

K962808

NO LONGER SERVICED

release lever 929803 919860 Engine 15122 onward

3шт.

9

K919851

LEVER

release lever 929803 919860 Engine, Serial Range: 10001-15121

3шт.

10

K962804

SPRING

--release lever 929803 919860 Engine 15122 onward

3шт.

10

K923989

SPRING

--release lever (use with, 929803 919860 Engine 10001 to 15121 923990) (s/s 919863)

3шт.

11

K923990

SCREW

adjusting screw, 3/8 UNF (use with, 929803 919860 Engine 10001 to 15121 923989) (s/s 919864)

3шт.

K617052

NUT

locknut, 3/8 UNF 929803 919860

3шт.

12

K962803

PLATE

--release lever 929803 919860 Engine 15122 onward

1шт.

K962807

PIN

split pin 929803 919860 Engine 15122 onward

3шт.

12

K919850

PLATE

--release lever 929803 919860 Engine, Serial Range: 10001-15121

1шт.

K19531

PIN

split pin, 3/22 x 1 1/4 in. 929803 919860 Engine, Serial Range: 10001-15121

3шт.

13

K621839

PIN

--PTO pressure plate (replaces, 929803 919860 621818)

3шт.

14

K923843

SCREW

eye bolt, 3/8 UNF, right-hand, 929803 919860 thread (replaces 919854)

3шт.

K617588

SPECIAL NUT

locknut, 3/8 UNF, right-hand thread, 929803 919860 (replaces 617051)

3шт.

15

K923844

TURNBUCKLE

(replaces 919855) 929803 919860

3шт.

16

K923842

SCREW

eye bolt, 3/8 UNF, left-hand thread, 929803 919860 (replaces 919835)

3шт.

17

K617282

SPECIAL NUT

locknut, 3/8 UNF, left-hand thread, 929803 919860 (replaces 617281)

3шт.

18

K923846

LEVER

release lever (with bush) (replaces, 929803 919860 919856)

3шт.

19

K919859

SPRING

--anti-rattle 929803 919860

3шт.

20

K625947

PIN

--release lever (replaces, 929803 919860 625946)

3шт.

K19526

PIN

split pin, 3/22 x 3/8 in. 929803 919860

3шт.

21

K919849

PLATE

--release lever 929803 919860

1шт.

K11263

PIN

split pin, 5/22 x 1 3/8 in. 929803 919860

3шт.

22

K625944

PIN

--release lever 929803 919860

3шт.

K19527

PIN

split pin, 3/22 x 1/2 in. 929803 919860

6шт.

23

K915829

PLATE

pressure plate--PTO (supersedes, 929803 919860 923845)

1шт.

24

K625209

SPRING

thrust spring (red)--PTO 929803 919860

12шт.

25

K626735

WASHER

insulating washer 929803 919860

12шт.

26

K915830

HOUSING

separator housing 929803 919860

1шт.

27

K620086

BEARING

ball bearing 929803 919860

1шт.

28

K13053

RING, SNAP

circlip, 72 mm int. 929803 919860

1шт.

29

K600220

BOLT

5/16 UNC x 3 3/4 in.

9шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

9шт.

30

K915827

CLUTCH & DISC ASSY

driven plate--PTO

1шт.

K962565

CLUTCH

facings (2) and rivets (26) (replaces 962052)

1шт.

31

K926344

CLUTCH

driveshaft 708742 onward

1шт.

31

K919643

CLUTCH

driveshaft, Serial Range: 700144-708741

1шт.

K926343

SPLINED COUPLING

muff coupling--12-speed 708742 onward

1шт.

32

K926478

COUPLING, BREAK AWAY

muff coupling--6-speed 708742 onward

1шт.

32

K919640

COUPLING, BREAK AWAY

muff coupling--6-speed, Serial Range: 700144-708741

1шт.

K919641

COUPLING, BREAK AWAY

muff coupling--12-speed, Serial Range: 700144-708741

1шт.

33

K919645

ARRESTER

plunger, Serial Range: 700144-708741

2шт.

34

K919644

CLIP

spring ring, Serial Range: 700144-708741

2шт.

K915835

clutch driveshaft order 919640/43/44/45, Serial Range: 700001-700143

1шт.

K917916

muff coupling order 919640/43/44/45, Serial Range: 700001-700143

1шт.

35

K12922

RING, SNAP

circlip, 1 3/4 in. ext.

2шт.

36

K623634

SEAL

ing ring, 1 1/8 in. int.

1шт.

38

K915841

SUPPORT

snout--thrust bearing carrier

1шт.

39

K620033

BALL

bearing

1шт.

40

K621430

CIRCLIP

75 mm int.

1шт.

41

K24865

O-RING

'O' ring, 3 3/8 in. int. dia.

1шт.

42

K915836

BEARING CARRIER,Clutch

thrust bearing carrier

1шт.

43

K620112

ROLLER

thrust bearing (replaces 19169)

1шт.

44

K915837

BEARING HOUSING

housing--release bearing

1шт.

K19587

FITTING

elbow, 1/8 BSP

1шт.

K926410

TUBE,0.122" ID x 0.187" OD

1шт.

K617956

NUT

1шт.

K622407

FERRULE

olive

1шт.

45

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

46

K84745

SEAL,88.01mm ID x 114.17mm OD x 0.56mm Thk

shield

1шт.

47

K621431

RING, SNAP

circlip, 4 1/2 in. int.

1шт.

48

K84740

THRUST PLATE

PTO

1шт.
