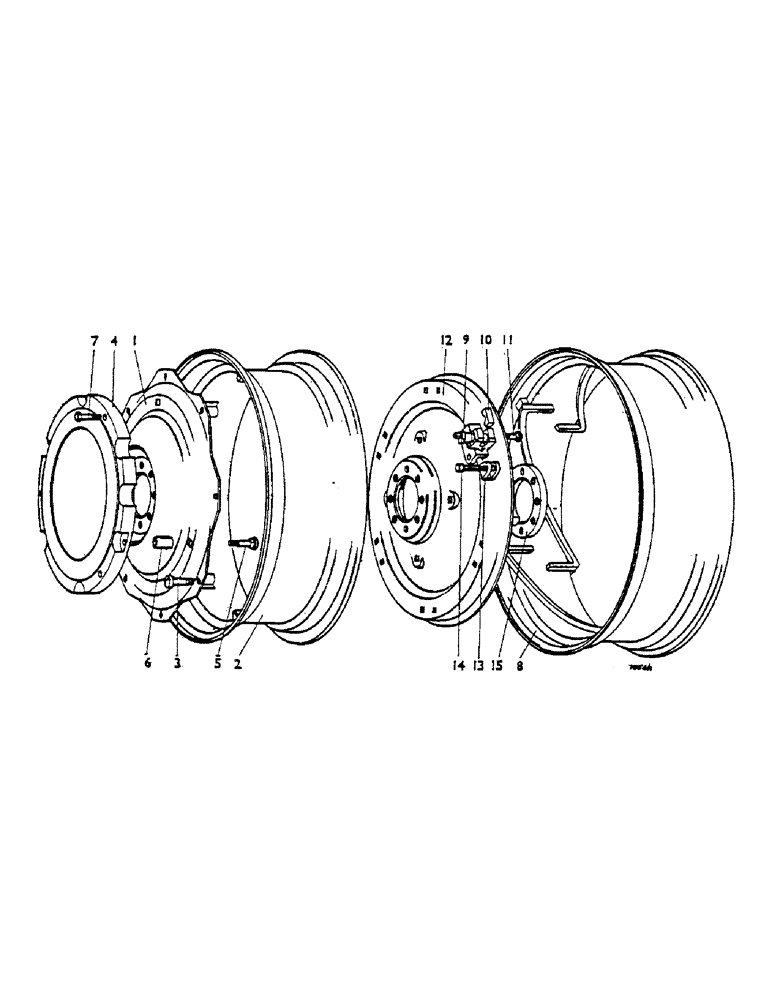

Запчасти Case IH 1200 (110) - REAR WHEELS AND BALLAST WEIGHTS (12) - CHASSIS

K916577

NO LONGER SERVICED

rear rim and centre assembly, W11 x 36 in. (fits 13.6/12 x 36 in. tyres)

2шт.

1

K916741

NO LONGER SERVICED

rear wheel centre (eight-bolt fixing)

1шт.

2

K916742

WHEEL

rear wheel rim 916577

1шт.

3

K611261

BOLT

rim bolt, 5/8 UNF x 2 7/8 in. 916577

8шт.

K19475

WASHER

5/8 in. 916577

8шт.

425-1110

NUT,5/8"-18, G5

916577 5/8"-18, G5

8шт.

K919449

NO LONGER SERVICED

rear rim and centre assembly, W11 x 38 in. (fits 12.4/11 x 38 in. tyres)

2шт.

1

K916741

NO LONGER SERVICED

rear wheel centre (eight-bolt, 919449 fixing)

1шт.

2

K920091

DISC, WHEEL

rear wheel rim 919449

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

rim bolt, 5/8 UNF x 2 7/8 in., 919449 (replaces 611261)

8шт.

K19475

WASHER

5/8 in. 919449

8шт.

425-1110

NUT,5/8"-18, G5

919449 5/8"-18, G5

8шт.

K916584

RIM

rear rim and centre assembly, DW12 x 30 in. (fits 16.9/14 x 30 in. tyres)

2шт.

1

K916745

BRACE

rear wheel centre 916584

1шт.

2

K916743

RIM

rear wheel rim 916584

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

rim bolt, 5/8 UNF x 2 7/8 in. 916584

6шт.

K19475

WASHER

5/8 in. 916584

6шт.

425-1110

NUT,5/8"-18, G5

916584 5/8"-18, G5

6шт.

K924485

RIM

rear wheel, W14 x 30 in. (fits, supersedes 916797 18.4/15 x 30 in. tyres)

2шт.

4

K86167

WEIGHT

ballast weight

4шт.

5

K690452

BOLT

coach bolt, 5/8 BSF x 2 7/8 in., U184 (21180) for wheels 916577 and, Serial Range: weight-wheels

6шт.

K19406

WHEEL NUT

5/8 BSF weight to wheels, U184 (21180) for wheels 916577 and

6шт.

K19485

WASHER

spring washer, 5/8 in. weight to, U184 (21180) for wheels 916577 and wheels

6шт.

6

K910181

BUSHING

distance piece weight to wheels, U184 (21180) for wheels 916577 and

6шт.

7

K19305

BOLT

5/8 BSF x 2 in. weight to, U184 (21180) for wheels 916577 and weight

6шт.

K19485

WASHER

spring washer, 5/8 in. weight to, U184 (21180) for wheels 916577 and weight

6шт.

K917333

NO LONGER SERVICED

rear rim and centre assembly (power-adjusted) W11 x 38 in. (fits 13.6/12 x 38 in. tyres)

2шт.

8

K917334

SPARE PART

rear wheel rim

1шт.

9

K918809

AXLE PIN

pin 917333

6шт.

10

K917342

BLOCK

917333

6шт.

11

K917343

NO LONGER SERVICED

bolt 917333

12шт.

K917344

NO LONGER SERVICED

lockwasher 917333

12шт.

K918808

NUT

917333

12шт.

12

K917335

NO LONGER SERVICED

rear wheel centre 917333

1шт.

13

K917337

STOP

917333

2шт.

14

K917338

STOP

screw--stop

2шт.

15

K917336

spacer--final driveshaft

2шт.

K921169

RIM

rear rim and centre assembly (power-adjusted), W14 x 30 in. (fits 18.4/15 x 30 in. tyres)

2шт.

K921201

RIM

rear wheel rim

1шт.

K917337

STOP

921169

2шт.

K917338

STOP

screw--stop 921169

2шт.

K917340

SUPPORT

bracket 921169

5шт.

K917339

PIN

eccentric pin 921169

5шт.

K917342

BLOCK

921169

5шт.

K917341

RING

snap ring 921169

1шт.

K917515

NO LONGER SERVICED

wheel centre 921169

1шт.

K601323

BOLT

921169

10шт.

K19485

WASHER

lockwasher 921169

10шт.

K607035

NUT

921169

10шт.

K928167

RIM

rear rim and centre assembly, W14 x 34 in. (fits 16.9/14 x 34 in. tyres)

2шт.

K917379

WHEEL

rear wheel centre

1шт.

K928166

NO LONGER SERVICED

rear wheel rim 928167

1шт.

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

rim bolt, 5/8 UNF x 2 7/8 in.

8шт.

K19475

WASHER

5/8 in. 928167

8шт.

425-1110

NUT,5/8"-18, G5

928167 5/8"-18, G5

8шт.

K923856

rear rim and centre assembly (power-adjusted), W14 x 38 in. (fits 15.5 x 38 in. tyres)

2шт.

K923857

COVER

rear wheel rim

1шт.

K918809

AXLE PIN

pin 923856

6шт.

K917342

BLOCK

923856

6шт.

K917343

NO LONGER SERVICED

bolt 923856

12шт.

K917344

NO LONGER SERVICED

lockwasher 923856

12шт.

K918808

NUT

923856

12шт.

K917335

NO LONGER SERVICED

rear wheel centre 923856

1шт.

K917337

STOP

923856

2шт.

K917338

STOP

screw--stop 923856

2шт.

K917336

spacer--final driveshaft 923856

2шт.
