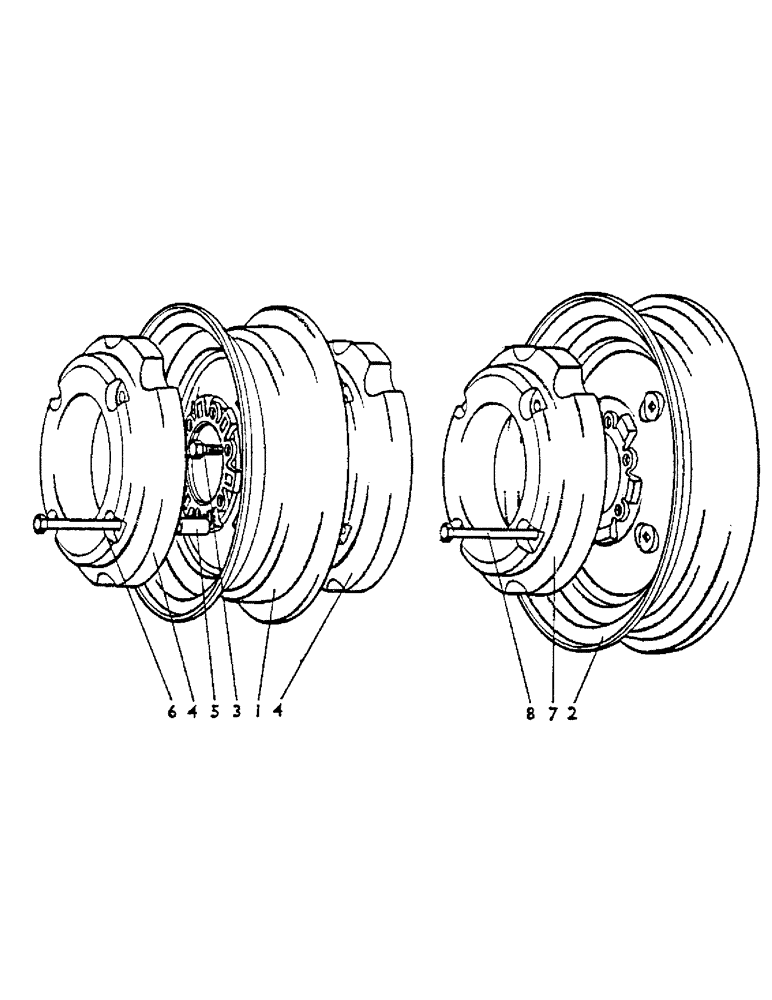

Запчасти Case IH 1200 (109) - FRONT WHEELS AND BALLAST WEIGHTS (12) - CHASSIS

1

K914312

NO LONGER SERVICED

front wheel, 5.50F x 16 in. (fits, standard duty 7.50 x 16 in. tyres)

2шт.

1

K921475

RIM

front wheel, 5.50F x 16 in. (fits, heavy duty 7.50 x 16 in. tyres)

2шт.

2

K919465

NO LONGER SERVICED

front wheel, 4.50E x 19 in. (fits 6.00 x 19 in. tyres)

2шт.

3

K600875

BOLT

wheel bolt, 1/2 UNC x 1 7/8 in.

12шт.

4

K909316

WEIGHT

ballast weight

4шт.

5

K909324

BUSHING

spacer tube U475 (909326) for wheels 914312

8шт.

6

K600831

BOLT

1/2 UNC x 7 1/2 in. U475 (909326) for wheels 914312

8шт.

K19484

LOCK WASHER

spring washer, 1/2 in. U475 (909326) for wheels 914312

8шт.

K607004

NUT

1/2 UNC U475 (909326) for wheels 914312

8шт.

7

K909316

WEIGHT

ballast weight U475 (909326) for wheels 914312

4шт.

8

K600829

BOLT

1/2 UNC x 6 3/4 in.

8шт.

K19484

LOCK WASHER

spring washer, 1/2 in. U427 (907796) for wheels 919465

8шт.

K607004

NUT

1/2 UNC U427 (907796) for wheels 919465

8шт.
