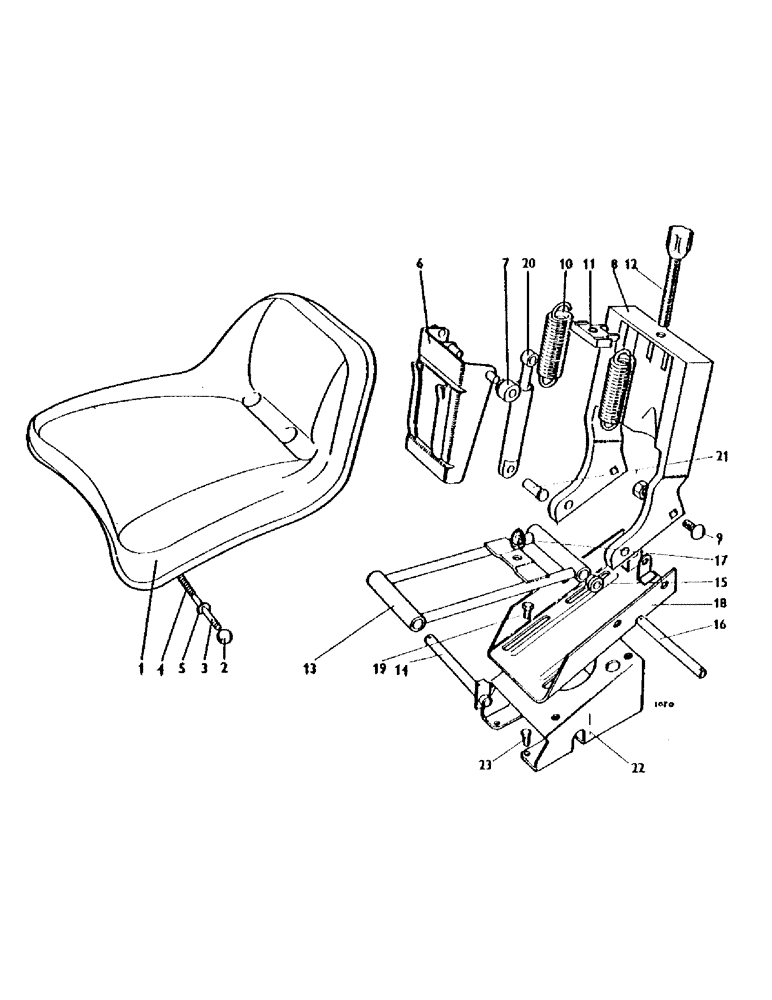

Запчасти Case IH 1200 (106) - SUPER COMFORT SUSPENSION SEAT, U1336, WITH HYDRAULIC DAMPER (12) - CHASSIS

K924463

NO LONGER SERVICED

seat and suspension assembly

1шт.

1

K925032

SEAT ASSY.

pan seat, cushion and cover 924463

1шт.

K962687

SEAT COVER

cover (supersedes 962516) 924463

1шт.

2

K962435

KNOB

--seat locking pin 924463

1шт.

3

K962440

STUD

locking pin 924463

1шт.

4

K962439

SPRING

924463

1шт.

5

K621592

RING, SNAP

'E' clip, 7/22 in. 924463

1шт.

K925033

NO LONGER SERVICED

seat suspension assembly 924463

1шт.

6

K962429

BEAM

support carrier 925033 924463

1шт.

7

K962432

ROLLER

nylon roller 925033 924463

2шт.

8

K962430

SPRING

frame 925033 924463

1шт.

9

K962443

SCREW

coach bolt, 10 mm x 1 in. frame to support 925033, 924463

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. frame to support 925033, 924463

2шт.

K962493

NUT

10 mm frame to support 925033, 924463

2шт.

10

K962437

SPRING

tension spring 925033, 924463

2шт.

11

K962442

BRACKET

--spring tensioner 925033 924463

1шт.

K19474

HARDWARE

washer, 1/2 in. 925033 924463

1шт.

K19528

PIN

split pin, 3/22 x 3/4 in. 925033 924463

1шт.

12

K962436

SCREW

tension screw and knob 925033 924463

1шт.

13

K962428

BEAM

suspension beam 925033 924463

1шт.

14

K962426

PIN

locating pin 925033 924463

1шт.

15

K962431

BUSHING

bush 925033 924463

4шт.

K19540

PIN, SPLIT (COTTER)

split pin, 5/22 x 7/8 in. 925033 924463

1шт.

16

K962441

PIN

pivot pin 925033 924463

1шт.

K962495

PIN

dowel 925033 924463

2шт.

17

K962434

STOP

rubber stop 925033 924463

1шт.

18

K962427

BRACKET

sliding support 925033 924463

1шт.

19

K602982

SCREW,3/8" - 16 x 3/4", Gr S

setscrew, 3/8 UNC x 3/4 in. support to bracket 925033, 924463

4шт.

K19472

WASHER

3/8 in. support to bracket 925033, 924463

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. support to bracket 925033, 924463

4шт.

20

K962438

DAMPER

hydraulic damper 925033 924463

1шт.

21

K962438

DAMPER

pin 925033 924463

1шт.

K962494

RING, SNAP

circlip 925033 924463

2шт.

22

K919599

SEAT SUPPORT

support bracket

1шт.

23

K602982

SCREW,3/8" - 16 x 3/4", Gr S

setscrew, 3/8 UNC x 3/4 in. bracket to axle frame

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. bracket to axle frame

4шт.

K628071

PLUG

1/4 in. dia.

3шт.
