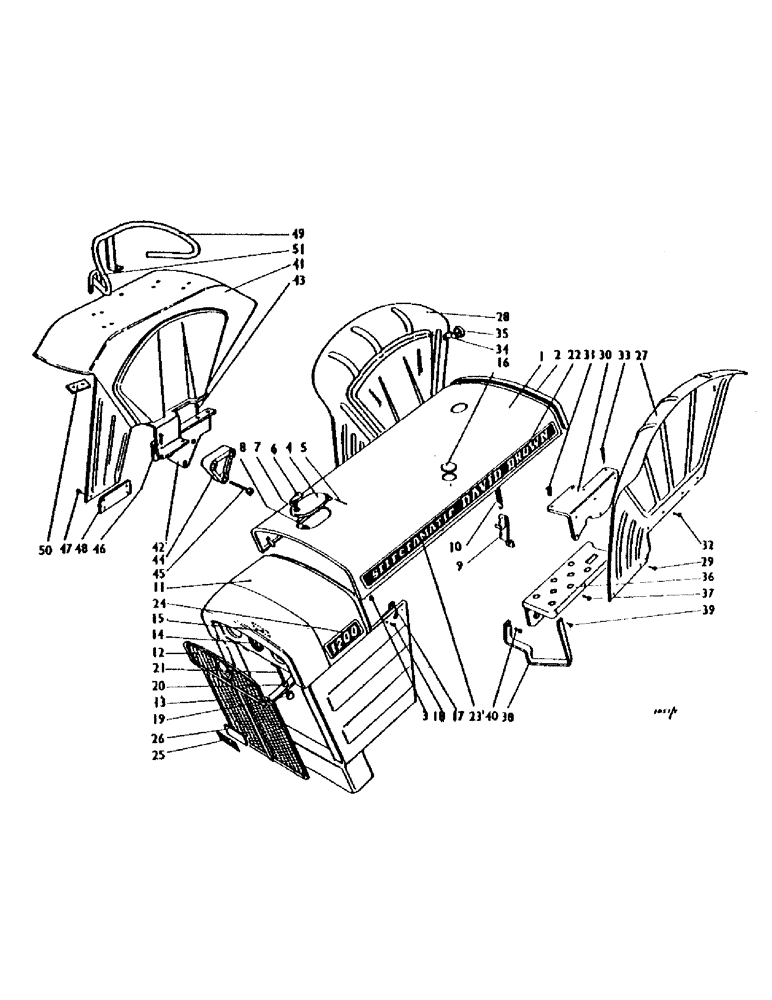

Запчасти Case IH 1200 (102) - BONNET AND FENDERS (12) - CHASSIS

1

K916589

GUARD

bonnet top assembly

1шт.

2

K915789

BEAD

ing 916589

1шт.

K624151

RIVET

1/8 x 1/8 in. 916589

9шт.

3

K916596

PLUG

rubber plug 916589

4шт.

4

K962015

COVER

hatch cover 916589

1шт.

5

K914557

SPRING

pin--hatch pivot 916589

1шт.

6

K917746

LEVER

--hatch fastener 916589 962158

1шт.

7

K917748

GROMMET

--lever 916589

1шт.

8

K917749

FASTENER

spring-hatch fastener

1шт.

K11405

RIVET

1/8 x 3/8 in. (replaces, 916589 19785)

2шт.

K19495

WASHER

1/8 in.

2шт.

9

K915791

GRIP

finger grip

2шт.

10

K624911

SPRING

2шт.

11

K962333

HOOD

bonnet front 705365 onward

1шт.

11

K962192

HOOD

bonnet front, Serial Range: 700001-705364

1шт.

12

K915871

GRILLE

louvre plate side-mounted headlamps

1шт.

K915733

BUSHING

retaining bush--louvre plate side-mounted headlamps

6шт.

K627999

PLUG

--bonnet side integral headlamps

2шт.

K914804

PLUG

--bonnet nose integral headlamps

4шт.

K921172

SHIM

grommet--bonnet top location

2шт.

13

K923940

GUARD

louvre (supersedes 915697)

1шт.

14

K902243

NO LONGER SERVICED

bonnet motif

1шт.

15

K916776

SPRING

retainer--motif

1шт.

16

K914347

INSERT

--bonnet top

1шт.

17

K915758

LOCK

--bonnet, right-hand

1шт.

17

K915759

LOCK

--bonnet, left-hand

1шт.

18

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in.

4шт.

K626310

WASHER

3/16 in.

4шт.

K626340

RING

spring washer, 3/16 in.

4шт.

K617080

NUT

No. 10 UNF

4шт.

19

K915799

RUBBER

packing--lower

4шт.

20

K915800

MISC PACKAGING

packing--upper

4шт.

K626686

WASHER

1/2 in. (replaces 19474)

4шт.

K915801

CLEVIS PIN

nut 5/16 UNC, special

4шт.

21

K608128

STUD

5/16 UNC x 1 3/8, Serial Range: in.--bonnet-frame

4шт.

22

K962152

PRODUCT GRAPHIC

transfer, 'David Brown'--left-hand

1шт.

22

K962153

PRODUCT GRAPHIC

transfer, 'David Brown'--right-hand

1шт.

23

K962150

DECAL

transfer, 'Selectamatic'--left-hand

1шт.

23

K962151

PRODUCT GRAPHIC

transfer, 'Selectamatic'--right-hand

1шт.

24

K962148

PRODUCT GRAPHIC

transfer, '1200'--left-hand

1шт.

24

K962149

PRODUCT GRAPHIC

transfer, '1200'--right-hand

1шт.

25

K917086

DECAL

transfer, 'Livedrive--6-speed'

1шт.

25

K917087

transfer, 'Livedrive--12-speed'

1шт.

26

K917093

BASE

plate

1шт.

K14416

NUT

push-on fix

2шт.

27

K916511

FENDER

shell fender--left-hand

1шт.

28

K916508

FENDER

shell fender--right-hand

1шт.

K916504

FAN

fender U.S.A. only

2шт.

29

K602733

SCREW

setscrew, 1/4 UNC x 5/8 in. fenders to (replaces 602702) footplates (replaces 19480)

4шт.

K626341

SPRING WASHER

spring washer, 1/4 in. fenders to (replaces 602702) footplates (replaces 19480)

4шт.

30

K916514

SUPPORT

mounting bracket--left-hand

1шт.

30

K916513

SUPPORT

mounting bracket--right-hand

1шт.

31

K603104

SCREW

setscrew, 1/2 UNC x 1 in. mounting bracket to axle case

4шт.

K19484

LOCK WASHER

spring washer, 1/2 in. mounting bracket to axle case

4шт.

32

K602846

SCREW,5/16" - 18 x 5/8", Gr S

setscrew, 5/16 UNC x 5/8 in. fenders to mounting brackets

6шт.

33

K600322

BOLT

5/16 UNC x 2 1/2 in. fenders to mounting brackets

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC fenders to mounting brackets

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. fenders to mounting brackets

10шт.

34

K907214

NO LONGER SERVICED

bracket--reflector

2шт.

K627711

PLUG

rubber plug, 17/22 in.

1шт.

K627712

PLUG

rubber plug, 5/16 in.

1шт.

35

K66892

REFLECTOR

2шт.

K627713

PLUG

rubber plug, 7/22 in. dia.

4шт.

K624150

RIVET

special

2шт.

36

K916524

FRAME

platform--right-hand agricultural rear fenders

1шт.

36

K918889

frame platform--left-hand agricultural rear fenders

1шт.

36

K922646

FRAME

platform--right-hand industrial rear fenders

1шт.

36

K922764

FRAME

platform--left-hand industrial rear fenders

1шт.

37

K603003

SCREW

setscrew, 7/16 UNC x 1 in., Serial Range: platforms-frame

11шт.

K19483

SPRING WASHER

spring washer, 7/16 in., Serial Range: platforms-frame

12шт.

38

K919715

STEP

stirrup

1шт.

39

K602803

BOLT

setscrew, 5/16 UNC x 3/4 in. stirrup to left-hand platform

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. stirrup to left-hand platform

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC stirrup to left-hand platform

2шт.

40

K603005

SCREW

setscrew, 7/16 UNC x 1 1/4 in. stirrup to left-hand platform (replaces 603004)

1шт.

K19483

SPRING WASHER

spring washer, 7/16 in. stirrup to left-hand platform

1шт.

K19473

WASHER

7/16 in. (replaces 19473)

1шт.

K940513

FENDER

full fender, left-hand, (U1357)

1шт.

41

K940514

FENDER

full fender, right-hand, (U1357)

1шт.

42

K926997

SUPPORT

bracket, full fenders (U1357)

2шт.

43

K603141

SCREW

setscrew, 1/2 UNC x 1 1/4 in., full fenders (U1357)

8шт.

K626345

LOCK WASHER

spring washer, 1/2 in., full fenders (U1357)

8шт.

44

K921932

BLOCK

packing, full fenders (U1357)

2шт.

45

K601324

BOLT

5/8 UNC x 3 3/4 in., full fenders (U1357)

6шт.

K19485

WASHER

spring washer, 5/8 in., full fenders (U1357)

6шт.

46

K603141

SCREW

setscrew, 1/2 UNC x 1 1/4 in., full fenders (U1357)

4шт.

K626345

LOCK WASHER

spring washer, 1/2 in., full fenders (U1357)

4шт.

47

K602733

SCREW

setscrew, 1/4 UNC x 5/8 in. fender and plates to footplates, full fenders (U1357)

8шт.

K626341

SPRING WASHER

spring washer, 1/4 in. fender and plates to footplates, full fenders (U1357)

8шт.

K607043

NUT

1/4 UNC fender and plates to footplates, full fenders (U1357)

4шт.

48

K926999

PLATE

extension plate, full fenders (U1357)

2шт.

49

K913952

SEAT

rail U1313 (925859), full fenders (U1357)

2шт.

50

K914525

CLAMP

plate U1313 (925859), full fenders (U1357)

8шт.

51

K603880

BOLT

'U' bolt, 1/4 UNC U1313 (925859), full fenders (U1357)

8шт.

K626341

SPRING WASHER

spring washer, 1/4 in. U1313 (925859), full fenders (U1357)

16шт.

K607043

NUT

1/4 UNC U1313 (925859), full fenders (U1357)

16шт.

K627713

PLUG

7/22 in. dia.--fender and fender-seat holes, full fenders (U1357)

11шт.

K627711

PLUG

17/22 in. dia., full fenders (U1357)

2шт.

INDUSTRIAL REAR FENDERS (U1357)

1шт.

K924657

rear fender--right-hand U1193 (922377), industrial rear fenders

1шт.

K924656

rear fender--left-hand U1193 (922377), industrial rear fenders

1шт.

K627713

PLUG

U1193 (922377), industrial rear fenders

17шт.

K602733

SCREW

setscrew, 1/4 UNC x 5/8, U1193 (922377) in.--fenders to platforms, industrial rear fenders

4шт.

K921471

distance piece fenders to rear axle, U1193 (922377) case, industrial rear fenders

2шт.

K600883

BOLT

1/2 UNC x 2 3/8 in. fenders, U1193 (922377) to rear axle case, industrial rear fenders

4шт.

K626345

LOCK WASHER

spring washer, 1/2 in. fenders to, U1193 (922377) rear axle case, industrial rear fenders

12шт.

K916305

BRACKET

reflector bracket--right-hand, industrial rear fenders

1шт.

K916304

BRACKET

reflector bracket--left-hand, industrial rear fenders

1шт.

K603924

SCREW

1/4 UNC x 1/2 in., industrial rear fenders

4шт.

K607043

NUT

1/4 UNC, industrial rear fenders

4шт.

K626341

SPRING WASHER

spring washer, 1/4 in., industrial rear fenders

4шт.

K24589

GROMMET

5/8 in., industrial rear fenders

2шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

3/8 in., industrial rear fenders

2шт.
