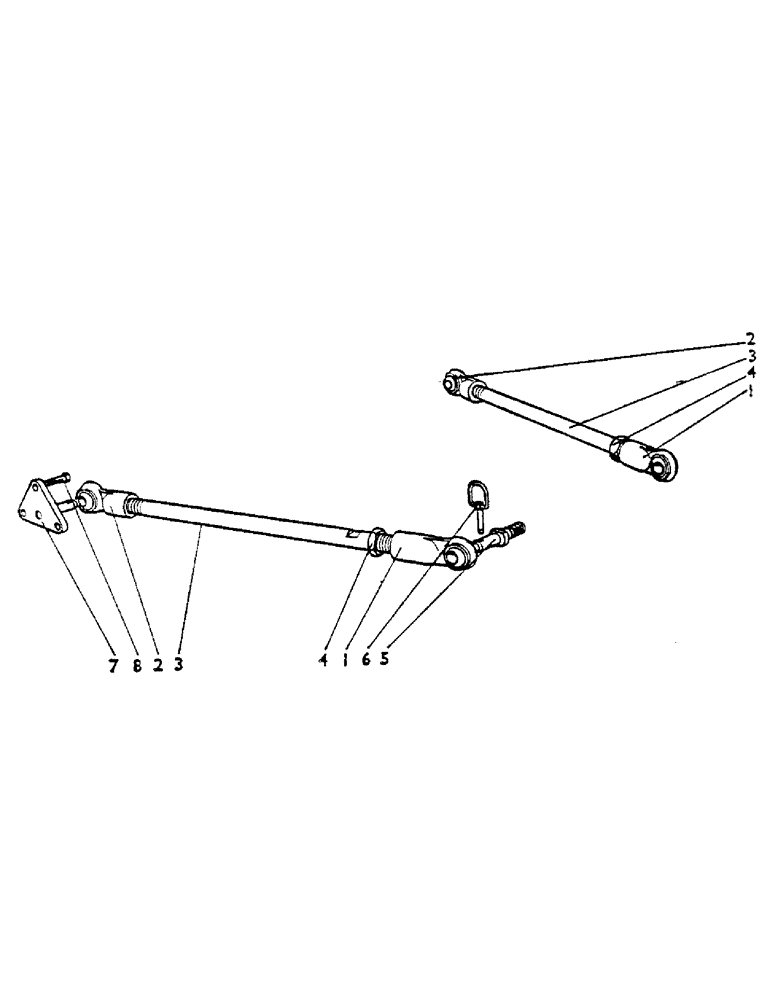

Запчасти Case IH 1200 (069) - LINKAGE STABILISER, U947, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K912766

STABILIZER

stabiliser bar (complete)

2шт.

1

K901821

BALL

housing--rear 912766

1шт.

2

K901818

PIVOT

ball housing--front 912766

1шт.

3

K901815

SCREW,21-1/4mm

ed bar 912766

1шт.

4

K11569

NUT

locknut, 1 in. BSF 912766

1шт.

5

K907008

PIN

--lower link

2шт.

280954

NUT,3/4"-10, G5

3/4 UNC

2шт.

K19486

WASHER, LOCK

spring washer, 3/4 in.

2шт.

6

K920359

PIN

linch pin and ring

4шт.

7

K919668

PLATE

support plate

2шт.

8

K603305

BOLT

setscrew, 5/8 UNC x 1 3/8 in. support plates to spur reduction

6шт.

K19485

WASHER

spring washer, 5/8 in. support plates to spur reduction

6шт.
