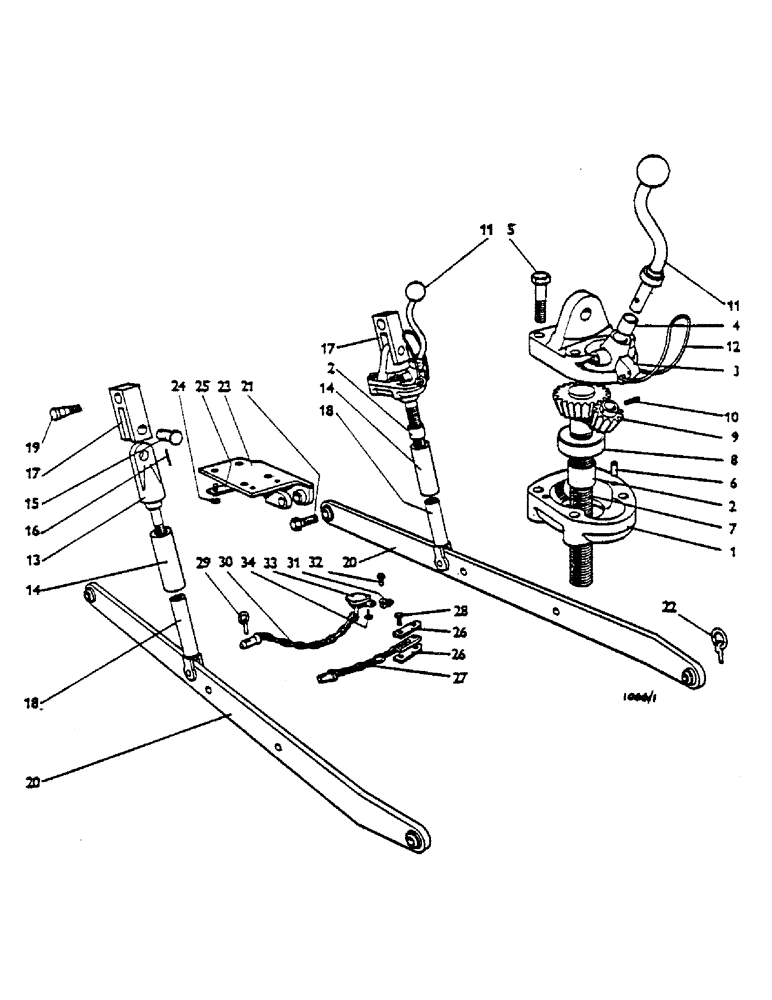

Запчасти Case IH 1200 (066) - LIFT RODS AND LOWER LINKS (07) - HYDRAULIC SYSTEM

K929333

LEVER

levelling lever assembly 714791 onward

1шт.

K919760

NO LONGER SERVICED

leveling lever assembly, Serial Range: 707765-714790

1шт.

1

K962690

gear housing (with bush) 929333, 714791 onward 919760

1шт.

1

K962446

GEAR

housing (with bush and tube), Serial Range: 707765-714790

1шт.

2

K621339

BUSHING

bush (962690) 929333 919760 714791 onward

1шт.

2

K621339

BUSHING

bush (962446) 929333 919760, Serial Range: 707765-714790

1шт.

3

K962691

COVER

cap--gear housing (with bushes), 714791 onward

1шт.

3

K962445

CAP

--gear housing (with bushes and dowels), Serial Range: 707765-714790

1шт.

4

K621340

BUSHING

bush (962691) 714791 onward

2шт.

4

K621340

BUSHING

bush (962445), Serial Range: 707765-714790

2шт.

5

K600405

BOLT

3/8 UNC x 1 5/8 in. cap to, 707675 onward gear housing 929333 919760

2шт.

K600407

BOLT

3/8 UNC x 1 7/8 in. cap to, 707675 onward gear housing 929333 919760

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. cap to gear, 707675 onward housing 929333 919760

4шт.

6

K32063

PIN

dowel, 3/16 x 1/2 in. cap to gear, 707675 onward housing 929333 919760

2шт.

7

K924725

SHAFT

levelling screw 929333 919760 707675 onward

1шт.

8

K19187

THRUST BEARING

929333 919760 707675 onward

1шт.

9

K919769

GEAR

bevel pinion (11 teeth) 929333, 707675 onward 919760

1шт.

10

K623741

SPRING

pin, 5/32 x 3/4 in. 929333, 707675 onward 919760

1шт.

11

K919761

LEVER

hand lever and knob 929333 919760 707675 onward

1шт.

K621790

RING, SNAP

circlip, 1/2 in. ext. 929333 919760 707675 onward

1шт.

K919763

BUTTON

knob 929333 919760 707675 onward

1шт.

12

K924723

SPRING

latch 929333 919760 707675 onward

1шт.

K921917

NO LONGER SERVICED

lift rod assembly 707675 onward

1шт.

13

K962291

SCREW

adjustment screw 921917 707675 onward

1шт.

14

K907946

TUBE

outer tube 921917 707675 onward

1шт.

15

K928907

NO LONGER SERVICED

pivot pin 921917 707675 onward

1шт.

16

K623740

SPLIT PIN/SAFETY PIN

spring pin, 3/16 x 7/8 in. 921917 707675 onward

1шт.

17

K921914

FORK

end 921917 707675 onward

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 921917 707675 onward 1/4"-28 NPT x .54" lg

2шт.

K918723

NUT

adjusting nut 921917 707675 onward

1шт.

K921918

NO LONGER SERVICED

levelling lever assembly, Serial Range: 703530-707674

1шт.

K918721

NO LONGER SERVICED

levelling lever assembly, Serial Range: 700001-703529

1шт.

K962008

gear housing (with bushes and tube) 921918 918721

1шт.

K621340

BUSHING

bush 962008 921918 918721

1шт.

K621339

BUSHING

bush 962008 921918 918721

1шт.

K962290

CAP

--gear housing (with bush), 703530 to 707674 921918 918721

1шт.

K621340

BUSHING

bush (962290) 921918 918721, Serial Range: 703530-707674

1шт.

K962171

NO LONGER SERVICED

cap--gear housing (with bushes), 700001 to 703529 921918 918721

1шт.

K691363

BUSHING

tension bush 962171 921918 918721, Serial Range: 700001-703529

1шт.

K621340

BUSHING

bush 962171 921918 918721, Serial Range: 700001-703529

1шт.

K603005

SCREW

setscrew, 7/16 UNC x 1 1/4 in. 921918 918721

3шт.

K19483

SPRING WASHER

spring washer, 7/16 in. 921918 918721

3шт.

K907946

TUBE

outer tube 921918 918721

1шт.

K918727

SCREW

levelling screw 921918 918721

1шт.

K11483

BALL

steel ball, 3/16 in. 921918 918721

1шт.

K625128

VALVE SPRING

spring 921918 918721

1шт.

K19187

THRUST BEARING

921918 918721

1шт.

K901951

GEAR

spur pinion 921918 918721

1шт.

K907046

NO LONGER SERVICED

hand lever and shield 921918 918721

1шт.

K623741

SPRING

pin 921918 918721

1шт.

K921913

PIN

pivot pin 921918 918721, Serial Range: 703530-707674

1шт.

K921914

FORK

end 921918 918721, Serial Range: 703530-707674

1шт.

K901962

PIN

pivot pin 921918 918721, Serial Range: 700001-703529

1шт.

K901960

FORK

end 921918 918721, Serial Range: 700001-703529

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 921918 918721 1/4"-28 NPT x .54" lg

3шт.

K918723

NUT

adjusting nut 921918 918721

1шт.

K921917

NO LONGER SERVICED

lift rod assembly, Serial Range: 703530-707674

1шт.

K918722

NO LONGER SERVICED

lift rod assembly, Serial Range: 700001-703529

1шт.

K962291

SCREW

adjustment screw 921917 918722, Serial Range: 703530-707674

1шт.

K962009

NO LONGER SERVICED

adjustment screw 921917 918722, Serial Range: 700001-703529

1шт.

K691363

BUSHING

tension bush 921917 918722

1шт.

K907946

TUBE

outer tube 921917 918722

1шт.

K921913

PIN

pivot pin 921917 918722, Serial Range: 703530-707674

1шт.

K921914

FORK

end 921917 918722, Serial Range: 703530-707674

1шт.

K901962

PIN

pivot pin 921917 918722, Serial Range: 700001-703529

1шт.

K901960

FORK

end 921917 918722, Serial Range: 700001-703529

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 921917 918722 1/4"-28 NPT x .54" lg

2шт.

K918723

NUT

adjusting nut 921917 918722

1шт.

18

K921912

ROD

adjusting nut, slotted, left-hand U1120 (918341) (optional equipment)

1шт.

18

K922094

ROD

adjusting nut, slotted, right-hand U1120 (918341) (optional equipment)

1шт.

K19476

WASHER

3/4 in. U1120 (918341) (optional equipment)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF U1120 (918341) (Optional equipment) 1/4"-28 NPT x .54" lg

2шт.

19

K914191

PIN

pivot pin lift arm

2шт.

K607446

NUT

Cleveloc nut, 3/4 UNC lift arm

2шт.

20

K918720

LINK

lower link

2шт.

21

K601931

BOLT

1 1/8 UNC x 4 3/4 in.

2шт.

K607449

NUT

Cleveloc nut, 1 1/8 UNC

2шт.

22

K920359

PIN

linch pin and ring

2шт.

K918600

BRACKET

hitch bracket, left-hand

1шт.

23

K918604

BRACKET

hitch bracket, right-hand

1шт.

24

K601410

BOLT

3/4 UNC x 3 in. brackets to axle case

8шт.

25

K913121

WASHER

tabwasher brackets to axle case

4шт.

K929720

NO LONGER SERVICED

check chain assembly (replaces, 706230 onward 924020)

2шт.

26

K924022

PLATE

929720 706230 onward

2шт.

27

K929721

CHAIN (AG)

check chain 929720 (replaces, 706230 onward 924019)

1шт.

28

K600804

BOLT

1/2 UNC x 1 3/4 in. 929720, 706230 onward (replaces 600885)

2шт.

K607462

NUT

Cleveloc nut, 1/2 UNC 929720 706230 onward

2шт.

29

K915678

PIN

linch pin and ring 929720 706230 onward

2шт.

29

K915678

PIN

linch pin and ring, Serial Range: 700001-706229

2шт.

30

K918730

CHAIN (AG)

check chain, Serial Range: 700001-706229

2шт.

31

K907647

STIRRUP

shackle, Serial Range: 700001-706229

2шт.

32

K600406

BOLT

3/8 UNC x 1 3/4 in., Serial Range: 700001-706229

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

locknut, 3/8 UNC 700001 to 706229

4шт.

33

K914134

BRACKET

anchor bracket, Serial Range: 700001-706229

1шт.

K916943

BRACKET

anchor bracket--pick-up hitch, Serial Range: 700001-706229

1шт.

34

K603042

SCREW

setscrew, 7/16 UNC x 1 5/16 in., 700001 to 706229 special

3шт.
