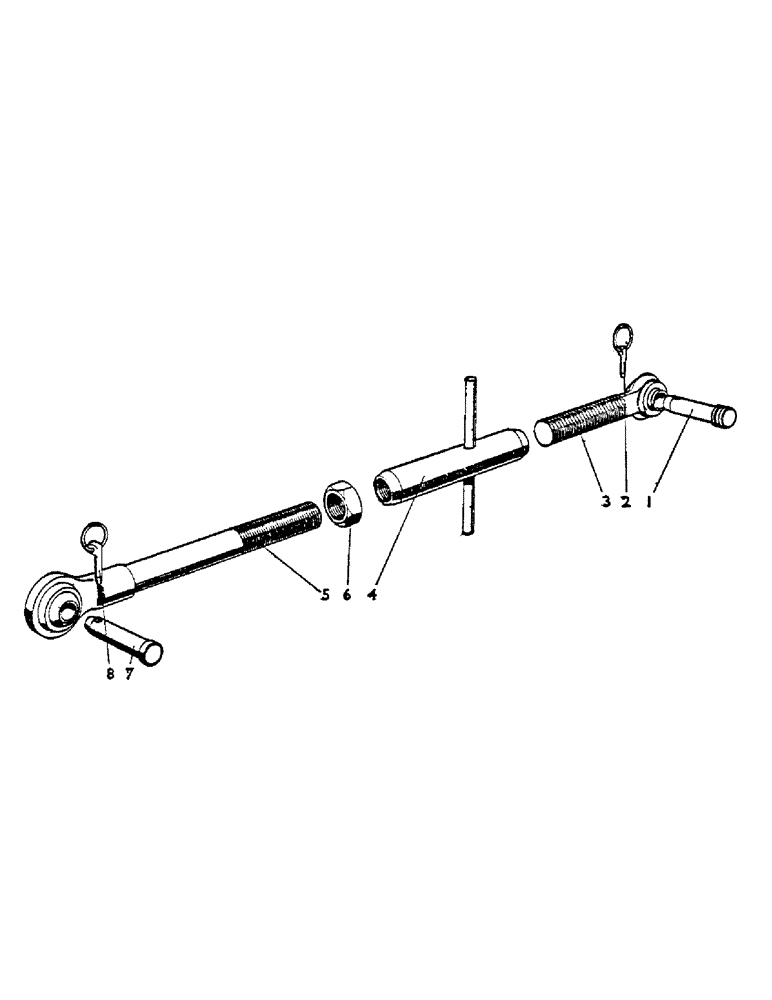

Запчасти Case IH 1200 (065) - TOP LINK (07) - HYDRAULIC SYSTEM

1

K919725

PIN,19.05mm OD x 111.13mm L

link pin (non-adjustable sensing unit)

1шт.

1

K920695

LINK

pin (adjustable sensing unit)

1шт.

2

K66408

PIN

linch pin and ring

1шт.

K962274

NO LONGER SERVICED

top link assembly 703305 onward

1шт.

K920798

BALL

screw and housing, 8 in.--front, 703305 onward 962274

1шт.

K19448

LOCK NUT

locknut, 1 1/4 BSF, right-hand, 703305 onward thread 962274

1шт.

K920800

TURNBUCKLE

962274 703305 onward

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 962274 703305 onward 1/4"-28 NPT x .54" lg

1шт.

K920804

NO LONGER SERVICED

screw and housing, 15 in.--rear, 703305 onward 962274

1шт.

top link assembly, Serial Range: 700001-703304

1шт.

3

K919722

NO LONGER SERVICED

screw and housing, 8 in.--front, 700001 to 703304 961924

1шт.

4

K919351

NO LONGER SERVICED

turnbuckle 961924, Serial Range: 700001-703304

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 961924 700001 to 703304 1/4"-28 NPT x .54" lg

1шт.

5

K919558

SCREW

and housing, 16 1/2 in.--rear, 700001 to 703304 961924

1шт.

6

K623308

NUT

locknut, 1 1/4 BSF, left-hand, 700001 to 703304 thread 961924

1шт.

7

K65690

HITCH PIN

link pin (category 2)

1шт.

8

K920359

PIN

linch pin and ring

1шт.
