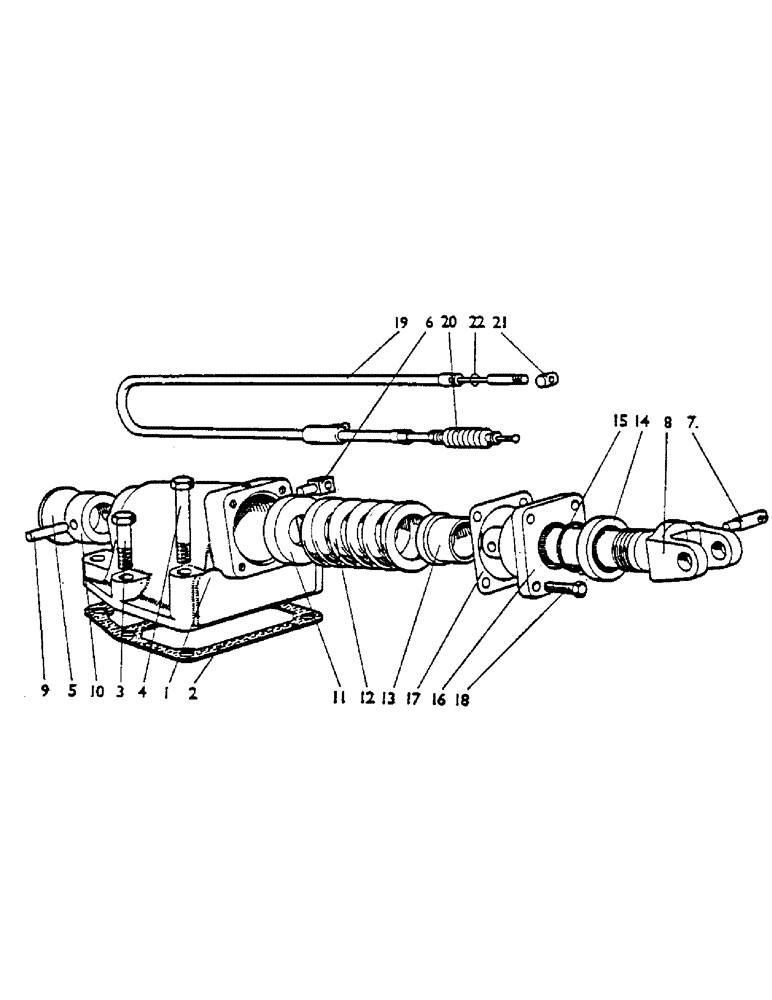

Запчасти Case IH 1200 (064) - SENSING UNIT, NON-ADJUSTABLE (07) - HYDRAULIC SYSTEM

1

K915092

SPRING

housing

1шт.

2

K926451

GASKET,0.56mm Thk

(supersedes 924868)

1шт.

3

K600805

BOLT

1/2 UNC x 1 7/8 in.

4шт.

4

K600815

BOLT

1/2 UNC x 3 1/4 in.

2шт.

K19484

LOCK WASHER

spring washer, 1/2 in.

6шт.

5

K623813

PLUG

welch plug, 2 3/8 in. dia.

1шт.

6

K912371

CABLE

support--outer

1шт.

7

K913852

LARGE PIN

cable support--inner

1шт.

8

K919726

SHAFT

1шт.

9

K915117

PIN

retaining pin

1шт.

10

K915266

COLLAR

1шт.

11

K915101

WASHER

thrust washer, .375 in. alternatives

1шт.

11

K915112

WASHER

thrust washer, .355 in. alternatives

1шт.

11

K915113

WASHER

thrust washer, .365 in. alternatives

1шт.

11

K915114

WASHER

thrust washer, .385 in. alternatives

1шт.

11

K915115

WASHER

thrust washer, .395 in. alternatives

1шт.

11

K915116

WASHER

thrust washer, .405 in. alternatives

1шт.

12

K915103

SPRING

1шт.

13

K915259

SLEEVE

1шт.

14

K915260

BUSHING

distance piece

1шт.

15

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

'O' ring, 1 7/8 in. int. dia.

1шт.

16

K915261

FLANGE

end plate

1шт.

18

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in.

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

4шт.

19

K962897

CABLE

assembly (supersedes 915052)

1шт.

20

K911970

BOOT

dirt excluder (replaces 906182) 962897

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 962897 1/4"-28 NPT x .54" lg

1шт.

21

K915053

FITTING

nipple

1шт.

K617080

NUT

No. 10 UNF (replaces 617049)

2шт.

22

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

'O' ring, 1/4 in. int. dia. (replaces 14658)

1шт.
