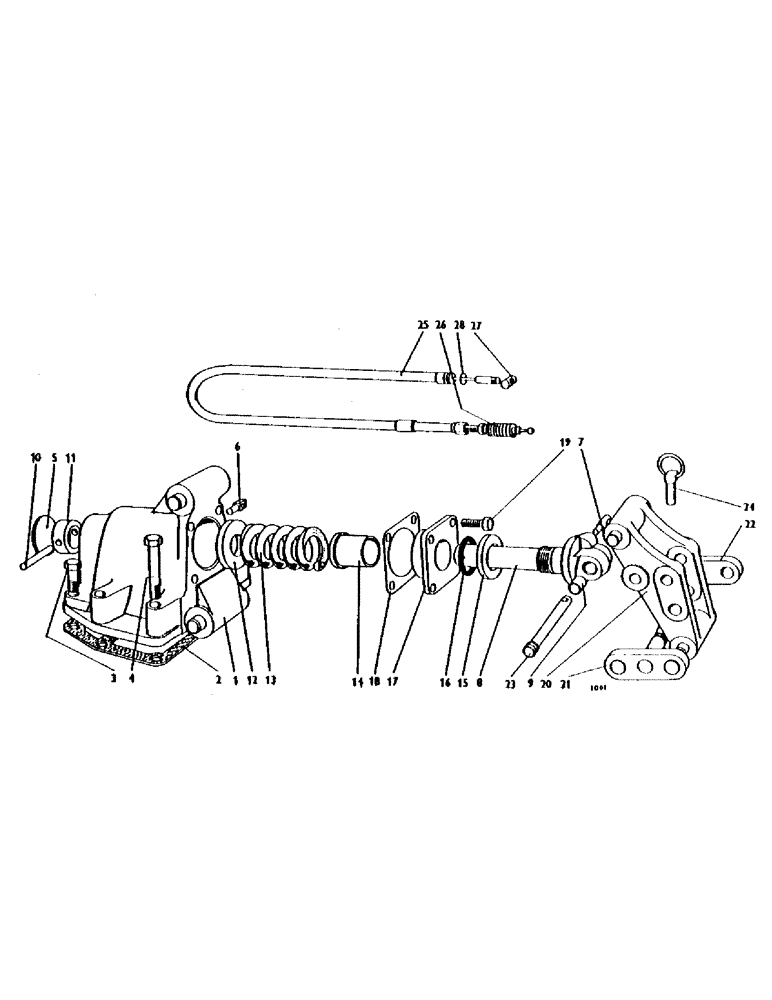

Запчасти Case IH 1200 (062) - SENSING UNIT, ADJUSTABLE, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

1

K920690

HOUSING

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

2

K926451

GASKET,0.56mm Thk

(replaces 924868)

1шт.

3

K600805

BOLT

1/2 UNC x 1 7/8 in.

2шт.

4

K600815

BOLT

1/2 UNC x 3 1/4 in.

4шт.

K19484

LOCK WASHER

spring washer, 1/2 in.

6шт.

5

K623813

PLUG

welch plug, 2 3/8 in. dia.

1шт.

6

K912371

CABLE

support--outer

1шт.

7

K913852

LARGE PIN

cable support--inner

1шт.

8

K920685

SHAFT

1шт.

9

K621396

BUSHING

bush

2шт.

10

K920696

PIN

retaining pin

1шт.

11

K915266

COLLAR

1шт.

12

K915101

WASHER

thrust washer, .375 in. alternatives

1шт.

12

K915112

WASHER

thrust washer, .355 in. alternatives

1шт.

12

K915113

WASHER

thrust washer, .365 in. alternatives

1шт.

12

K915114

WASHER

thrust washer, .385 in. alternatives

1шт.

12

K915115

WASHER

thrust washer, .395 in. alternatives

1шт.

12

K915116

WASHER

thrust washer, .405 in. alternatives

1шт.

13

K915103

SPRING

1шт.

14

K915259

SLEEVE

1шт.

15

K915260

BUSHING

distance piece

1шт.

16

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

'O' ring, 1 7/8 in. int. dia.

1шт.

17

K923982

PLATE

end plate

1шт.

19

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in.

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

4шт.

20

K922006

FRAME

1шт.

21

K922028

LINK

plate and pin

1шт.

22

K922030

PLATE ASSY.

link plate

1шт.

23

K920695

LINK

pin

2шт.

24

K66408

PIN

linch pin and ring

3шт.

25

K962897

CABLE

assembly (supersedes 915052)

1шт.

26

K911970

BOOT

dirt excluder (replaces 906182) 962897

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 962897 1/4"-28 NPT x .54" lg

1шт.

27

K915053

FITTING

nipple

1шт.

K617080

NUT

No. 10 UNF (replaces 617049)

2шт.

28

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

'O' ring, 1/4 in. int. dia. (replaces 14658)

1шт.
