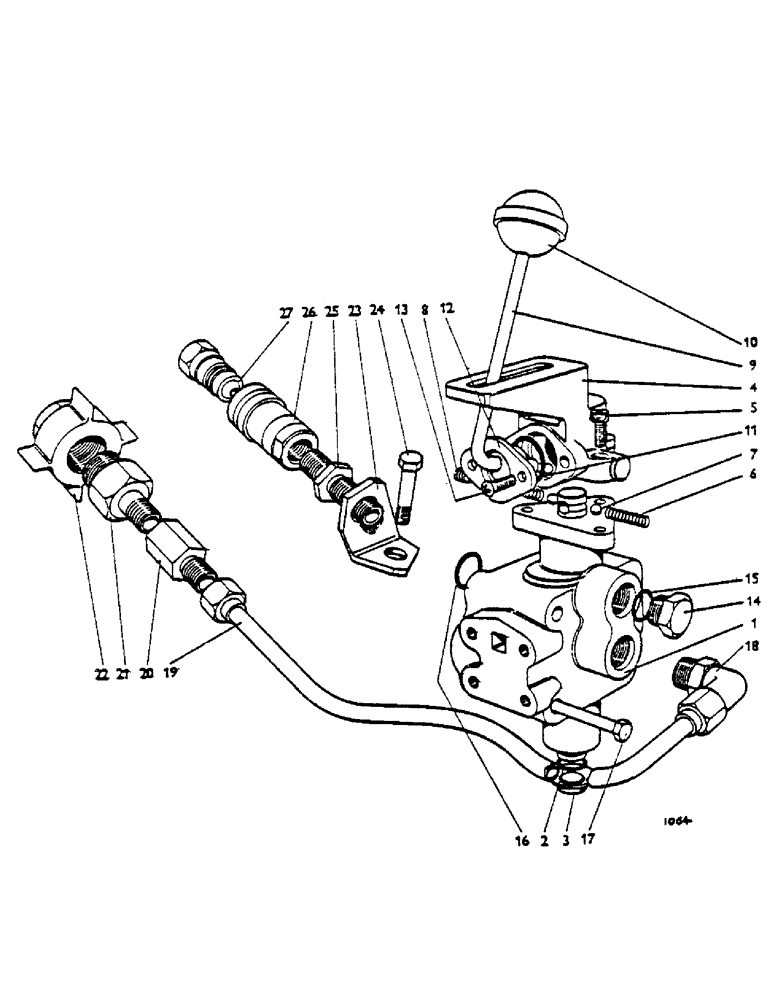

Запчасти Case IH 1200 (060) - THREE-WAY SELECTOR VALVE (07) - HYDRAULIC SYSTEM

1

K919825

NO LONGER SERVICED

valve assembly

1шт.

2

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' ring, 7/16 in. int. dia. 919825

2шт.

3

K919826

BREATHER

919825

1шт.

4

K919611

COVER

919825

1шт.

5

K606501

SCREW

1/4 UNC x 5/8 in. 919825

3шт.

6

K625208

SPRING

919825

2шт.

7

K17063

BALL

steel ball, 1/4 in. 919825

2шт.

8

K606020

SCREW

grubscrew, 5/16 UNC x 1/4 in. 919825

1шт.

9

K919612

LEVER

919825

1шт.

10

K902270

KNOB

919825

1шт.

11

K16351

O-RING,3.53mm Thk x 24.99mm ID

'O' ring, 1 in. int. dia. 919825

1шт.

12

K919613

SHIM

plate 919825

1шт.

13

K614924

SCREW

No. 10 UNF x 1/2 in. 919825

2шт.

K19488

SPRING WASHER

spring washer, 3/16 in. 919825

2шт.

14

K920826

O-RING

plug, 3/4 UNF

1шт.

15

K623589

O-RING

'O' ring, 5/8 in. int. dia.

2шт.

16

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' ring, 3/4 in. int. dia. valve to ram cylinder

1шт.

17

K600416

BOLT

3/8 UNC x 3 in. valve to ram cylinder

4шт.

K19482

SPRING WASHER

spring washer, 3/8 UNC valve to ram cylinder

4шт.

18

K622114

FITTING

elbow, 3/4 UNF

1шт.

19

K921215

PIPE

, Serial Range: pipe--valve-coupling

1шт.

20

K921858

ADAPTER

adaptor, 1/2 BSP

1шт.

21

K921964

COUPLING, BREAK AWAY

Exactor coupling (tractor half)

1шт.

K960657

BREAKER POINTS

dust cover--Exactor coupling

1шт.

22

K627920

CONNECTOR, ELEC

Exactor coupling (hose half)

1шт.

23

K921160

BRACKET

1шт.

24

K600816

BOLT

1/2 UNC x 3 1/2 in.

1шт.

K626686

WASHER

spring washer, 1/2 in.

1шт.

25

K921178

ADAPTER

adaptor, 1/2 BSP

1шт.

26

K921216

COUPLING, BREAK AWAY

quick-release coupling (complete)

1шт.

K921217

PLUG

dust cover

1шт.

K626783

WASHER

sealing washer, 7/8 in.

1шт.

K19647

NUT

locknut, 1/2 BSP

1шт.

27

K921982

BREAKER POINTS

quick-release coupling (hose half) U1122 (918520) (universal coupling)

1шт.

K15737

SEALING WASHER

7/8 in. U1122 (918520) (universal coupling)

2шт.

K627134

SPACER

distance piece U1122 (918520) (universal coupling)

1шт.

K921964

COUPLING, BREAK AWAY

Exactor coupling (tractor half) U1122 (918520) (universal coupling)

1шт.

K921982

BREAKER POINTS

quick-release coupling (hose half) U1123 (918521) (universal coupling

1шт.

K15737

SEALING WASHER

7/8 in. U1123 (918521) (universal coupling

2шт.

K627134

SPACER

distance piece U1123 (918521) (universal coupling

1шт.

K921984

COUPLING, BREAK AWAY

Dowty coupling (tractor half) U1123 (918521) (universal coupling

1шт.
