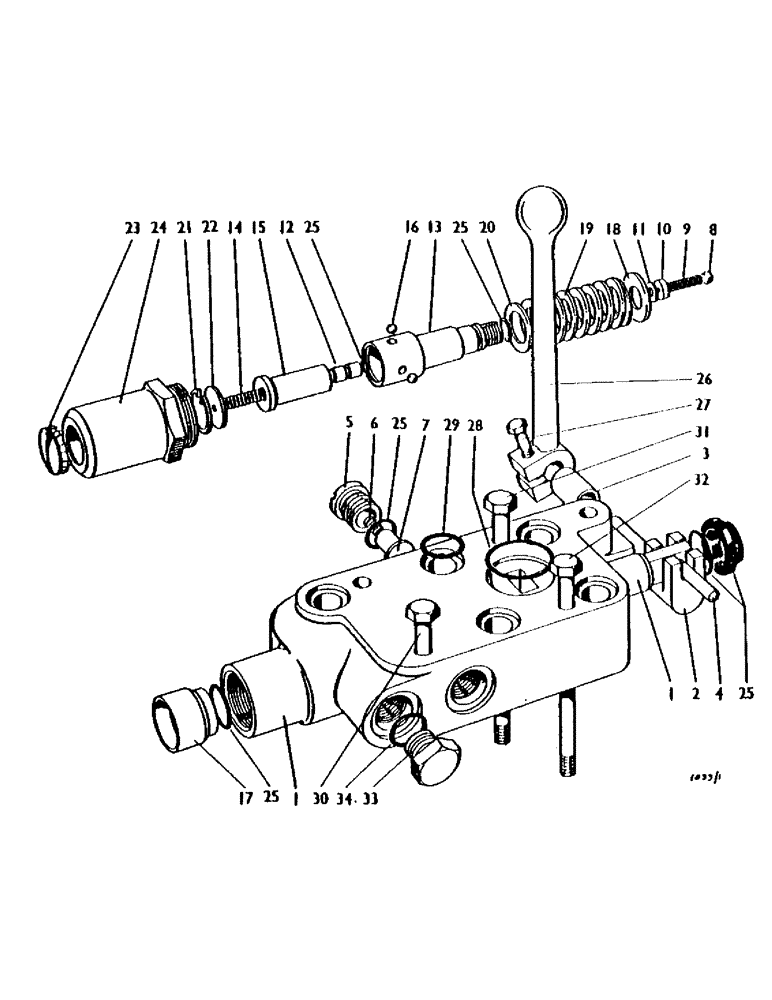

Запчасти Case IH 1200 (058) - DOUBLE-ACTING LIVE TAKE-OFF U948, SINGLE VALVE, VALVE U949, TWIN VALVE, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

1

K919689

NO LONGER SERVICED

Valve Assy., Control, Single (U948)

1шт.

1

K919689

NO LONGER SERVICED

Valve Assy., Control, Twin (U949)

2шт.

2

K962061

LEVER

Spindle

1шт.

3

K962062

BUSHING

1шт.

4

K623738

PIN

Mills

1шт.

5

K962065

PLUG

1шт.

6

K962067

SPRING

1шт.

7

K962066

PLUNGER

1шт.

8

K962302

BALL

Steel, Supersedes 962068

1шт.

9

K962069

SPRING

Pilot

1шт.

10

K962070

GUIDE

1шт.

11

K962080

SHIM,.010" Thk

1шт.

11

K962081

SHIM,.005" Thk

1шт.

12

K962071

PISTON

Detent

1шт.

13

K962075

NO LONGER SERVICED

Retainer, Detent

1шт.

14

K962073

SPRING

Detent Piston

1шт.

15

K962072

PLUNGER

Detent Release

1шт.

16

K11483

BALL

Steel, Replaces 962077)

4шт.

17

K962060

BUSHING

Body

1шт.

18

K962082

DISC

1шт.

19

K962064

SPARE PART

Spring

1шт.

20

K962078

WASHER

1шт.

21

K962076

RING, SNAP

RING SNAP

1шт.

22

K962079

WASHER

1шт.

23

K962074

PLUG

1шт.

24

K962059

NO LONGER SERVICED

Cap

1шт.

25

K962083

GASKET KIT

Seal Pack, 5 O-Rings, 1 Wiper

1шт.

26

K918937

NO LONGER SERVICED

Hand Lever, Cranked (U949 Only)

1шт.

26

K918940

NO LONGER SERVICED

Hand Lever, Straight

1шт.

K622382

KEY

Woodruff N° 403 (U948)

1шт.

K622382

KEY

Woodruff N° 403 (U949)

2шт.

27

K600144

BOLT

1/4 UNC x 2-3/4" (U948)

1шт.

27

K600144

BOLT

1/4 UNC x 2-3/4" (U949)

2шт.

K19480

SPRING WASHER

Spring 1/4" (U948)

1шт.

K19480

SPRING WASHER

Spring 1/4" (U949)

2шт.

K607043

NUT

1/4 UNC (U948)

1шт.

K607043

NUT

1/4 UNC (U949)

2шт.

28

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16" ID (U948)

1шт.

28

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16" ID (U949)

2шт.

29

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16" ID (U948)

5шт.

29

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16" ID (U949)

10шт.

30

K600515

BOLT

3/8 UNC x 2-3/4" (U948)

2шт.

31

K600517

BOLT

3/8 UNC x 5-1/4", Valve to Distribution Block (U948)

1шт.

31

K600520

BOLT

3/8 UNC x 5-1/4", Valve to Distribution Block (U949)

1шт.

32

K600516

BOLT

3/8 UNC x 4-3/4", Valve to Distribution Block (U948)

2шт.

32

K600519

BOLT

3/8 UNC x 4-3/4", Valve to Distribution Block (U949)

2шт.

K600513

BOLT

3/8 UNC x 6", Valve to Combining Valve (U948)

1шт.

K600521

BOLT

3/8 UNC x 7-3/4", Valve to Combining Valve (U949)

1шт.

K600518

BOLT

3/8 UNC x 5-1/2", Valve to Combining Valve (U948)

2шт.

K600520

BOLT

3/8 UNC x 7-1/4", Valve to Combining Valve (U949)

2шт.

K19482

SPRING WASHER

Spring, 3/8"

5шт.

K600512

BOLT

3/8 UNC x 4-1/2" (U949)

2шт.

33

K920826

O-RING

Plug, 3/4 UNF (U948)

2шт.

33

K920826

O-RING

Plug, 3/4 UNF (U949)

4шт.

34

K623589

O-RING

5/8" ID (U948)

2шт.

34

K623589

O-RING

5/8" ID (U949)

4шт.
