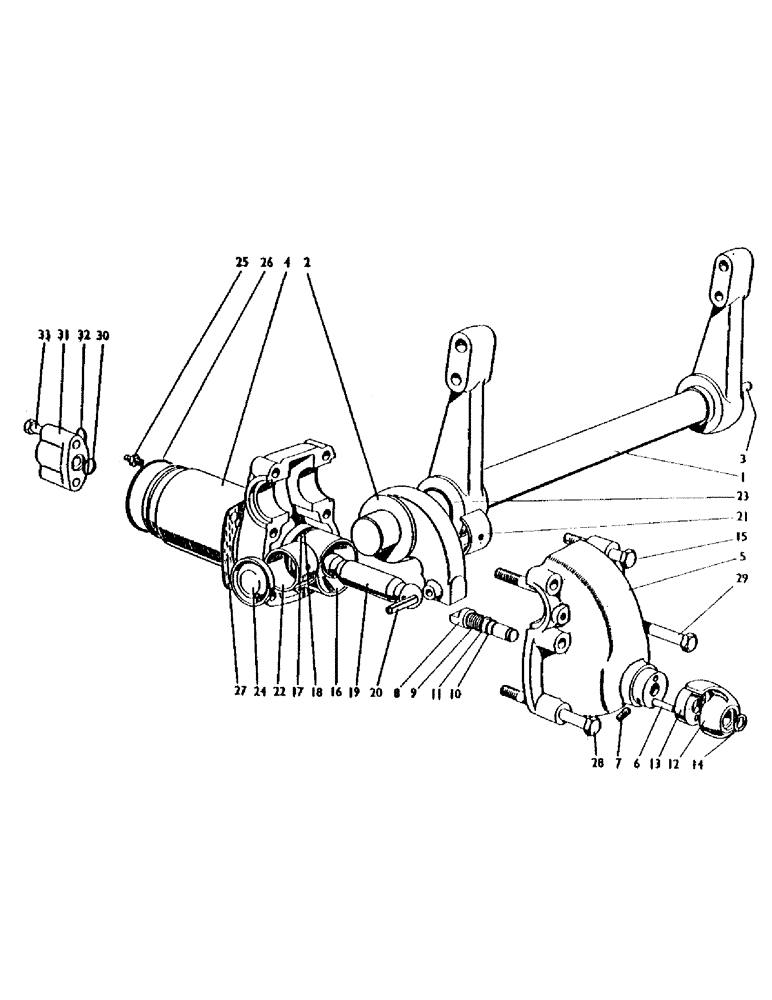

Запчасти Case IH 1200 (056) - RAMSHAFT AND RAM CYLINDER (07) - HYDRAULIC SYSTEM

1

K921919

SHAFT

ramshaft and levers (replaces 916568)

1шт.

2

K913762

ARM

ram lever 921919

1шт.

3

K621807

PIN

dowel 921919

1шт.

4

K961922

COVER

cylinder body and cover assembly

1шт.

5

K961923

COVER

and lift lock assembly replaces 623654 961922

1шт.

6

K620027

NEEDLE

roller 961923 replaces 623654 961922

2шт.

7

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

locating screw 961923 replaces 623654 961922

1шт.

8

K913775

SPARE PART

latch pin 961923 replaces 623654 961922

1шт.

9

K913436

SPRING

961923 replaces 623654 961922

1шт.

10

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' ring, 3/4 in. int. dia.--latch, replaces 623654 961922 pin 961923

1шт.

11

K907061

BUSHING

spacer ring 961923 replaces 623654 961922

1шт.

12

K920625

LEVER

operating lever 961923 replaces 623654 961922

1шт.

K626210

SHIM,.030" Thk

961923 replaces 623654 961922 .030" Thk

1шт.

13

K913724

DUST CAP

dirt excluder 961923 replaces 623654 961922

1шт.

14

K11290

RING, SNAP

circlip, 3/4 in., ext. 961923 replaces 623654 961922

2шт.

K924685

RUBBER

restrictor--cylinder body replaces 623654 961922

1шт.

15

K601218

BOLT

5/8 UNC x 4 1/2 in. replaces 623654 961922

2шт.

K607006

NUT

5/8 UNC replaces 623654 961922

2шт.

K11516

WASHER

shakeproof washer, 5/8 in. replaces 623654 961922

2шт.

16

K913769

PISTON

and insert

1шт.

17

K623519

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

'O' ring, 3 1/8 in. int. dia.--piston

1шт.

18

K623567

RING,79.09mm ID x 89.18mm OD x 2.64mm Thk

anti-extrusion ring

1шт.

19

K913774

ROD

connecting rod

1шт.

20

K623920

SPLIT PIN/SAFETY PIN

spring pin

1шт.

21

K913772

BEARING HALF

bearing (halves)

2шт.

22

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

bush

1шт.

23

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

'O' ring, 2 1/4 in. int. dia.--ramshaft

1шт.

24

K913773

PLUG

sealing disc

1шт.

25

K910104

SCREW

vent screw

1шт.

K11286

BALL

steel ball

1шт.

26

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

'O' ring, 3 7/8 in. int. dia.--cylinder body

1шт.

27

K926385

GASKET

(supersedes 913768)

1шт.

28

K600825

SCREW

bolt, 1/2 UNC x 5 3/4 in.

2шт.

K11518

WASHER

shakeproof washer, 1/2 in.

2шт.

29

K601280

BOLT

5/8 UNC x 13 1/8 in.

2шт.

K626874

WASHER

sealing washer, 5/8 in. (replaces 623515)

2шт.

K11516

WASHER

shakeproof washer, 5/8 in.

2шт.

K607006

NUT

5/8 UNC

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

30

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int., replaces 24555 dia.--connector to cylinder

1шт.

31

K919243

CONNECTOR, ELEC

connector

1шт.

32

K15290

O-RING

'O' ring, 9/16 in. int., Serial Range: dia.--connector-pipe

1шт.

33

K600415

BOLT

3/8 UNC x 2 7/8 in.

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.
