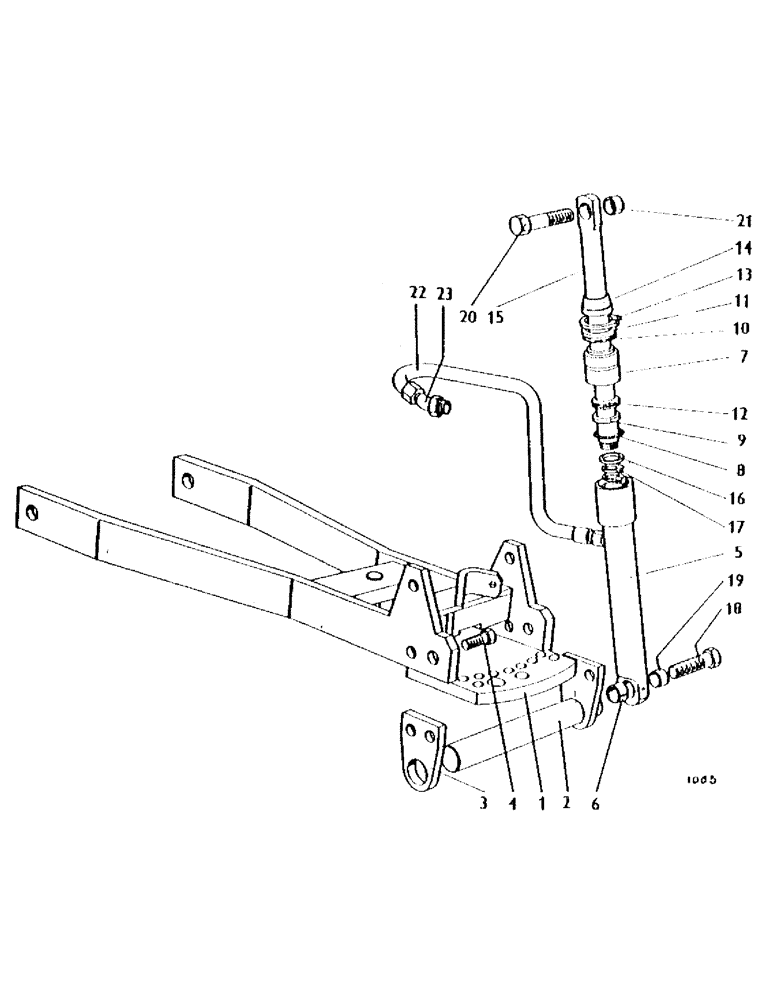

Запчасти Case IH 1200 (054) - SINGLE SUPPORT RAM, U1190, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

1

K924104

modification drawing--drawbar support

1шт.

2

K924105

SHAFT

cross shaft

1шт.

3

K924107

SUPPORT

plate

1шт.

4

K601465

BOLT

3/4 UNC x 2 1/4 in. cross shaft to drawbar support

4шт.

K19476

WASHER

3/4 in. cross shaft to drawbar support

2шт.

K607446

NUT

Cleveloc nut, 3/4 UNC cross shaft to drawbar support

4шт.

K924497

CYLINDER

ram assembly

1шт.

5

K924634

CYLINDER

924497

1шт.

6

K690720

BUSHING

tension bush 924497

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 924497 1/4"-28 NPT x .54" lg

2шт.

7

K924639

SLEEVE

924497

1шт.

8

K691287

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

'O' ring, 1 3/4 in. int. dia. 924497

1шт.

9

K691286

RING

anti-extrusion ring 924497

1шт.

10

K24844

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

'O' ring, 2 1/4 in. int. dia. 924497

1шт.

11

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

anti-extrusion ring 924497

1шт.

12

K691285

SEAL

Nu-lip seal 924497

1шт.

13

K11735

RING, SNAP

circlip, 2 1/2 in. int. 924497

1шт.

14

K691505

SEAL,44.45mm ID x 12.7mm Thk

scraper seal 924497

1шт.

15

K924640

ROD

ram rod 924497

1шт.

16

K924643

STOP

ring 924497

1шт.

17

K11129

RING, SNAP

circlip, 1 1/4 in. int. dia. 924497

2шт.

18

K601462

BOLT

3/4 UNC x 3 in. cylinder to cross shaft

1шт.

K19486

WASHER, LOCK

spring washer, 3/4 in. cylinder to cross shaft

1шт.

K19476

WASHER

3/4 in. cylinder to cross shaft

1шт.

19

K901963

BUSHING

bush cylinder to cross shaft

1шт.

20

K601466

BOLT

3/4 UNC x 4 in. cylinder to lift arm

1шт.

K19476

WASHER

3/4 in. cylinder to lift arm

1шт.

21

K901963

BUSHING

bush cylinder to lift arm

1шт.

K607446

NUT

Cleveloc nut, 3/4 UNC cylinder to lift arm

1шт.

22

K924211

HOSE

pipe, 3/4 UNF x 45 in.

1шт.

23

K691539

ELBOW

3/4 UNF

1шт.
