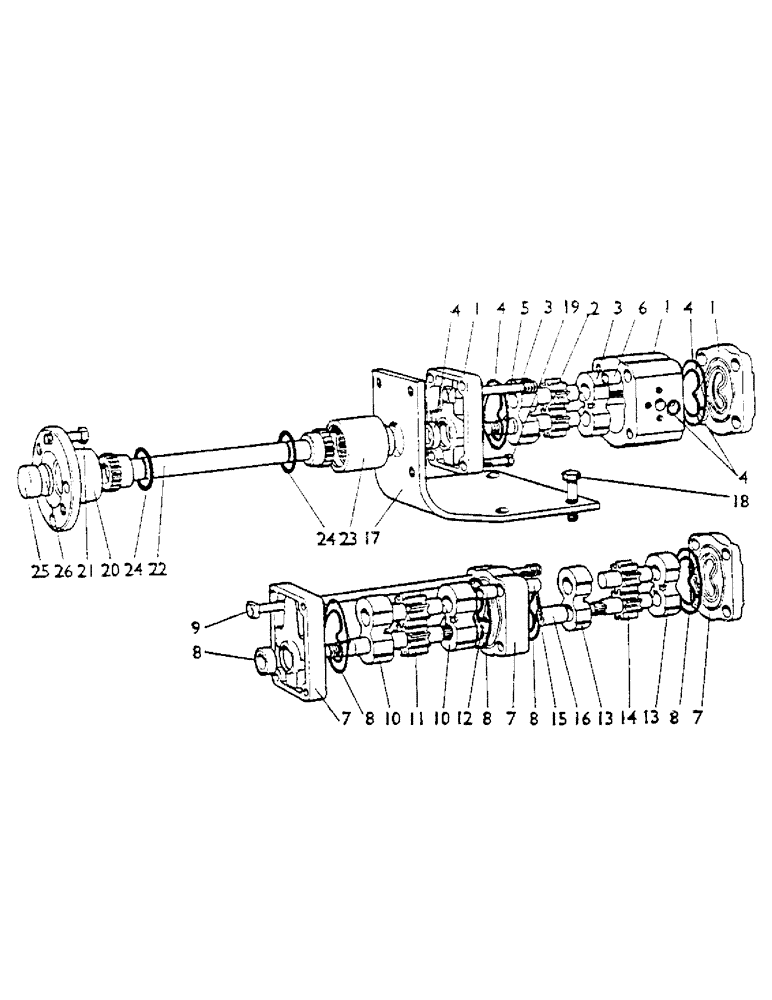

Запчасти Case IH 1200 (053) - HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

K919048

PUMP

single pump assembly

1шт.

2

K962090

GEAR

rotors (one pair) 919048 (single pump)

1шт.

3

K962089

BEARING

919048 (single pump)

2шт.

4

K962088

RING

seal pack 919048 (single pump)

1шт.

5

K962103

bolt, 3/8 UNF, special 919048 (single pump)

4шт.

6

K962099

PIN

ring dowel 919048 (single pump)

8шт.

K616982

NUT

3/8 UNF 919048 (single pump)

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. 919048 (single pump)

4шт.

7

K916535

PUMP

tandem pump assembly

1шт.

K916535R

REMAN-HYD PUMP

1200 S/N 700001 & UP (1/67-12/71)

1шт.

K916535C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

K962117

PUMP

seal pack (both pumps) 916535 (tandem pump)

1шт.

9

K962111

BOLT

3/8 UNF, special 916535 (tandem pump)

4шт.

K616982

NUT

3/8 UNF 916535 (tandem pump)

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. 916535 (tandem pump)

4шт.

10

K962116

BEARING ASSY

bearing 3.3 pump 916535 (tandem pump)

1шт.

11

K962109

GEAR

rotors (one pair) 3.3 pump 916535 (tandem pump)

1шт.

12

K962099

PIN

ring dowel 3.3 pump 916535 (tandem pump)

4шт.

13

K962089

BEARING

2.5 pump 916535 (tandem pump)

2шт.

14

K962105

GEAR

rotors (one pair) 2.5 pump 916535 (tandem pump)

1шт.

15

K962110

PIN

ring dowel 2.5 pump 916535 (tandem pump)

4шт.

16

K962107

COUPLING, BREAK AWAY

muff coupling 2.5 pump 916535 (tandem pump)

1шт.

17

K924855

SUPPORT

bracket (supersedes 919037)

1шт.

18

K603107

BOLT,1/2" x 1 3/8"

bolt, 1/2 UNC x 1 3/8 in., Serial Range: bracket-frame

4шт.

K19484

LOCK WASHER

spring washer, 1/2 in., Serial Range: bracket-frame

4шт.

K19474

HARDWARE

washer, 1/2 in.

1шт.

19

K600006

BOLT

1/4 UNC x 1 1/2 in. (replaces 600004)

4шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

4шт.

K607000

NUT

1/4 UNC

4шт.

20

K910538

COUPLING, BREAK AWAY

coupling--crankshaft pulley

1шт.

21

K600359

BOLT

5/16 UNC x 1 1/4 in. coupling to crankshaft pulley

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in. coupling to crankshaft pulley

4шт.

22

K912149

DRIVE SHAFT

driveshaft

1шт.

23

K917058

COUPLING, BREAK AWAY

coupling--pump

1шт.

K19604

KEY

Woodruff No. 405

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

7/16 UNF

1шт.

K626380

WASHER

tabwasher

1шт.

24

K623555

O-RING,1.396" OD x 0.255" Width

'O' ring, 1 7/16 in. int. dia.

2шт.

25

K627580

BUSHING

rubber disc, 5/16 in. alternatives

1шт.

K627581

BUSHING

rubber disc, 7/16 in. alternatives

1шт.

K627582

BUSHING

rubber disc, 9/16 in. alternatives

1шт.

26

K910559

PLATE

steel disc

1шт.
