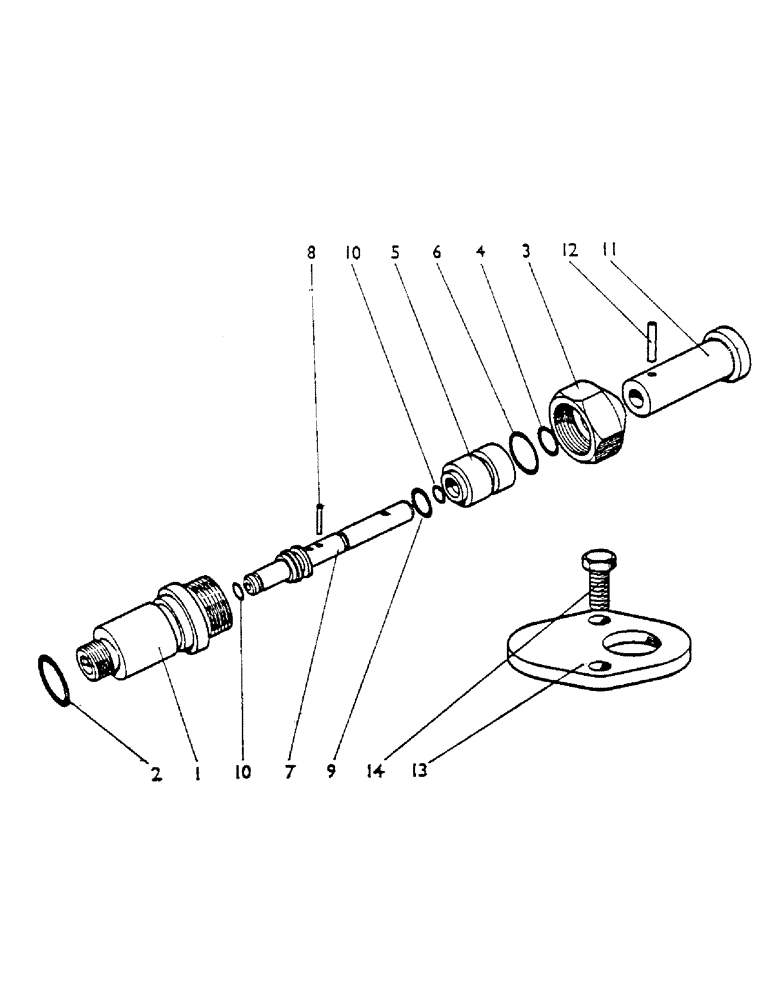

Запчасти Case IH 1200 (052) - DUMP VALVE, U939, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K919777

NO LONGER SERVICED

dump valve assembly

1шт.

1

K940576

GUIDE

body (supersedes 918986) 919777

1шт.

2

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' ring, 3/4 in. int. dia. 919777

1шт.

3

K918983

NUT

1 in. UNF, special 919777

1шт.

4

K24554

O-RING

'O' ring, 3/8 in. int. dia. 919777

1шт.

5

K918985

BUSHING

bush 919777

1шт.

6

K623557

O-RING

'O' ring, 9/16 in. int. dia., 919777 (replaces 31682)

1шт.

7

K962194

SET OF PARTS

plunger 919777

1шт.

8

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , Mills, 919777 1/8" x 1/2", Type D

1шт.

9

K623534

O-RING,0.352" OD x 0.103" Width

'O' ring, 3/8 in. int. dia. 919777

1шт.

10

K14658

O-RING,0.07" Thk x 0.239" ID

'O' ring, 1/4 in. int. dia. 919777

2шт.

11

K919666

KNOB

919777

1шт.

12

K623724

PIN

Mills pin, 1/8 x 5/8 in. 919777

1шт.

13

K929465

COVER

plate--rear axle (supersedes 918984)

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

setscrew, 5/16 UNC x 1 1/8 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

K962584

GASKET KIT

seal pack

1шт.
