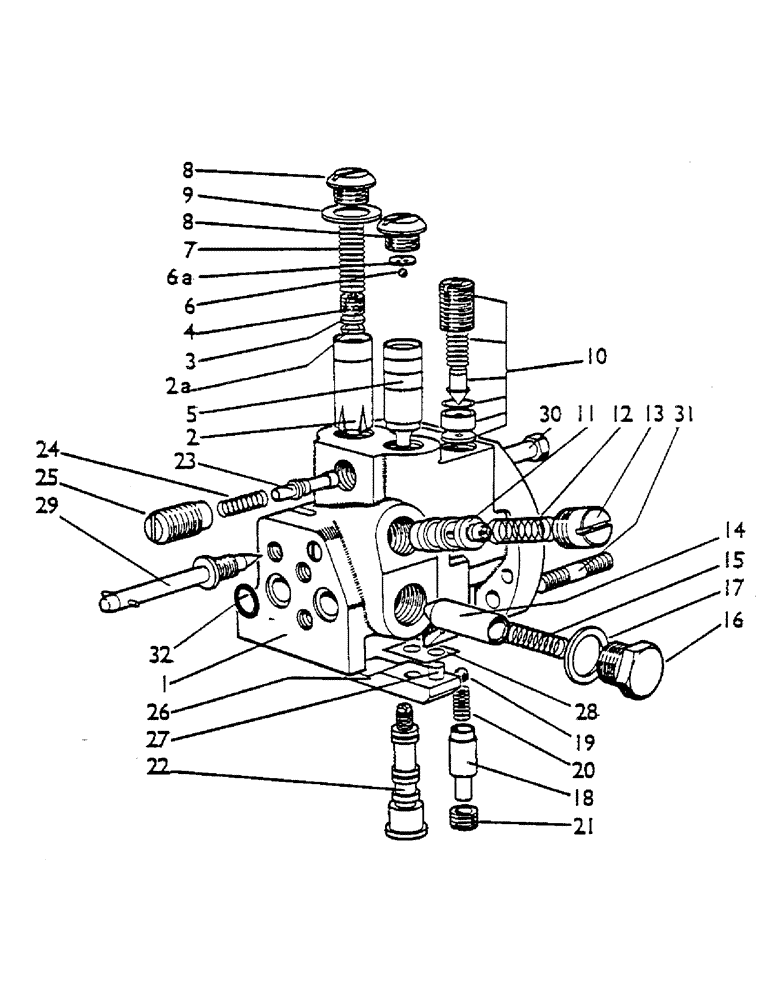

Запчасти Case IH 1200 (050) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

K961894

NO LONGER SERVICED

control valve assembly

1шт.

2

NSS

NOT SOLD SEPARAT

plunger--by-pass valve (not supplied separately), 961894

1шт.

2a

K921154

FILTER

--by-pass plunger (supersedes 920089), 961894

1шт.

3

K913621

WASHER

restrictor washer 961894

1шт.

4

K919634

PLUG

3/8 UNF, special 961894

1шт.

5

NSS

NOT SOLD SEPARAT

plunger--hold valve (not supplied separately), 961894

1шт.

6

K11548

BALL

steel ball, 1/8 in. 961894

1шт.

6a

K920136

SHIM

retainer--ball 961894

1шт.

7

K24832

SPRING

961894

2шт.

8

K913242

PLUG

5/8 UNF, special 961894

2шт.

9

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ing washer, 5/8 in. 961894

2шт.

10

K961794

VALVE

relief valve (pre-set assembly) 961894

1шт.

11

K913221

NO LONGER SERVICED

spool--rate of lowering valve 961894

1шт.

12

K625108

SPRING

961894

1шт.

13

K909397

SPRING

plug, 3/8 BSP, special 961894

1шт.

14

K916395

PLUNGER

--non-return valve 961894

1шт.

15

K625167

SPRING

961894

1шт.

16

K916397

PLUG

3/4 UNF, special 961894

1шт.

17

K623530

SEAL

ing washer, 3/4 in. 961894

1шт.

18

NSS

NOT SOLD SEPARAT

plunger--TCU valve (not supplied separately), 961894

1шт.

19

K17063

BALL

steel ball, 1/4 in. 961894

1шт.

K626843

WASHER

special 961894

1шт.

20

K625190

SPRING

961894

1шт.

21

K909398

CAP

ferrule, 1/4 BSP 961894

1шт.

22

NSS

NOT SOLD SEPARAT

spool valve (not supplied separately), 961894

1шт.

23

NSS

NOT SOLD SEPARAT

plunger--latching valve (not supplied separately), 961894

1шт.

24

K625180

SPRING

961894

1шт.

25

K913971

PLUG

9/16 UNF, special 961894

1шт.

26

K912464

WASHER

abutment plate

1шт.

27

K24853

PIN

dowel abutment plate to valve body

1шт.

K606803

SCREW

Wedglock screw, 1/4 UNC abutment plate to valve body

1шт.

29

K920132

NEEDLE

valve

1шт.

30

K600211

BOLT

5/16 UNC x 2 1/4 in. valve to ramshaft bracket

1шт.

31

K608143

STUD

5/16 UNC valve to ramshaft bracket (replaces 608120)

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC valve to ramshaft bracket

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. valve to ramshaft bracket

3шт.

32

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' ring, 7/16 in. int. dia.

2шт.

K962813

GASKET

seal pack--control valve

1шт.
