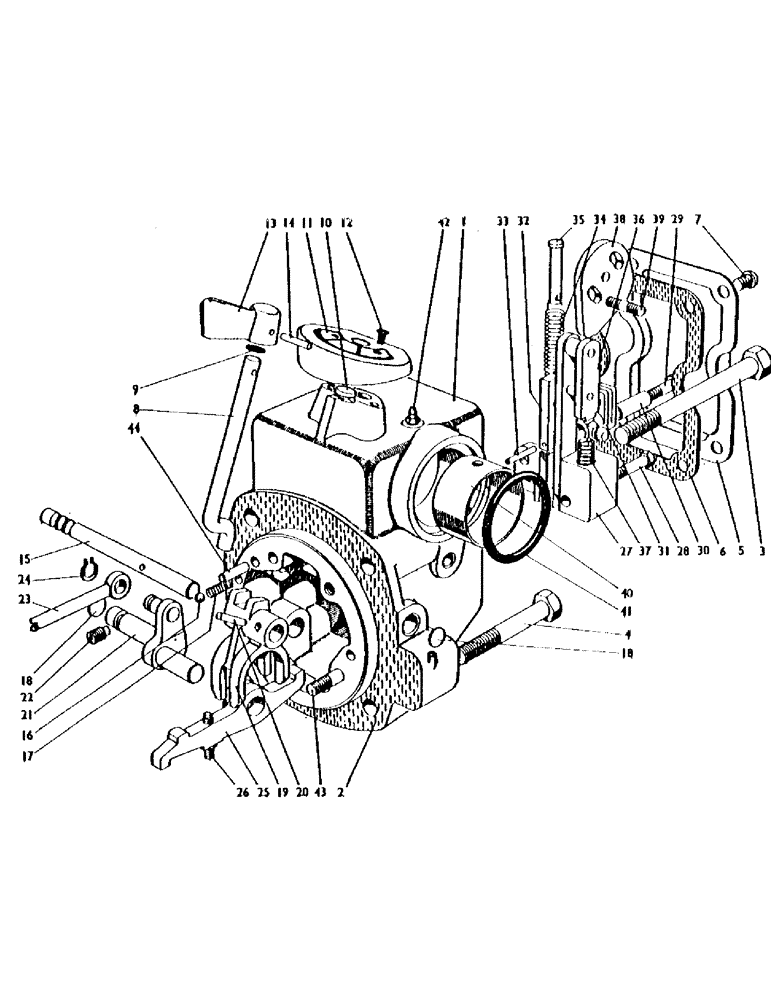

Запчасти Case IH 1200 (048) - CONTROL MECHANISM (07) - HYDRAULIC SYSTEM

1

K913756

BRACKET

ramshaft bracket

1шт.

2

K926386

GASKET

bracket to axle case supersedes 913141

1шт.

3

K600826

BOLT

1/2 UNC x 6 in. bracket to axle case

2шт.

4

K600815

BOLT

1/2 UNC x 3 1/4 in. bracket to axle case

2шт.

K11518

WASHER

shakeproof washer, 1/2 in. bracket to axle case

4шт.

5

K910859

COVER

1шт.

6

K909558

GASKET,1.59mm Thk

, Serial Range: cover-bracket

1шт.

7

K604477

SCREW

5/16 UNC x 5/8 in. cover to bracket (replaces 603943)

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: cover-bracket

4шт.

8

K919362

CONTROL LEVER

selector rod

1шт.

9

K24554

O-RING

'O' ring, 3/8 in. int. dia.

1шт.

10

K923237

SKID/SHOE

breather pad (replaces 915393)

1шт.

11

K909542

WASHER

selector panel

1шт.

12

K614943

SCREW

No. 10 UNF (replaces 614960)

2шт.

13

K910649

KNOB

pointer

1шт.

14

K623930

SPRING

pin

1шт.

15

K913160

SELECTOR

shaft

1шт.

16

K17063

BALL

steel ball, 1/4 in.

1шт.

17

K24563

SPRING

1шт.

18

K24711

SHIM

weich plug

3шт.

K923284

PLUG

9/16 UNF

1шт.

19

K909536

NO LONGER SERVICED

selector fork

1шт.

20

K623740

SPLIT PIN/SAFETY PIN

spring pin

1шт.

21

K913119

ROCKER LEVER

rocker shaft

1шт.

22

K602750

SCREW

retaining screw

1шт.

23

K909585

ROD

connecting rod

1шт.

24

K621562

RING, SNAP

circlip, 3/8 in., ext.

1шт.

25

K913088

ROCKER LEVER

1шт.

26

K909552

SCREW,3/16"

adjusting screw

1шт.

K607300

NUT

Nyloc nut, 1/4 UNC (replaces 607440)

1шт.

27

K916362

GUIDE

bracket

1шт.

28

K600206

BOLT

5/16 UNC x 1 5/8 in. guide bracket to ramshaft bracket

1шт.

K19481

SPRING WASHER

spring washer, 5/16 in. guide bracket to ramshaft bracket

1шт.

29

K600361

BOLT

5/16 UNC x 1 7/8 in. guide bracket to ramshaft bracket (replaces 600208)

1шт.

30

K627019

BUSHING

bush guide bracket to ramshaft bracket

1шт.

K19471

WASHER

5/16 in. guide bracket to ramshaft bracket

1шт.

31

K915033

LEVER

actuating lever

1шт.

32

K912971

ROD

push rod--depth control

1шт.

33

K623973

SPRING

pin

1шт.

34

K624922

SPRING

1шт.

35

K913776

SPRING

anchor

1шт.

36

K921723

ROD

push rod--height control (supersedes 916588)

1шт.

37

K625196

SPRING

1шт.

38

K916587

CAM

1шт.

39

K608001

STUD

1/4 UNC x 1 1/16 in.

2шт.

K19470

WASHER

1/4 in.

2шт.

K607300

NUT

1/4 UNC

2шт.

40

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

bush

1шт.

41

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

'O' ring, 2 1/4 in. int. dia.

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

43

K608143

STUD

5/16 UNC x 1 1/2 in. (replaces 608120)

2шт.

44

K24853

PIN

dowel

2шт.
