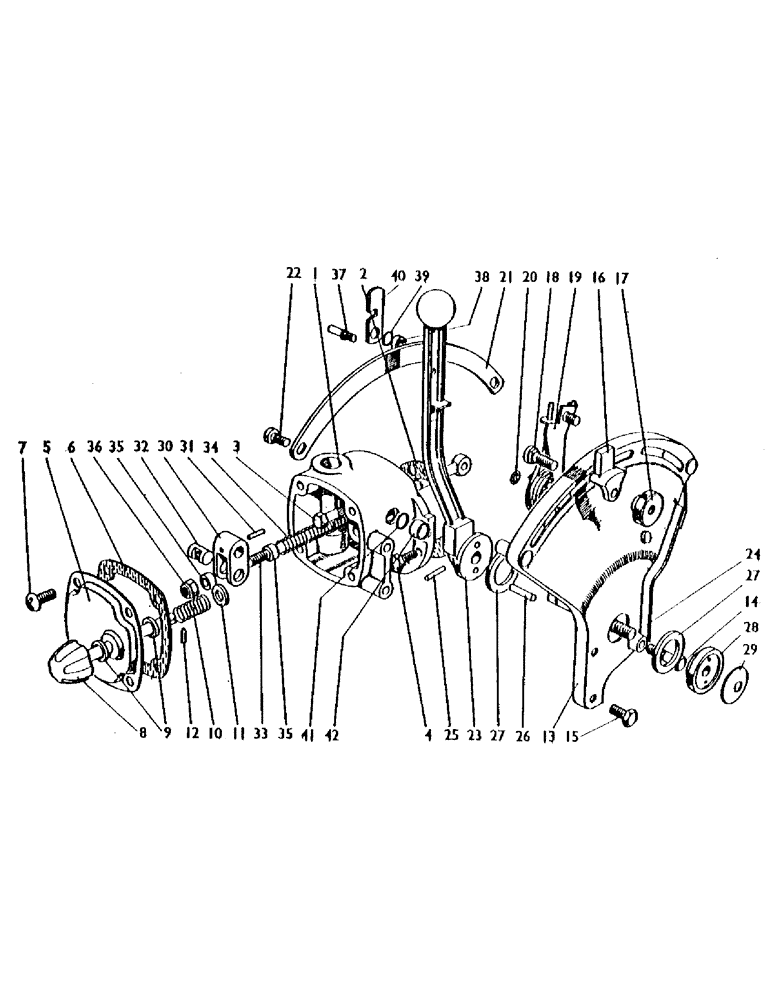

Запчасти Case IH 1200 (046) - CONTROL LEVER AND QUADRANT (07) - HYDRAULIC SYSTEM

1

K909568

HOUSING

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

2

K903026

GASKET

housing to axle case

1шт.

3

K600217

BOLT

5/16 UNC x 3 in. housing to axle case

2шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. housing to axle case

1шт.

K19481

SPRING WASHER

spring washer, 5/16 in. housing to axle case

3шт.

5

K910860

WASHER

cover

1шт.

6

K909559

GASKET,1.59mm Thk

, Serial Range: cover-housing

1шт.

7

K604477

SCREW

5/16 UNC x 5/8 in. cover to housing (replaces 603943)

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: cover-housing

4шт.

8

K910721

KNOB

1шт.

9

K909573

DISC

friction disc

2шт.

10

K24887

SPRING

1шт.

11

K19472

WASHER

3/8 in.

1шт.

12

K623930

SPRING

pin

1шт.

13

K913263

QUADRANT

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

setscrew, 5/16 UNC x 1 1/8 in., special quadrant to housing

1шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

setscrew, 5/16 UNC x 3/4 in., special quadrant to housing

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: quadrant-housing

3шт.

16

K913082

ELECTRICAL GAUGE

finger guide

2шт.

17

K921826

SERRATED NUT

hand nut, 5/16 UNF (replaces 909576)

2шт.

18

K909577

STUD

5/16 UNF, special

2шт.

19

K913935

SPRING

carrier plate and spring

1шт.

20

K624582

RETAINER

clip carrier, Serial Range: plate-quadrant

1шт.

K19470

WASHER

1/4 in. carrier, Serial Range: plate-quadrant

1шт.

K626682

WASHER

5/16 in. carrier, Serial Range: plate-quadrant

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC carrier plate to quadrant

1шт.

21

K913637

STOP

abutment plate

1шт.

22

K604575

SCREW

5/16 UNC x 5/8 in., Serial Range: plate-quadrant

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: plate-quadrant

2шт.

23

K913268

LEVER

control lever

1шт.

24

K909581

SHAFT

1шт.

25

K623942

PIN

spring pin

1шт.

26

K621811

PIN

dowel

2шт.

27

K909582

WASHER

friction washer

2шт.

28

K909583

PLATE

friction plate

1шт.

29

K626740

WASHER

Belleville washer

1шт.

K626686

WASHER

1/2 in.

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

locknut, 1/2 UNC

1шт.

K607804

NUT

capped nut, 1/2 UNC

1шт.

30

K909584

FORK

1шт.

31

K623940

PIN

spring pin

1шт.

32

K903370

PIN

1шт.

33

K909585

ROD

connecting rod

1шт.

34

K625161

SPRING

1шт.

35

K903367

COLLAR

2шт.

36

231-1435

LOCK NUT,5/16"-18, GB

NYLOC NUT, 5/16 UNC

1шт.

K915178

DECAL

instruction plate--quadrant

1шт.

K624090

RIVET

1/8 x 3/16 in.

2шт.

37

K914834

STUD

1/4 UNC, special U730 (911471) (catch unit)

1шт.

K607514

NUT

1/4 UNC U730 (911471) (catch unit)

1шт.

38

K914835

BUSHING

bush U730 (911471) (catch unit)

1шт.

39

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

'O' ring, 1/2 in. int. dia. U730 (911471) (catch unit)

1шт.

40

K914833

WASHER

catch U730 (911471) (catch unit)

1шт.

K626682

WASHER

5/16 in. U730 (911471) (catch unit)

1шт.

41

K623424

RING

sealing ring, 1/2 in. int. dia.

1шт.

42

K627068

BUSHING

plastic sleeve

1шт.
