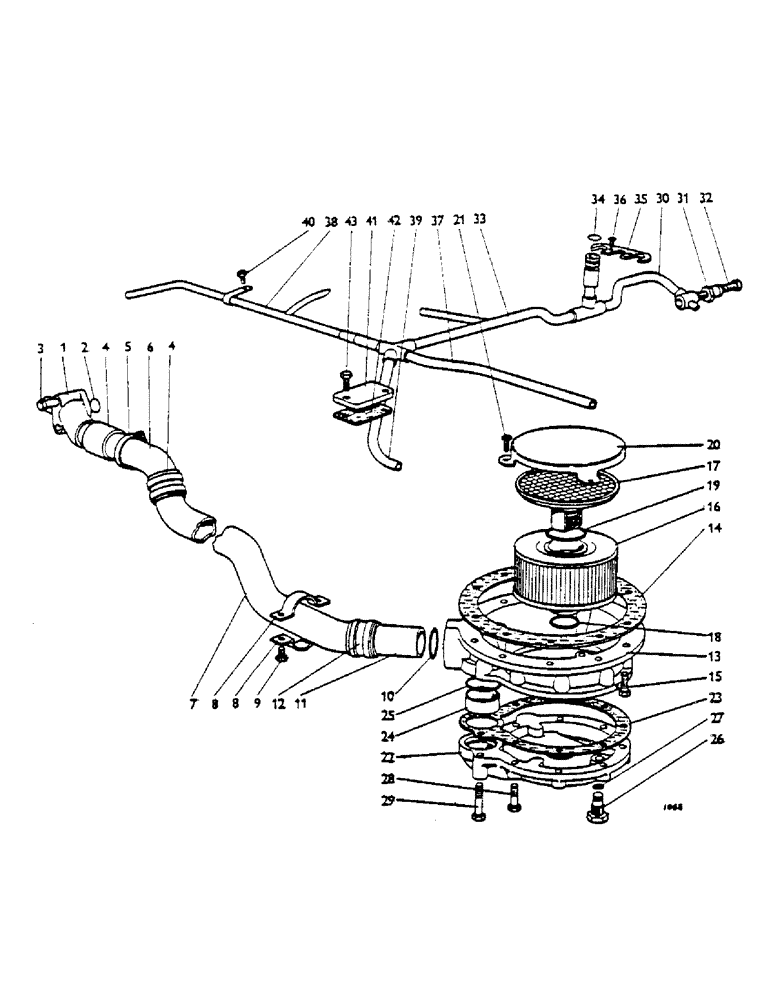

Запчасти Case IH 1200 (044) - LOW-PRESSURE HYDRAULIC PIPES, SINGLE PUMP (07) - HYDRAULIC SYSTEM

1

K919063

ELBOW

--pump inlet

1шт.

2

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' ring, 1 in. int. dia. elbow to pump (replaces 16351)

1шт.

3

K600211

BOLT

5/16 UNC x 2 1/4 in. elbow to pump (replaces 600212)

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: elbow-pump

2шт.

4

K917126

HOSE

2шт.

5

K621960

HOSE

clip, 2 1/4 in.

5шт.

6

K919088

PIPE

inlet pipe--front

1шт.

7

K921797

NO LONGER SERVICED

inlet pipe--rear (supersedes 919087)

1шт.

8

K916897

SHIM

bracket--rear pipe

4шт.

9

K602803

BOLT

5/16 UNC x 3/4 in.

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

4шт.

10

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' ring, 1 3/4 in. int. dia., 700001 to 706428 (replaces 623573)

1шт.

11

K921796

PIPE

connecting pipe, Serial Range: 700001-706428

1шт.

12

K917126

HOSE

, Serial Range: 700001-706428

1шт.

K621960

HOSE

clip, 2 1/4 in., Serial Range: 700001-706428

1шт.

K924378

HOSE

connection 706429 onward

1шт.

K11806

HOSE

clip, 2 1/2 in. 706429 onward

1шт.

13

K924377

HOUSING

--filter (supersedes 922612) 705359 onward

1шт.

14

K924267

GASKET

(supersedes 916642) 705359 onward

1шт.

15

K602806

BOLT

screw, 5/16 UNC x 1 1/8 in. 705359 onward

10шт.

K19481

SPRING WASHER

spring washer, 5/16 in. 705359 onward

10шт.

K920806

FILTER, ELEMENT

filter assembly 705359 onward

1шт.

16

K920522

FILTER, ELEMENT

element 920806 705359 onward

1шт.

17

K920521

VALVE

and gauze 920806 705359 onward

1шт.

18

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

'O' ring, 1 3/8 in. int. dia., 705359 onward 920806

1шт.

19

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

'O' ring, 2 1/8 in. int. dia., 705359 onward 920806

1шт.

20

K921886

COVER

--oil filter 705359 onward

1шт.

21

K613984

SCREW

10 UNF x 1/2 in. 705359 onward

3шт.

K19488

SPRING WASHER

spring washer, 3/16 in. 705359 onward

3шт.

22

K921880

COVER

--filter housing 705359 onward

1шт.

23

K921881

GASKET

705359 onward

1шт.

24

K921882

SEAL

insert 705359 onward

1шт.

25

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' ring, 1 3/4 in. int. dia. 705359 onward

1шт.

26

K623842

PLUG

drain plug 705359 onward

1шт.

27

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' ring, 5/16 in. int. dia. 705359 onward

1шт.

K626795

WASHER

sealing washer (replaces 626766) 705359 onward

1шт.

28

K600205

BOLT

5/16 UNC x 1 1/2 in. cover to, 705359 onward filter housing

6шт.

29

K600209

BOLT

5/16 UNC x 2 in. cover to, 705359 onward filter housing

3шт.

K19481

SPRING WASHER

spring washer, 5/16 in. cover to, 705359 onward filter housing

9шт.

K918815

FILTER

housing--filter, Serial Range: 700001-705358

1шт.

K916642

SPARE PART

gasket, Serial Range: 700001-705358

1шт.

K605540

screw, 5/16 UNC x 2 1/4 in., 700001 to 705358 (replaces 604489)

2шт.

K624300

SCREW

2 BA x 1 1/2 in., Serial Range: 700001-705358

1шт.

K904389

BUSHING

distance piece, Serial Range: 700001-705358

1шт.

K904388

WASHER

locating washer, Serial Range: 700001-705358

1шт.

K904390

PLUG

magnetic filter, Serial Range: 700001-705358

1шт.

K918817

FILTER

gauze filter, Serial Range: 700001-705358

1шт.

K623584

O-RING,5.475" ID x 6.025" OD x 0.275"

'O' ring, 5 1/2 in. int. dia. 700001 to 705358

2шт.

K918816

COVER

rear sump cover, Serial Range: 700001-705358

1шт.

K916643

GASKET

, Serial Range: 700001-705358

1шт.

K600217

BOLT

5/16 UNC x 3 in., Serial Range: 700001-705358

10шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: 700001-705358

10шт.

K19581

PLUG

drain plug, 1/4 BSP, Serial Range: 700001-705358

1шт.

K626765

GASKET

sealing washer, 1/2 in., Serial Range: 700001-705358

1шт.

30

K915339

TUBE

pipe--control, Serial Range: valve-tee-piece

1шт.

31

K912269

BUSHING

screwed bush

1шт.

K626577

WASHER

sealing washer, 1/2 in.

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

locknut, 1/2 UNC (replaces 607054)

1шт.

32

K602816

SCREW

setscrew, 5/16 UNC x 2 3/8 in.

1шт.

K607081

LOCK NUT

locknut, 5/16 UNC (replaces 607051)

1шт.

33

K916891

PIPE

--tee-piece to cross piece

1шт.

34

K623557

O-RING

'O' ring, 9/16 in. int. dia.

1шт.

35

K915344

WASHER

locating plate

1шт.

36

K603662

SCREW

1/4 UNC x 5/8 in.

2шт.

37

K919662

PIPE

--PTO lubrication

1шт.

38

K917009

pipe--gearbox lubrication 6-speed

1шт.

K920101

BOX

pipe--gearbox lubrication 12-speed

1шт.

39

K913785

PIPE,0.5" OD

--ram cylinder lubrication

1шт.

40

K602701

BOLT

setscrew, 1/4 UNC x 1/2 in.

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

1шт.

41

K915149

NO LONGER SERVICED

cover plate 705359 onward

1шт.

42

K915150

GASKET

705359 onward

1шт.

43

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

setscrew, 5/16 UNC x 7/8 in. 705359 onward

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. 705359 onward

2шт.

K961786

FILTER

by-pass filter, Serial Range: 700001-705358

1шт.

K913808

BRACKET

filter head 961786, Serial Range: 700001-705358

1шт.

K620706

BOLT (SPREADER)

bolt, 3/8 BSF, special 961786, Serial Range: 700001-705358

1шт.

K913807

sealing washer 961786, Serial Range: 700001-705358

1шт.

K913806

GASKET

sealing ring, large 961786, Serial Range: 700001-705358

1шт.

K913805

GASKET

sealing ring, small 961786, Serial Range: 700001-705358

1шт.

K914441

FILTER

element 961786, Serial Range: 700001-705358

1шт.

K913803

GASKET

sealing ring--bowl to element, 700001 to 705358 961786

1шт.

K913799

FILTER

bowl and stud 961786, Serial Range: 700001-705358

1шт.

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

'O' ring, 1/2 in. int. dia. filter, 700001 to 705358 to axle case

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. filter, 700001 to 705358 to axle

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. filter to, 700001 to 705358 axle case

2шт.
