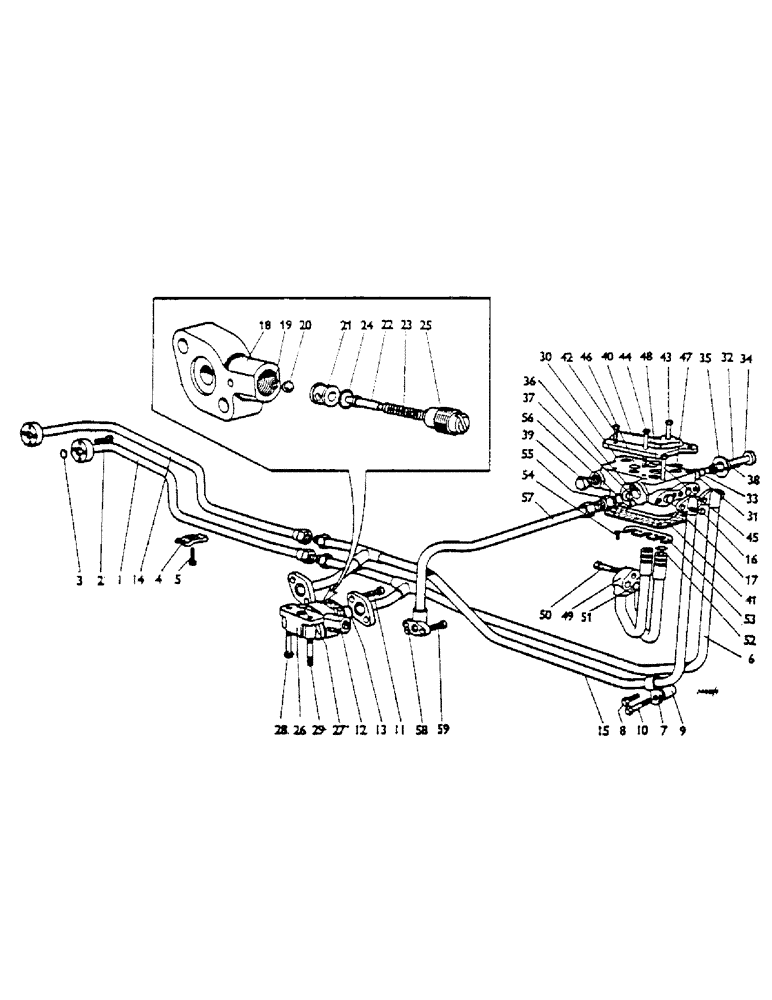

Запчасти Case IH 1200 (042) - HIGH-PRESSURE HYDRAULIC PIPES, TANDEM PUMP, OPTIONAL EQUIPTMENT (07) - HYDRAULIC SYSTEM

1

K919408

PIPE

--rear pump outlet

1шт.

2

K606504

SCREW

1/4 UNC x 1 in.

8шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' ring, 5/8 in. int. dia.

2шт.

33

K623594

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

919808 5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

K916899

BRACKET

--outlet pipes

2шт.

5

K602806

BOLT

setscrew, 5/8 UNC x 1 1/8 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

6

K928526

PIPE

--relief valve to combining, 715383 onward valve

1шт.

6

K919410

NO LONGER SERVICED

pipe--relief valve to combining, 700001 to 715382 valve

1шт.

7

K621686

CLIP

pipes to right-hand hitch, replaces 621658 bracket

2шт.

K628240

STRIP

rubber strip pipes to right-hand hitch bracket

1шт.

8

K602906

SCREW

setscrew, 3/8 UNC x 1 1/4 in. pipes, replaces 602903 to right-hand hitch bracket

1шт.

9

K627046

BUSHING

distance piece pipes to right-hand hitch bracket

1шт.

10

K600410

BOLT

3/8 UNC x 2 1/4 in. pipes to, replaces 600407 right-hand hitch bracket

1шт.

280136

NUT,3/8"-16, G8

Pipes to RH hitch bracket 3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipes to right-hand hitch bracket

2шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in. pipe to relief valve

2шт.

11

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in. pipe to relief valve

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipe to relief valve

4шт.

K928522

SEAL

pipe to relief valve

1шт.

12

K919415

SEAL

pipe to relief valve

2шт.

13

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

'O' ring, 13/16 in. int. dia. pipe to relief valve

3шт.

14

K919532

PIPE

--front pump outlet

1шт.

15

K919534

PIPE

--relief valve to combining valve

1шт.

16

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in. pipes to combining valve

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in. pipes to combining valve

4шт.

17

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. pipes, replaces 15290 to combining valve

2шт.

K928525

VALVE

bleed valve 715383 onward

1шт.

18

K928518

HOUSING

body 928525

1шт.

19

K924115

BALL

retainer--ball 928525

1шт.

20

K600089

X

ball, 9/32 in. dia. 928525

1шт.

K626792

WASHER

5/16 in., special 928525

1шт.

21

K924321

VALVE

seat 928525

1шт.

22

K924117

PLUNGER

928525

1шт.

23

K625233

SPRING

928525

1шт.

24

K24554

O-RING

'O' ring, 3/8 in. int. dia. 928525

1шт.

25

K924116

PLUG

5/8 UNF, special 928525

1шт.

26

K928524

VALVE

relief valve--pre-set assembly 715383 onward

1шт.

26

K919417

VALVE

relief valve--pre-set assembly, Serial Range: 700001-715382

1шт.

27

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. relief valves to main frame

2шт.

28

K600608

BOLT

7/16 UNC x 2 1/4 in. relief valves to main frame

3шт.

29

K608315

STUD

7/16 UNC x 2 3/4 in. relief valves to main frame

1шт.

280717

NUT,7/16"-14, G5

Relief valves to main frame 7/16"-14, G5

1шт.

K19483

SPRING WASHER

spring washer, 7/16 in. relief valves to main frame

4шт.

K626522

SEALING WASHER

sealing washer, 7/16 in.

2шт.

30

K919808

VALVE

combining valve assembly

1шт.

31

K623557

O-RING

'O' ring, 9/16 in. int. dia. 919808

2шт.

32

K919702

SPOOL

extension--spool 919808

1шт.

34

K919703

KNOB

919808

1шт.

35

K919704

CAP

919808

1шт.

36

K923576

SPARE PART

cap (supersedes 919705) 919808

1шт.

37

K915393

FOAM

breather pad 919808

1шт.

38

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in. 919808

2шт.

K614946

SCREW,Pan, #10 - 32 x 3/4"

No. 10 UNF x 3/4 in. 919808

2шт.

K19488

SPRING WASHER

spring washer, 3/16 in. 919808

4шт.

39

K619528

PLUG

7/8 UNF

1шт.

K30085

GASKET

fibre washer, 7/8 in.

1шт.

40

K919242

COVER

plate

1шт.

41

K917387

GASKET

cover and valve to axle case

1шт.

42

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cover and valve to axle case Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

43

K600421

BOLT

3/8 UNC x 4 1/4 in. cover and valve to axle case

1шт.

44

K600419

BOLT

3/8 UNC x 3 3/4 in. cover and valve to axle case

2шт.

45

K600417

BOLT

3/8 UNC x 3 1/4 in. cover and valve to axle case

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. cover and valve to axle case

6шт.

46

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. cover and valve to axle case

3шт.

47

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' ring, 3/4 in. int. dia. cover and valve to axle case

2шт.

48

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' ring, 1 3/16 in. int. dia. cover and valve to axle case

2шт.

49

K928773

NO LONGER SERVICED

pipe--control valve to combining valve (s.s. 920124)

1шт.

50

K600405

BOLT

3/8 UNC x 1 5/8 in. pipe to control valve

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipe to control valve

2шт.

51

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' ring, 7/16 in. int. dia. pipe to control valve

2шт.

52

K623557

O-RING

'O' ring, 9/16 in. int. dia.

2шт.

53

K915344

WASHER

locating plate

1шт.

54

K603662

SCREW

setscrew, 1/4 UNC x 5/8 in.

2шт.

55

K626026

FITTING

union--combining valve outlet

1шт.

K30085

GASKET

fibre washer, 7/8 in.

1шт.

56

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' ring, 5/8 in. int. dia.

1шт.

57

K919244

PIPE,16.375, 4.875" L

--combining valve to ram cylinder

1шт.

58

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. (replaces 15290)

1шт.

59

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.
