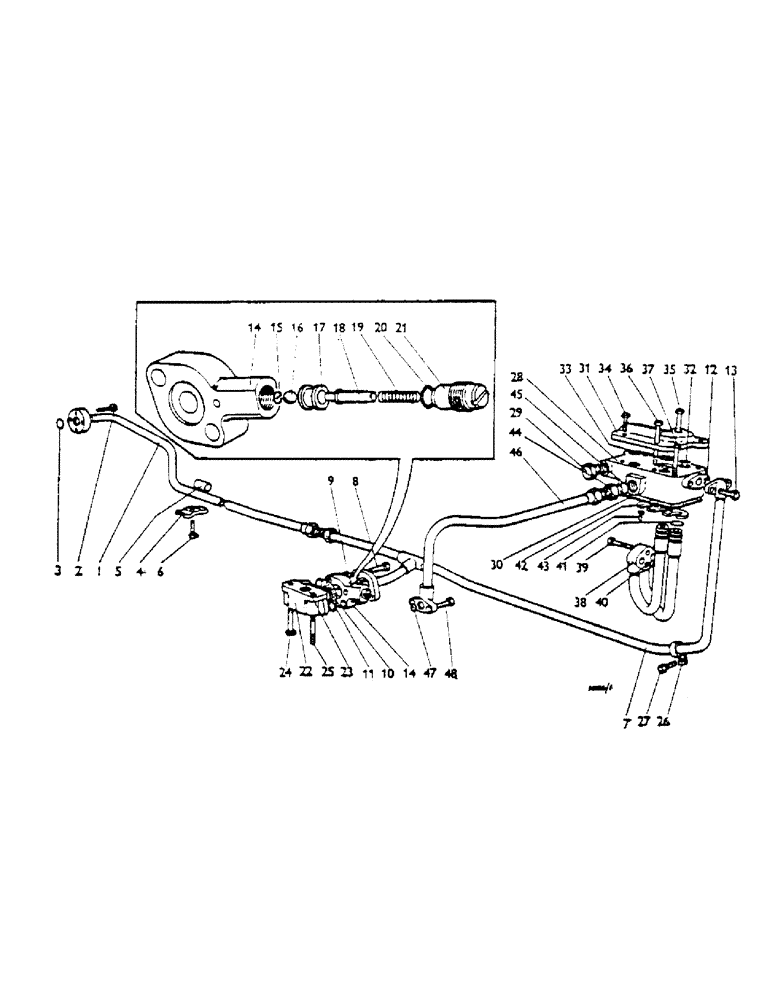

Запчасти Case IH 1200 (040) - HIGH-PRESSURE HYDRAULIC PIPES, SINGLE PUMP (07) - HYDRAULIC SYSTEM

1

K919408

PIPE

--pump outlet

1шт.

2

K606504

SCREW

1/4 UNC x 1 in., Serial Range: pipe-pump

4шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' ring, 5/8 in. int. dia. pipe to pump

1шт.

4

K916899

BRACKET

--outlet pipe

2шт.

5

K919418

SUPPORT

block

2шт.

6

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

7

K928526

PIPE

--relief valve to distribution, 715383 onward block

1шт.

7

K919410

NO LONGER SERVICED

pipe--relief valve to distribution, Serial Range: 700001-715382

1шт.

8

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in.--pipe to relief valve supersedes 602905, 715383 onward block

2шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in. pipe to relief valve

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipe to relief valve

2шт.

9

K928522

SEAL

pipe to relief valve

1шт.

10

K919415

SEAL

pipe to relief valve

1шт.

11

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

'O' ring, 13/16 in. int. dia. pipe to relief valve

2шт.

12

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. pipe, replaces 15290 to distribution block

1шт.

13

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in. pipe to distribution block

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. pipe to distribution block

2шт.

K928525

VALVE

bleed valve 715383 onward

1шт.

14

K928518

HOUSING

body 928525

1шт.

15

K924115

BALL

retainer--ball 928525

1шт.

16

K600089

X

ball, 9/32 in. dia. 928525

1шт.

K626792

WASHER

5/16 in., special 928525

1шт.

17

K924321

VALVE

seat 928525

1шт.

18

K924117

PLUNGER

928525

1шт.

19

K625233

SPRING

928525

1шт.

20

K24554

O-RING

'O' ring, 3/8 in. int. dia. 928525

1шт.

21

K924116

PLUG

5/8 UNF, special 928525

1шт.

22

K928524

VALVE

relief valve (pre-set assembly) 715383 onward

1шт.

22

K919417

VALVE

relief valve (pre-set assembly) 700001 to 715382 715383 onward

1шт.

23

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. relief valve to main frame

1шт.

24

K600608

BOLT

7/16 UNC x 2 1/4 in. relief valve to main frame

1шт.

25

K608315

STUD

7/16 UNC x 2 3/4 in. relief valve to main frame

1шт.

280717

NUT,7/16"-14, G5

Relief valve to main frame 7/16"-14, G5

1шт.

K626522

SEALING WASHER

sealing washer, 7/16 in. relief valve to main frame (replaces 19483)

2шт.

26

K621686

CLIP

--right-hand hitch bracket

1шт.

K628240

STRIP

rubber strip

1шт.

27

K602906

SCREW

setscrew, 3/8 UNC x 1 1/4 in. (replaces 602903)

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

28

K919241

DISTRIBUTOR

distribution block

1шт.

29

K619528

PLUG

7/8 UNF

1шт.

K30085

GASKET

fibre washer, 7/8 in.

1шт.

30

K917387

GASKET

1шт.

31

K919242

COVER

plate

1шт.

32

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia.

5шт.

33

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' ring, 1 3/16 in. int. dia.

1шт.

34

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.

35

K600414

BOLT

3/8 UNC x 2 3/4 in.

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

36

K600562

BOLT

3/8 UNC x 3 in. (replaces 600416)

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.

37

K600418

BOLT

3/8 UNC x 3 1/2 in.

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

38

K928773

NO LONGER SERVICED

pipe--control valve to distribution, replaces 920124 block

1шт.

39

K600405

BOLT

3/8 UNC x 1 5/8 in. pipe to control valve

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipe to control valve

2шт.

40

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' ring, 7/16 in. int. dia. pipe to control valve

2шт.

41

K623557

O-RING

'O' ring, 9/16 in. int. dia.

2шт.

42

K915344

WASHER

locating plate

1шт.

43

K603662

SCREW

setscrew, 1/4 UNC x 5/8 in.

2шт.

44

K626026

FITTING

union--distribution block outlet

1шт.

K30085

GASKET

fibre washer, 7/8 in.

1шт.

45

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' ring, 5/8 in. int. dia.

1шт.

46

K919244

PIPE,16.375, 4.875" L

--distribution block to ram cylinder

1шт.

47

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' ring, 11/16 in. int. dia. (replaces 15290)

1шт.

48

K602806

BOLT

setscrew, 5/16 UNC x 1 1/8 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.
