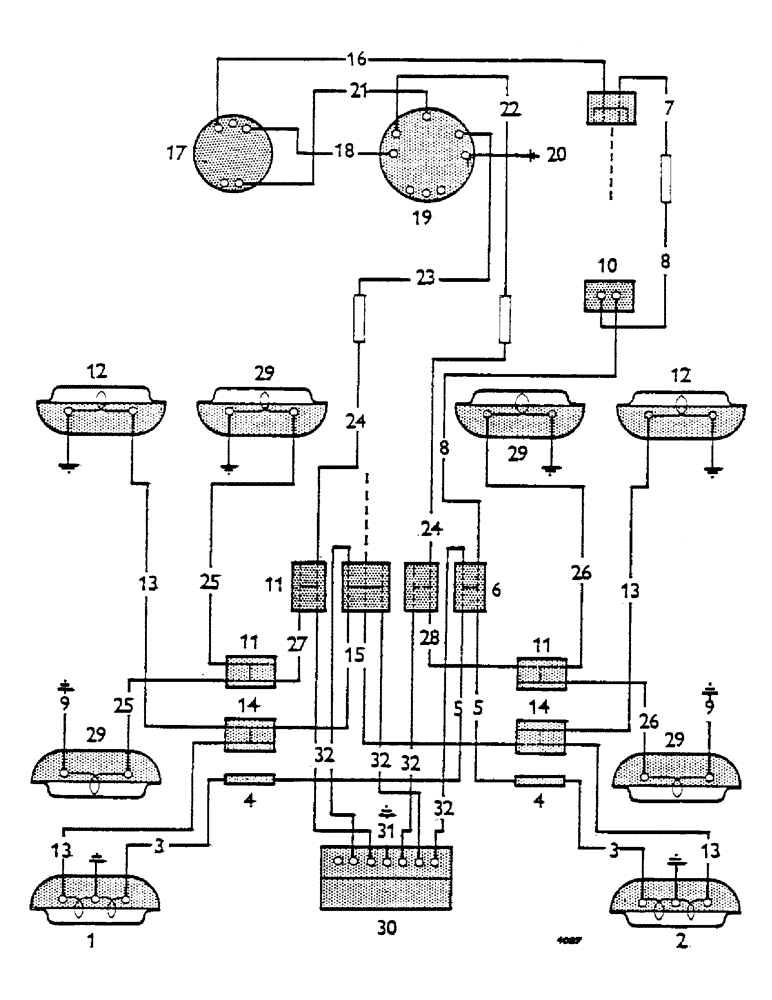

Запчасти Case IH 1200 (126) - SIDE AND REAR LAMPS, FULL FENDERS (06) - ELECTRICAL SYSTEMS

1

K923783

stop/rear lamp, left-hand

1шт.

2

K923782

HEADLIGHT

stop/rear lamp, right-hand, U1243 (925758) (side and stop/rear

1шт.

3

K925290

STOP

lead--connector to stop lamp, U1243 (925758) (side and stop/rear

2шт.

4

K67916

ELEC CONNECTOR

single connector, U1243 (925758) (side and stop/rear

2шт.

5

K925284

ELECTRICAL WIRE

lead--stop lamp, connector to, U1243 (925758) (side and stop/rear connector

2шт.

6

K86230

CONNECTOR, ELEC

double connector, U1243 (925758) (side and stop/rear

1шт.

7

K923642

SPARE PART

lead--ignition switch to connector, U1243 (925758) (side and stop/rear

1шт.

8

K923599

NO LONGER SERVICED

lead--stop lamp switch to connector, U1243 (925758) (side and stop/rear

1шт.

9

K908902

WIRE

lead--stop lamps to earth, U1243 (925758) (side and stop/rear

4шт.

K11519

WASHER

lockwasher, 3/16 in., U1243 (925758) (side and stop/rear

4шт.

K617080

NUT

No. 10 UNF, U1243 (925758) (side and stop/rear

4шт.

10

K917301

LIGHT SWITCH

switch--stop lamp, U1243 (925758) (side and stop/rear

1шт.

K10863

screw, 4 BA x 3/8 in., U1243 (925758) (side and stop/rear

2шт.

K19487

WASHER

spring washer, 1/8 in., U1243 (925758) (side and stop/rear

2шт.

K19418

nut, 4 BA, U1243 (925758) (side and stop/rear

2шт.

K924096

bracket--switch spring, U1243 (925758) (side and stop/rear

1шт.

K624718

SCREW

5 BA x 3/4 in. switch to, U1243 (925758) (side and stop/rear stop light bracket

2шт.

K19487

WASHER

spring washer, 1/8 in. switch to, U1243 (925758) (side and stop/rear stop light bracket

2шт.

K19419

NUT

5 BA switch to stop light, U1243 (925758) (side and stop/rear bracket

2шт.

K920970

BRACKET

--switch, U1243 (925758) (side and stop/rear

1шт.

K621633

CABLE

clip, U1243 (925758) (side and stop/rear

2шт.

11

K86230

CONNECTOR, ELEC

double connector, U1243 (925758) (side and stop/rear

4шт.

12

K921567

INDICATOR LIGHT

side lamp, U1243 (925758) (side and stop/rear

2шт.

K615408

SCREW,Pan, #10 - 32 x 1"

No. 10 UNF side lamps to, U1243 (925758) (side and stop/rear fenders

4шт.

K626340

RING

spring washer, 3/16 in. side lamps, U1243 (925758) (side and, Serial Range: stop/rear-fenders

4шт.

13

K925291

LACING, BELT

lead--side and stop lamps, U1243 (925758) (side and stop/rear

4шт.

14

K86230

CONNECTOR, ELEC

double connector, U1243 (925758) (side and stop/rear

2шт.

15

K925283

NO LONGER SERVICED

lead--side lamps, U1243 (925758) (side and stop/rear

2шт.

K908905

CONNECTOR, ELEC

three way connector, U1243 (925758) (side and stop/rear

1шт.

K925489

harness--seven-point connector, U1243 (925758) (side and stop/rear

1шт.

K923570

cable guard, U1243 (925758) (side and stop/rear

1шт.

K920927

CABLE

tube, left-hand, U1243 (925758) (side and stop/rear

1шт.

K920926

CABLE

tube, right-hand, U1243 (925758) (side and stop/rear

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

fenders, U1243 (925758) (side and stop/rear

10шт.

K627703

grommet fenders, U1243 (925758) (side and stop/rear

4шт.

K627704

GROMMET

fenders, U1243 (925758) (side and stop/rear

4шт.

K913554

NO LONGER SERVICED

reflector, U1243 (925758) (side and stop/rear

2шт.

K916304

BRACKET

left-hand, U1243 (925758) (side and stop/rear

1шт.

K916305

BRACKET

right-hand, U1243 (925758) (side and stop/rear

1шт.

K603924

SCREW

1/4 UNC x 1/2 in. bracket to, U1243 (925758) (side and stop/rear fenders

4шт.

K626341

SPRING WASHER

spring washer, 1/4 in. bracket to, U1243 (925758) (side and stop/rear fenders

4шт.

K607043

NUT

1/4 UNC bracket to fenders, U1243 (925758) (side and stop/rear

4шт.

16

K926316

NO LONGER SERVICED

lead--four-way connector to valve, flashing direction indicator lamps (optional equipment)

1шт.

17

K913564

INDICATOR LIGHT

valve--flashing indicators, U1234 (925522), direction indicator lamps (optional equipment)

1шт.

K605633

SCREW

1/4 UNC x 1/2 in. valve to, U1234 (925522) (flashing direction instrument panel), indicator lamps (optional equipment)

1шт.

K626341

SPRING WASHER

spring washer, 1/4 in. valve to, U1234 (925522) (flashing direction instrument panel, indicator lamps (optional equipment)

1шт.

K607043

NUT

1/4 UNC valve to instrument, U1234 (925522) (flashing direction panel, indicator lamps (optinal equipment)

1шт.

18

K926317

VALVE

lead--valve to switch, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

19

K913565

LIGHT SWITCH

switch--flashing indicators, U1234 (925522) (flashing direction, lamps (optional equipment)

1шт.

bulb, 12 volt, 2 watt, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

20

K923592

ELECTRICAL WIRE

lead--switch to earth, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

21

K925297

NO LONGER SERVICED

lead--valve to switch, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

22

K925295

SWITCH

lead--switch to connector, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

23

K925298

SWITCH

lead--switch to connector, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

24

K925293

ELECTRICAL WIRE

lead--connector to connector, U1234 (925522) (flashing direction, indicator lamps (optional equipment)

1шт.

25

K925288

LAMP

lead, connector to lamps, left-hand, flashing direction indicator, (optional equipment)

2шт.

26

K925289

LAMP

lead, connector to lamps, right-hand, flashing direction indicator, (optional equipment)

2шт.

27

K925286

ELECTRICAL WIRE

lead, lamp, left-hand, U1234 (925522) (side and stop/rear, flashing direction indicator, (optional equipment)

1шт.

28

K926215

CABLE

lead, lamp, right-hand, U1234 (925522) (side and stop/rear, flashing direction indicator, (optional equipment)

1шт.

29

K925294

LAMP

flashing indicator lamp, U1234 (925522) (side and stop/rear, (optional equipment)

4шт.

K615408

SCREW,Pan, #10 - 32 x 1"

No. 10 UNF x 1 in., U1234 (925522) (side and stop/rear, flashing direction indicator lamps (optional equipment)

8шт.

K626340

RING

spring washer, 3/16 in., U1234 (925522) (side and stop/rear, flashing direction indicator lamps (optional equipment

8шт.

K908902

WIRE

lead--earth lamps to fenders, U1234 (925522) (side and stop/rear, flashing direction indicator (optional equipment

4шт.

K11519

WASHER

lockwasher, 3/16 in. lamps to, U1234 (925522) (side and stop/rear fenders, flashing direction indicator (optional equipment

4шт.

30

K913566

POINT

socket, seven-point U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.

K928546

PLATE

--socket U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.

K627704

GROMMET

1 in. dia. U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.

K614950

SCREW

No. 10 UNF x 1 1/4 in., U1281 (925760) (trailer socket) socket to bracket, flashing direction indicator lamps (optional equipment

3шт.

K626340

RING

spring washer, 3/16 in. socket to, U1281 (925760) (trailer socket) bracket, flashing direction indicator lamps (optional equipment

3шт.

K617080

NUT

No. 10 UNF socket to bracket U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

3шт.

31

K923592

ELECTRICAL WIRE

lead--socket to earth U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.

K926331

BRACKET

--trailer socket U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.

K602733

SCREW

setscrew, 1/4 UNC x 5/8 in. bracket, U1281 (925760) (trailer socket) to seat bracket, flashing direction indicator lamps (optional equipment

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in. bracket to, U1281 (925760) (trailer socket) seat bracket, flashing direction indicator lamps (optional equipment

2шт.

K607043

NUT

1/4 UNC bracket to seat, U1281 (925760) (trailer socket) bracket, flashing direction indicator lamps (optional equipment

2шт.

32

K925489

harness--connector to socket U1281 (925760) (trailer socket), flashing direction indicator lamps (optional equipment

1шт.
