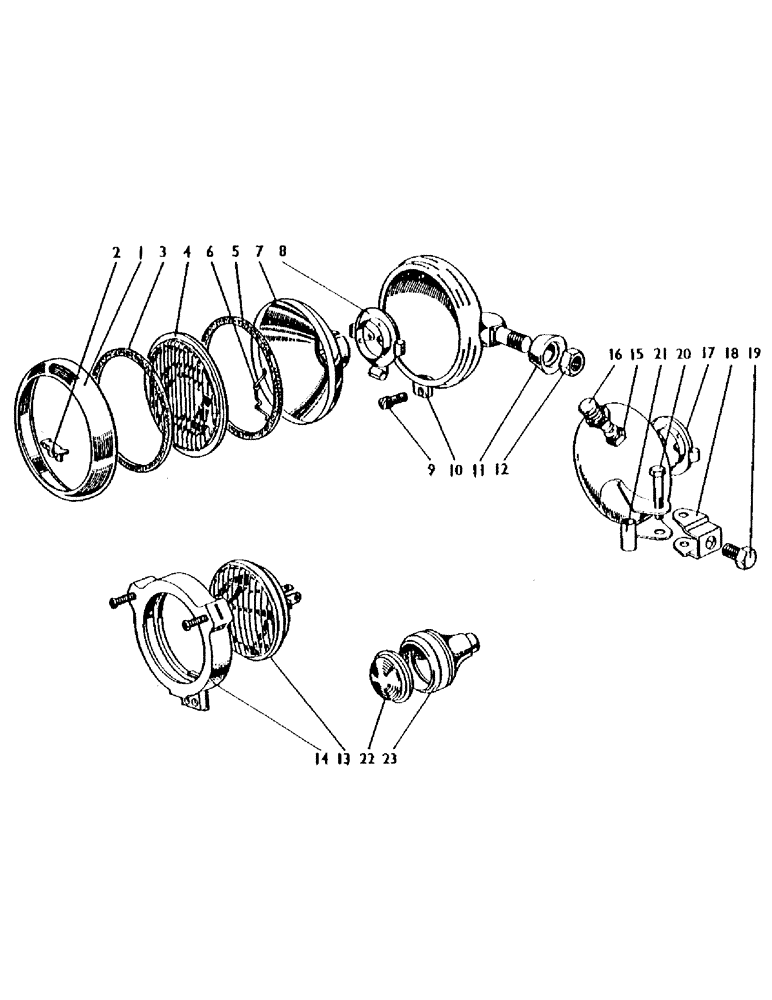

Запчасти Case IH 1200 (124) - LAMP ASSEMBLIES (06) - ELECTRICAL SYSTEMS

K921082

LAMP

headlamp assembly, left-hand (supersedes 915865)

1шт.

K921083

LAMP

headlamp assembly, right-hand (supersedes 915866)

1шт.

bulb, 28 mm, 12 volt, 35/35 watt, pre-focus

1шт.

1

K962349

BEZEL

rim (replaces 961610) 921082 921083

1шт.

2

K960879

BEZEL

rim catch 921082 921083

1шт.

3

K960898

GASKET

--lens to rim 921082 921083

1шт.

4

K960892

LENS

921082 921083

1шт.

5

K960874

GASKET

--lens to reflector 921082 921083

1шт.

6

K960876

SPRING

retainer 921082 921083

4шт.

7

K961615

NO LONGER SERVICED

reflector 921082 921083

1шт.

8

K961611

NO LONGER SERVICED

centre piece and contacts 921082 921083

1шт.

9

K960873

GROUND STRAP

lead--earth 921082 921083

1шт.

K960880

SCREW

--rim retaining 921082 921083

1шт.

10

K961612

HOUSING

screw catch--rim retaining 921082 921083

1шт.

11

K961613

PEDESTAL

921082 921083

1шт.

12

K961614

NUT

9/16 in. 921082 921083

1шт.

K915874

HEADLAMP

assembly

2шт.

13

K962146

BEAM

sealed beam unit, 12 volt, 40/40, 915874 watt

1шт.

14

K961759

MOUNTING PARTS

rubber mounting 915874

1шт.

K607040

NUT

No. 8 UNC, Serial Range: headlamps-bonnet

4шт.

K626340

RING

spring washer, 3/16 in., Serial Range: headlamps-bonnet

4шт.

K921081

LAMP

rear floodlamp assembly (supersedes 914107)

1шт.

bulb, 12 volt, 36 watt, pre-focus

1шт.

15

K962620

LIGHT SWITCH

switch (supersedes 961080) 921081

1шт.

K961082

NUT

--switch 921081

1шт.

16

K962621

COVER ASSY

rubber cover--switch (supersedes, 921081 961081)

1шт.

17

K961616

NO LONGER SERVICED

centre piece and contacts 921081

1шт.

K961771

NO LONGER SERVICED

lead--feed 921081

1шт.

1

K962349

BEZEL

rim (replaces 961610) 921081

1шт.

2

K960879

BEZEL

rim catch 921081

1шт.

3

K960989

NO LONGER SERVICED

gasket--lens to rim 921081

1шт.

4

K962334

LENS

(replaces 960892) 921081

1шт.

5

K960874

GASKET

--lens to reflector 921081

1шт.

6

K960876

SPRING

retainer 921081

4шт.

7

K961615

NO LONGER SERVICED

reflector 921081

1шт.

9

K960880

SCREW

--rim retaining 921081

1шт.

10

K961612

HOUSING

screw catch--rim retaining 921081

1шт.

18

K910853

bracket 921081

1шт.

20

K610050

BOLT

1/4 UNF x 2 1/4 in. 921081

1шт.

K626552

WASHER

shakeproof washer, 1/4 in. 921081

2шт.

21

K912300

COLLAR

distance piece 921081

1шт.

K626704

spring washer, 1/4 in.--double coil 921081

1шт.

K607215

NUT

wing nut, 1/4 UNF 921081

1шт.

19

K603141

SCREW

setscrew, 1/2 UNC x 1 1/4 in. bracket to fender (replaces 603136)

1шт.

K627067

BUSHING

distance piece, Serial Range: bracket-fender

1шт.

K626510

WASHER

shakeproof washer, 1/2 in., Serial Range: bracket-fender

1шт.

K626686

WASHER

1/2 in. bracket to fender (replaces 19474)

1шт.

280431

NUT,1/2"-13, G5

Bracket to fender 1/2"-13, G5

1шт.

K921234

INDICATOR LIGHT

side lamp assembly, right-hand (supersedes 916838)

1шт.

K921236

INDICATOR LIGHT

side lamp assembly, left-hand (supersedes 916836)

1шт.

bulb, 12 volt, 6 watt, double contact

1шт.

22

K960887

LENS

clear 921234 921236

1шт.

23

K962195

SPARE PART SET

rubber mounting 921234 921236

1шт.

K618000

stud, 1/4 UNF x 13/16 in. 921234 921236

2шт.

K921233

LAMP

rear lamp assembly, right-hand (supersedes 916835)

1шт.

K921235

LAMP

rear lamp assembly, left-hand (supersedes 916837)

1шт.

bulb, 12 volt, 6 watt, double contact

1шт.

K960888

LENS

red 921233 921235

1шт.

23

K962195

SPARE PART SET

rubber mounting 921233 921235

1шт.

K618000

stud, 1/4 UNF x 13/16 in. 921233 921235

2шт.

K616980

NUT

1/4 UNF side/rear, Serial Range: lamps-fenders

8шт.

K626341

SPRING WASHER

spring washer, 1/4 in. side/rear, Serial Range: lamps-fenders

8шт.
