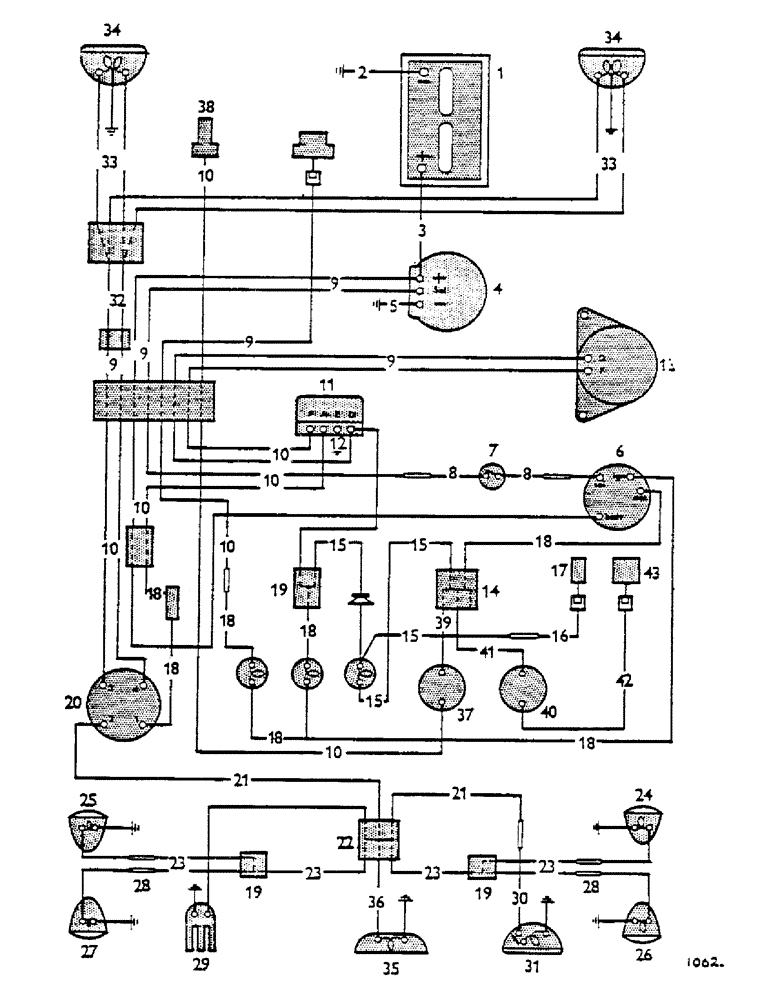

Запчасти Case IH 1200 (116) - ELECTRICAL EQUIPMENT, TRACTOR 703305 ONWARD (06) - ELECTRICAL SYSTEMS

1

K918881

SPARE PART

battery, 12 volt (Exide 6/TXAZ 15R), standard battery

1шт.

K909760

CLAMP

clamp standard battery

1шт.

K916333

STUD

stud standard battery

2шт.

1

K929951

SPARE PART

battery, 12 volt (Exide 6/RHAZ 17R), heavy duty battery, Replaces 919713

1шт.

K909760

CLAMP

clamp heavy duty battery

1шт.

K919712

STUD

SPARE PART stud heavy duty battery

2шт.

K19435

NUT

wing nut, 1/4 BSF

2шт.

K19470

WASHER

washer, 1/4 in.

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in.

2шт.

K918883

COVER

battery support

1шт.

K908394

BUSHING

SPARE PART seating pad--battery

1шт.

K917661

PIN

stud, 3/8 UNC

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.

K11522

WASHER

shakeproof washer, 3/8 in.

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

2шт.

K608212

STUD

stud, 3/8 UNC support frame to front extension

4шт.

280136

NUT,3/8"-16, G8

NUT, , Support frame to front extension 3/8"-16, G8

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. support frame to front extension

3шт.

K920955

STAY

strut

1шт.

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. strut to battery support

1шт.

280136

NUT,3/8"-16, G8

NUT, , Strut to battery support 3/8"-16, G8

1шт.

K19472

WASHER

washer, 3/8 in. strut to battery support

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

2

K917372

CABLE

cable--battery, Serial Range: negative-earth

1шт.

3

K917373

CABLE

cable--battery, Serial Range: positive-starter

1шт.

K621621

CABLE

clip--starter cable

1шт.

K87560

CONTACT HOUSING

rubber cover--starter terminal

1шт.

4

K89772

STARTER MOTOR

starter (Lucas M45G)

1шт.

87297386

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

K600406

BOLT

bolt, 3/8 UNC x 1 3/4 in., Serial Range: starter-engine

2шт.

K600410

BOLT

bolt, 3/8 UNC x 2 1/4 in., Serial Range: starter-engine

1шт.

280136

NUT,3/8"-16, G8

NUT, , Starter to engine 3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in., Serial Range: starter-engine

3шт.

5

K918762

CABLE

, Serial Range: cable--starter-earth

1шт.

K19470

WASHER

washer, 1/4 in.

1шт.

K921276

CONDUIT

condult

1шт.

K621618

CLIP

clip, Serial Range: condult-engine

2шт.

280136

NUT,3/8"-16, G8

NUT, , Conduit to engine 3/8"-16, G8

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in., Serial Range: condult-engine

2шт.

K82317

GROMMET

grommet--condult

2шт.

6

K920923

IGNITION SWITCH

isolating and starter switch (Lucas 54324154/128SA)

1шт.

K962338

KEY

key--switch

1шт.

K920930

NUT

nut--switch retaining

1шт.

K920931

WASHER

spring washer, 3/4 in.

1шт.

7

K36384

SWITCH

safety switch--starter

1шт.

K919520

SPARE PART cover--switch

1шт.

K919517

SLEEVE

connecting sleeve switch to clutch pedal

1шт.

K11583

SPARE PART screw, 4 BA x 5/16 in. switch to clutch pedal

1шт.

K624928

SPRING

spring switch to clutch pedal

1шт.

K928112

BRACKET

bracket 709085 onward

1шт.

K19522

PIN

split pin, 1/16 x 5/8 in. 709085 onward

1шт.

K921394

bracket, Serial Range: 700001-709084

1шт.

K19535

PIN

split pin, 1/8 x 3/4 in., Serial Range: 700001-709084

1шт.

8

K921177

CABLE

lead--safety switch

1шт.

K920876

CABLE

cable tube--safety switch lead

1шт.

K602705

SCREW

setscrew, 1/4 UNC x 1 in., Serial Range: tube-frame

1шт.

K607000

NUT

nut, 1/4 UNC, Serial Range: tube-frame

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in., Serial Range: tube-frame

1шт.

9

K921162

HARNESS

wiring harness (with half 8-way connector)

1шт.

10

K920979

HARNESS

SPARE PART wiring harness (with half 8-way connector)

1шт.

K621600

CLIP

Nylastic clip harness to fuel tank

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

screw, 10 UNF x 1/2 in. harness to fuel tank

1шт.

K617080

NUT

nut, 10 UNF harness to fuel tank

1шт.

K626340

RING

spring washer, 3/16 in. harness to fuel tank

1шт.

11

K928729

REGULATOR

regulator--22 amp dynamo

1шт.

11

K908901

REGULATOR

regulator--11 amp dynamo

1шт.

K603926

SCREW

screw, 1/4 UNC x 3/4 in., Serial Range: regulator-bracket

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in., Serial Range: regulator-bracket

2шт.

K607043

NUT

nut, 1/4 UNC, Serial Range: regulator-bracket

2шт.

K925268

BLADE

connector--earth lead

1шт.

12

K924142

CABLE

, Serial Range: lead--regulator-earth

1шт.

K928643

GENERATOR

dynamo (Lucas C40T), 22 amp U1317 (925869)

1шт.

C7NN10000CLPR

REMAN-GENERATOR

Remanufactured Generator, 12 volt 22 ampere

1шт.

C7NN10000CLPC

CORE-GENERATOR

Return Number, 12 volt 22 ampere

1шт.

K928658

FAN

fan U1317 (925869)

1шт.

K928717

GUARD

guard--pulley U1317 (925869)

1шт.

K928718

SPARE PART cover U1317 (925869)

1шт.

K13095

CLIP

hose clip, 4 in. dia. U1317 (925869)

1шт.

13

K913986

NO LONGER SERVICED

dynamo (Lucas C40A), 11 amp

1шт.

K912758

BRACKET

support bracket dynamo fixing to cylinder block

2шт.

K602903

SCREW

bolt, 3/8 UNC x 7/8 in. dynamo fixing to cylinder block

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. dynamo fixing to cylinder block

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 x 1 in. dynamo fixing to cylinder block

2шт.

9635082

NUT,5/16" - 18, Gr 5

nut, 5/16 UNC dynamo fixing to cylinder block

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. dynamo fixing to cylinder block

2шт.

K902063

STRAP

adjuster strap dynamo fixing to cylinder block

1шт.

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

setscrew, 5/16 UNC x 7/8 in. dynamo fixing to cylinder block

1шт.

K902420

NO LONGER SERVICED

washer, 5/16 in. dynamo fixing to cylinder block

1шт.

K19481

SPRING WASHER

spring washer, 5/16 in. dynamo fixing to cylinder block

1шт.

K900757

PULLEY

pulley--dynamo

1шт.

K928717

GUARD

guard--dynamo pulley (replaces 912757)

1шт.

14

K925309

CONNECTOR, ELEC

CONNECTOR four way connector (replaces 908905)

1шт.

15

K921439

HARNESS

harness--oil filter warning lamp

1шт.

16

K921364

CABLE

lead--switch to warning lamp

1шт.

K14393

CABLE

clip--lead to brake cross shaft tube

1шт.

17

K921317

SENDER UNIT

switch--oil filter warning lamp

1шт.

K923874

COVER

cover--switch

1шт.

18

K921150

HARNESS

SPARE PART harness--isolating switch and fuse holder

1шт.

K904459

FUSE

fuse, 25 amp.

1шт.

19

K86230

CONNECTOR, ELEC

CONNECTOR double connector

4шт.

20

K902464

SWITCH

lighting switch (Lucas 54033370) four-position

1шт.

21

K923776

BELT

lead (side/rear lamp)--switch to three-way connector

1шт.

22

K908905

CONNECTOR, ELEC

CONNECTOR three-way connector

1шт.

23

K921240

ELECTRICAL WIRE

WIRE lead (side/rear, Serial Range: lamps)--connector-connector

6шт.

K917147

SPARE PART guard side and rear lamp leads

1шт.

K621633

CABLE

clip side and rear lamp leads

1шт.

24

K921234

INDICATOR LIGHT

side lamp, right-hand see Figure 124

1шт.

25

K921236

INDICATOR LIGHT

side lamp, left-hand see Figure 124

1шт.

26

K921233

LAMP

rear lamp, right-hand see Figure 124

1шт.

27

K921235

LAMP

rear lamp, left-hand see Figure 124

1шт.

K917231

CABLE

cable tube, left-hand--side and rear lamp wires

1шт.

K919375

CABLE

cable tube, right-hand--side and rear lamp wires

1шт.

K621652

PIPE

clip tubes to frame and fender

4шт.

9635082

NUT,5/16" - 18, Gr 5

nut, 5/16 UNC tubes to frame and fender

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. tubes to frame and fender

2шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

grommet--fenders

2шт.

K24589

GROMMET

grommet--fenders

1шт.

28

K67916

ELEC CONNECTOR

single connector

4шт.

29

K921077

SOCKET/RECEPTACLE

socket--trailer connection

1шт.

K603924

SCREW

screw, 1/4 UNC x 1/2 in., Serial Range: socket-earth

1шт.

K626341

SPRING WASHER

spring washer, 1/4 in., Serial Range: socket-earth

1шт.

K607043

NUT

nut, 1/4 UNC, Serial Range: socket-earth

1шт.

30

K921241

WIRE

, Serial Range: lead--connector-floodlamp

1шт.

31

K921081

LAMP

rear floodlamp assembly (see Figure 124)

1шт.

32

K921237

ELECTRICAL WIRE

WIRE lead (headlamps)--connector to, inboard headlamps connector

1шт.

33

K921571

ELECTRICAL WIRE

WIRE lead--connector to headlamps inboard headlamps

1шт.

K903822

WASHER

clip--leads to bonnet inboard headlamps

6шт.

34

K915874

HEADLAMP

headlamp assembly (see Figure 124) inboard headlamps

2шт.

K921238

ELECTRICAL WIRE

WIRE lead--harness to headlamps side-mounted headlamps

1шт.

K903822

WASHER

clip--leads to bonnet side-mounted headlamps

8шт.

K921083

LAMP

headlamp assembly, right-hand see, side-mounted headlamps Figure 124

1шт.

K921082

LAMP

headlamp assembly, left-hand see, side-mounted headlamps Figure 124

1шт.

K921573

ELECTRICAL WIRE

WIRE lead--harness to headlamps single filament headlamps

2шт.

K903822

WASHER

clip--leads to bonnet single filament headlamps

9шт.

K915141

LAMP

headlamp, 12 volt, 35 watt, sealed, single filament headlamps beam unit

2шт.

K914196

ELECTRICAL WIRE

WIRE lead--headlamp to earth single filament headlamps

2шт.

35

K82303

SPARE PART

number plate lamp, U1013 (918299) (rear number-plate

1шт.

*

bulb, 12 volt, 6 watt, single, U1013 (918299) (rear number-plate contact

1шт.

K12355

NUT

domed nut, 2 BA, U1013 (918299) (rear number-plate

2шт.

K902460

SUPPORT

lamp bracket, U1013 (918299) (rear number-plate

1шт.

K603924

SCREW

screw, 1/4 UNC x 1/2 in. bracket to, U1013 (918299) (rear number-plate plate

2шт.

K607043

NUT

nut, 1/4 UNC bracket to plate, U1013 (918299) (rear number-plate

2шт.

K19480

SPRING WASHER

spring washer, 1/4 in. bracket to, U1013 (918299) (rear number-plate plate

2шт.

36

K921078

COIL

lead--connector to number-plate, U1013 (918299) (rear number-plate lamp (replaces 921239)

1шт.

K621644

CLIP

clip--lead to number plate, U1013 (918299) (rear number-plate (replaces 903822)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

grommet, U1013 (918299) (rear number-plate

1шт.

37

K921148

ELECTRICAL GAUGE

temperature gauge U1005 (918290) (thermometer)

1шт.

38

K921149

TEMPERATURE SENDER

sender U1005 (918290) (thermometer)

1шт.

K626444

WASHER

copper washer, 3/8 in. U1005 (918290) (thermometer)

1шт.

39

K921128

ELECTRICAL WIRE

WIRE lead--three-way connector to gauge U1005 (918290) (thermometer)

1шт.

40

K921147

ELECTRICAL GAUGE

fuel gauge optional equipment

1шт.

41

K921128

ELECTRICAL WIRE

WIRE lead--gauge to connector optional equipment

1шт.

42

K921156

NO LONGER SERVICED

lead--gauge to tank unit optional equipment

1шт.

43

K916755

FLOAT

tank unit--fuel gauge optional equipment

1шт.

K923642

SPARE PART

lead--three-way connector to, industrial tractor connector

1шт.

K917301

LIGHT SWITCH

switch industrial tractor

1шт.

K917302

clip industrial tractor

1шт.

K624618

screw, 5 BA x 5/8 in. industrial tractor

2шт.

K19419

NUT

nut, 5 BA industrial tractor

2шт.

K19487

WASHER

spring washer, 1/8 in. industrial tractor

2шт.

K924096

bracket--stop-lamp switch industrial tractor

1шт.

K924663

lead--switch to connector industrial tractor

1шт.

K621633

CABLE

clip--lead to gearbox cover industrial tractor

2шт.

K86230

CONNECTOR, ELEC

CONNECTOR double connector industrial tractor

3шт.

K923600

SPARE PART

lead--connector to connector industrial tractor

2шт.

K67916

ELEC CONNECTOR

single connector industrial tractor

2шт.

K923601

SPARE PART

lead--connector to lamp industrial tractor

2шт.

K923783

SPARE PART stop tail lamp, left-hand industrial tractor

1шт.

K923782

HEADLIGHT

SPARE PART stop tail lamp, right-hand industrial tractor

1шт.

K921567

INDICATOR LIGHT

SPARE PART side lamp industrial tractor

2шт.

K614956

screw, 10 UNF x 2 1/4, industrial tractor in.--tail-lamp fixing

4шт.

K614950

SCREW

screw, 10 UNF x 1 1/4, industrial tractor in.--side-lamp fixing

4шт.

120614

NUT,Hex, #10 - 32

nut, 10 UNF industrial tractor

8шт.

K19488

SPRING WASHER

spring washer, ?/16 in. industrial tractor

8шт.

K908902

WIRE

lead--side and tail lamps to earth industrial tractor

4шт.

K36384

SWITCH

Cutch Safety Switch, Lucas no. 76701A

1шт.
