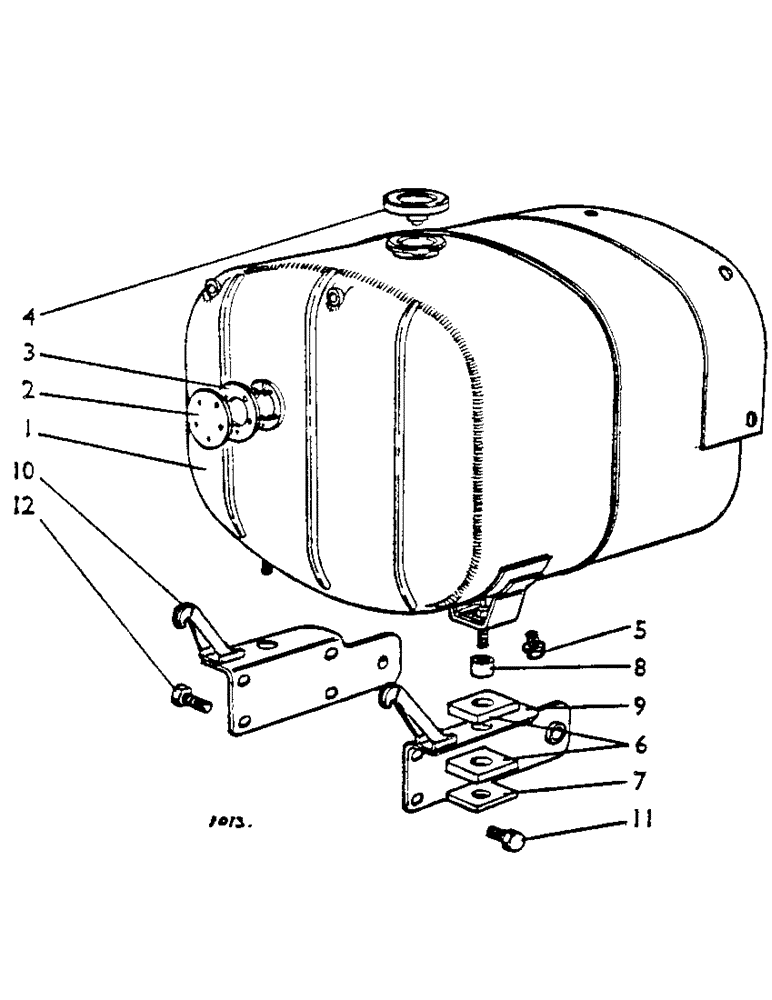

Запчасти Case IH 1200 (023) - FUEL TANK AND FITTINGS (01) - ENGINE

1

K962381

TANK

fuel tank

1шт.

2

K962140

PLATE

blanking plate--fuel gauge aperture 962381

1шт.

3

K916485

GASKET

962381

1шт.

K617980

STUD

No. 10 UNF x 11/16 in. 962381

5шт.

K617080

NUT

No. 10 UNF 962381

5шт.

K626340

RING

spring washer, 3/16 in. 962381

5шт.

4

K901983

CAP

filler cap

1шт.

5

K19581

PLUG

drain plug, 1/4 BSP

1шт.

K19501

WASHER

fibre washer, 1/2 in.

1шт.

6

K916448

INSULATOR BLOCK

rubber washer tank to support brackets

6шт.

7

K916449

WASHER

clamping plate tank to support brackets

3шт.

8

K916450

TUBE

distance tube tank to support brackets

3шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

3шт.

K600404

BOLT

3/8 UNC x 1 1/2 in.

1шт.

280136

NUT,3/8"-16, G8

2шт.

9

K928257

SUPPORT

bracket, left-hand (replaces 916780)

1шт.

10

K928256

SUPPORT

bracket, right-hand (replaces 916779)

1шт.

11

K602982

SCREW,3/8" - 16 x 3/4", Gr S

setscrew, 3/8 UNC x 3/4 in., Serial Range: brackets-frame

3шт.

12

K602983

SCREW

setscrew, 3/8 UNC x 7/8 in., Serial Range: brackets-frame

3шт.

K19482

SPRING WASHER

spring washer, 3/8 in., Serial Range: brackets-frame

6шт.

K19472

WASHER

3/8 in., Serial Range: brackets-frame

3шт.
