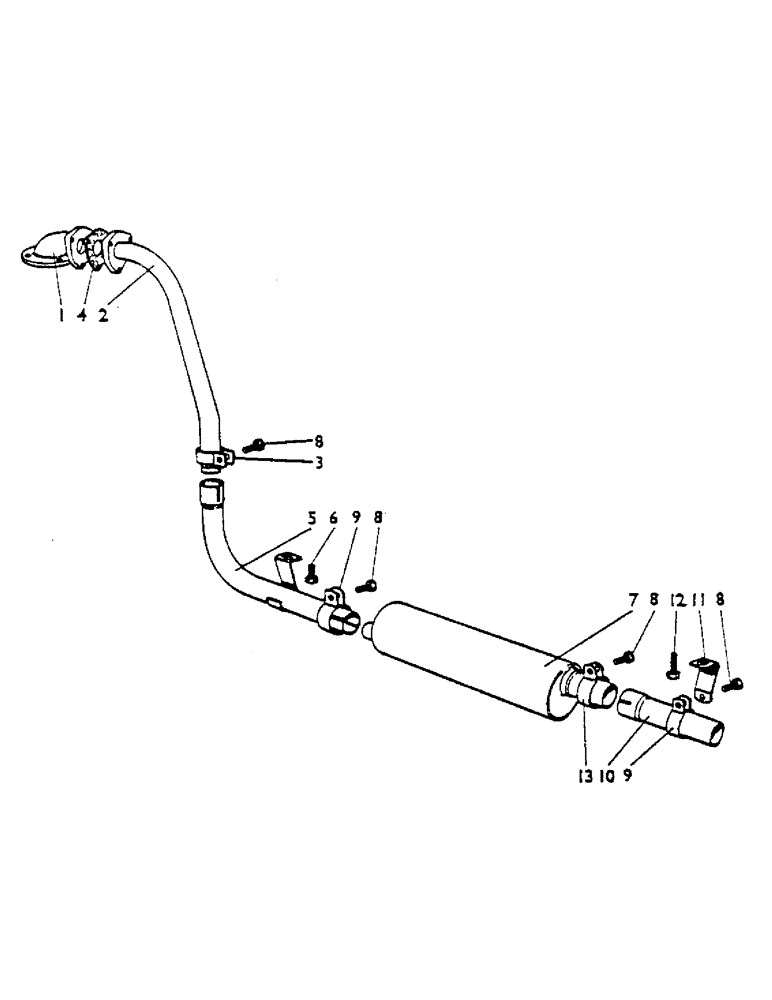

Запчасти Case IH 1200 (022) - DOWNSWEPT EXHAUST, U923, OPTIONAL EQUIPMENT (01) - ENGINE

K919574

X

manifold 703005 onward

1шт.

K919575

PIPE, EXHAUST SYSTEM

pipe--manifold end 703005 onward

1шт.

1

K920682

elbow--exhaust brake to pipe, Serial Range: 700001-703004

1шт.

2

K920680

pipe--exhaust brake end, Serial Range: 700001-703004

1шт.

3

K919581

CLIP

--exhaust pipe

1шт.

K608203

STUD

3/8 UNC x 1 7/16 in., Serial Range: pipe-elbow

3шт.

280136

NUT,3/8"-16, G8

Pipe to elbow 3/8"-16, G8

3шт.

4

K912441

GASKET

, Serial Range: pipe-elbow

1шт.

5

K919578

PIPE, EXHAUST SYSTEM

pipe--silencer end

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. (replaces 602805)

1шт.

K626682

WASHER

5/16 in. (replaces 19471)

1шт.

7

K910539

MUFFLER

silencer

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

setscrew, 5/16 UNC x 3/4 in.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (replaces 607001)

5шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

5шт.

9

K10455

CLIP

2шт.

10

K919652

PIPE

tail pipe

1шт.

11

K919582

SUPPORT

strap

1шт.

12

K603274

SCREW

setscrew, 5/8 UNC x 1 1/2 in., replaces 603306 support strap to hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Support strap to hitch, Replaces 607006 bracket 5/8"-11, G5

1шт.

K19485

WASHER

spring washer, 5/8 in. support strap to hitch bracket

1шт.

13

K914852

CLIP

--silencer

1шт.

K914347

INSERT

--bonnet

1шт.
