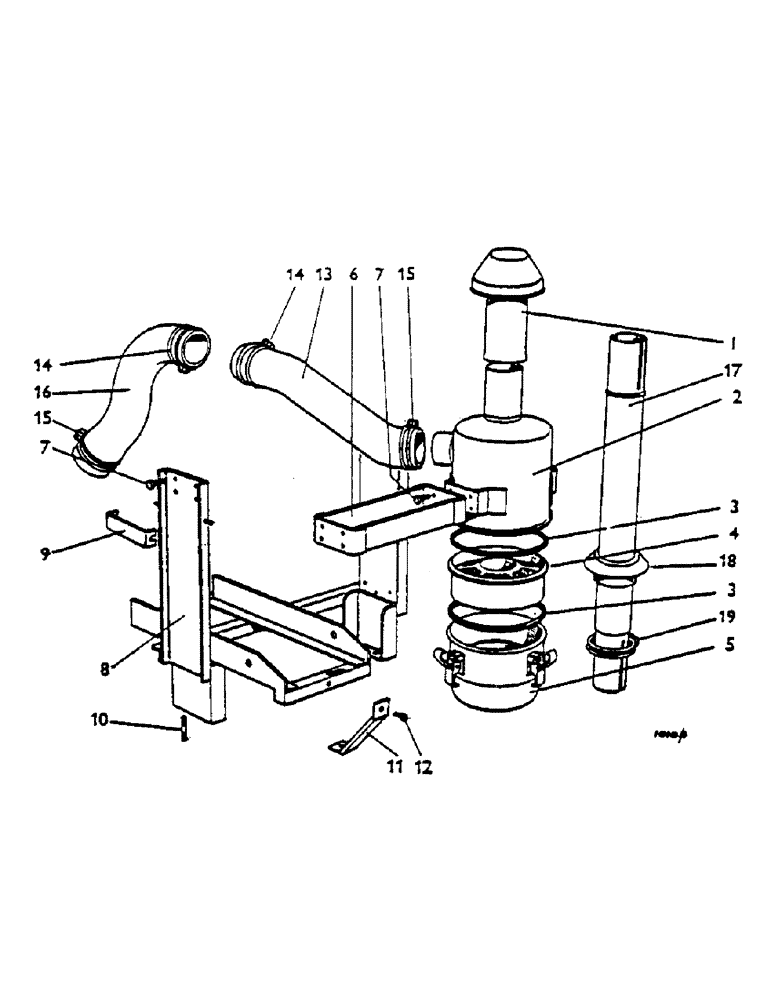

Запчасти Case IH 1200 (020) - AIR CLEANER (01) - ENGINE

1

K918834

CLEANER

pre-cleaner

1шт.

2

K918833

CLEANER

air cleaner assembly

1шт.

3

K962639

SEALING RING

sealing ring (replaces 623585) 918833

2шт.

4

K918842

AIR FILTER

lower element 918833

1шт.

5

K916318

FILTER BOWL

bowl (with toggle clips) 918833

1шт.

6

K917660

BRACKET

spacer bracket

1шт.

7

K602701

BOLT

setscrew, 1/4 UNC x 1/2 in.

12шт.

K607000

NUT

1/4 UNC

4шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

12шт.

8

K917658

SUPPORT

bracket--air cleaner

2шт.

9

K920878

SUPPORT

side bracket

2шт.

K626310

WASHER

3/16 in.

4шт.

K607040

NUT

8 UNC

4шт.

10

K608212

STUD

3/8 UNC support frame to front extension

4шт.

280136

NUT,3/8"-16, G8

Support frame to front extension 3/8"-16, G8

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. support frame to front extension

4шт.

11

K920955

STAY

strut support frame to front extension

1шт.

12

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. support frame to front extension

1шт.

K19472

WASHER

3/8 in. support frame to front extension

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. support frame to front extension

1шт.

280136

NUT,3/8"-16, G8

Support frame to front extension 3/8"-16, G8

1шт.

13

K921980

LARGE HOSE

pipe--air cleaner to radiator 705365 onward

1шт.

K918882

PIPE

--air cleaner to radiator, Serial Range: 700001-705364

1шт.

14

K13082

CLAMP

hose clip, 2 3/8 in. dia. (replaces 622009)

2шт.

15

K13084

CLAMP

hose clip, 2 5/8 in. dia.

2шт.

16

K921973

RADIATOR HOSE

Radiator to Manifold, 705365 onward

1шт.

K916324

HOSE

pipe--radiator to manifold, Serial Range: 700001-705364

1шт.

17

K919720

TUBE

extension pipe, 32 in., air-cleaner extension--optional

1шт.

18

K919721

PIPE

rubber sleeve, air-cleaner extension--optional

1шт.

19

K621941

HOSE

clip--extension, air-cleaner extension--optional

1шт.

K924272

PRECLEANER

pre-cleaner (paper element, U1161 (918599) type)--Purolator

1шт.

K922630

AIR FILTER

paper element U1161 (918599)

1шт.

K921552

PIPE

inlet pipe, 7 1/2 in. U1161 (918599)

1шт.

K919721

PIPE

rubber sleeve U1161 (918599)

1шт.

K12755

CLIP

hose clip, 2 3/8 in. dia. U1161 (918599)

1шт.
