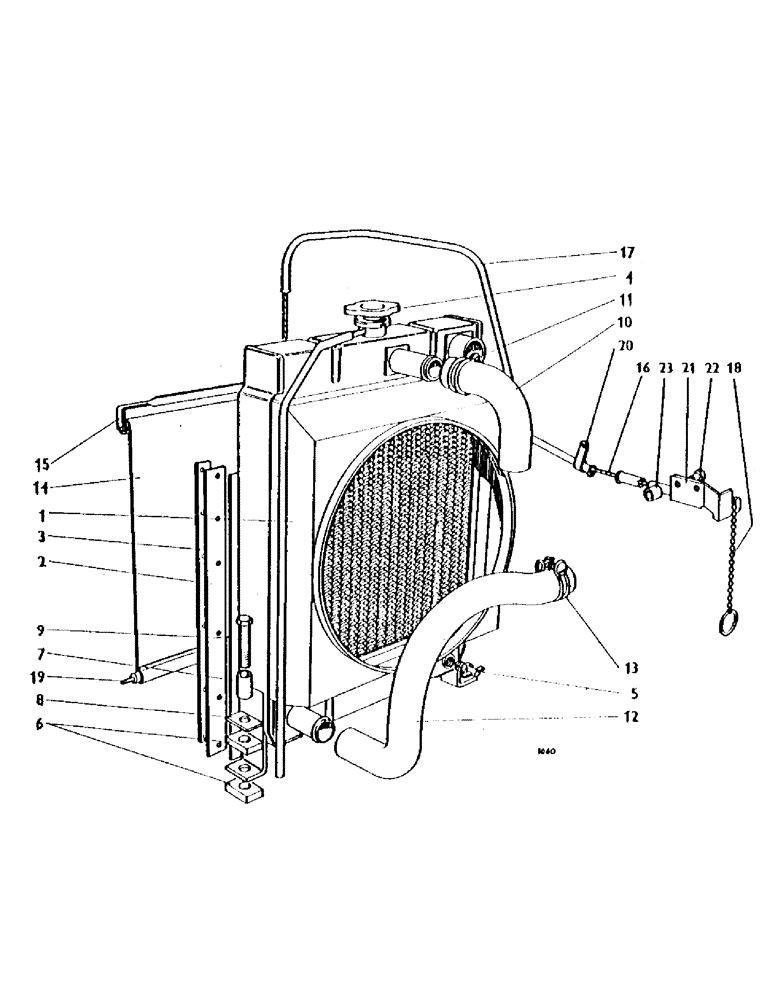

Запчасти Case IH 1200 (018) - RADIATOR AND BLIND, TRACTOR 705365 ONWARD (01) - ENGINE

1

K922080

RADIATOR

--2 1/4 in. block

1шт.

K922081

RADIATOR

--2 3/4 in. block

1шт.

2

K921977

LACING, BELT

side beading 922080 922081

2шт.

3

K921978

PLATE ASSY.

stiffening strip 922080 922081

2шт.

4

K922544

CAP

filler cap 922080 922081

1шт.

5

K622060

PLUG, DRAIN

drain tap, 1/4 BSP

1шт.

K19501

WASHER

fibre washer, 1/2 in.

1шт.

6

K921836

WEDGE

foot packing

1шт.

7

K908823

TUBE,0.562" OD x 0.875" L

distance tube

1шт.

8

K921837

SHIM

clamping plate

2шт.

9

K600406

BOLT

3/8 UNC x 1 3/4 in.

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.

10

K921972

HOSE

--radiator inlet

1шт.

11

K13078

BRACKET

hose clip--1 7/8 in. dia.

3шт.

12

K926603

HOSE

--radiator outlet (replaces 919024)

1шт.

13

K622081

HOSE

clip, 2 in. dia. (replaces 13079)

1шт.

14

K908846

COVER

radiator blind U1327 (925877) (optional equipment)

1шт.

15

K64925

ROD

pull rod U1327 (925877) (optional equipment)

1шт.

16

K921979

SPARE PART

control cord U1327 (925877) (optional equipment)

1шт.

17

K921969

TUBE

U1327 (925877) (optional equipment)

1шт.

18

K916983

NO LONGER SERVICED

ball chain U1327 (925877) (optional equipment)

1шт.

19

K921971

ROD

anchor U1327 (925877) (optional equipment)

1шт.

20

K621616

CLIP

--control tube to inlet, U1327 (925877) (optional equipment) manifold

1шт.

21

K919709

GUIDE

rear guide tube U1327 (925877) (optional equipment)

1шт.

22

K602809

SCREW

setscrew, 5/16 UNC x 1 1/2 in., U1327 (925877) (optional equipment) standard steering

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. standard, U1327 (925877) (optional equipment) steering

2шт.

23

K919710

BUSHING

spacer standard steering U1327 (925877) (optional equipment)

2шт.

K19520

PIN

split pin, 1/16 x 3/8 in. U1327 (925877) (optional equipment)

2шт.

K928608

BRACKET

--tube anchorage hydrostatic, U1327 (925877) (optional equipment) steering

1шт.

K602840

SCREW

setscrew, 5/16 UNC x 1/2 in., U1327 (925877) (optional equipment) hydrostatic steering

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. hydrostatic, U1327 (925877) (optional equipment) steering

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC hydrostatic steering U1327 (925877) (optional equipment)

2шт.
