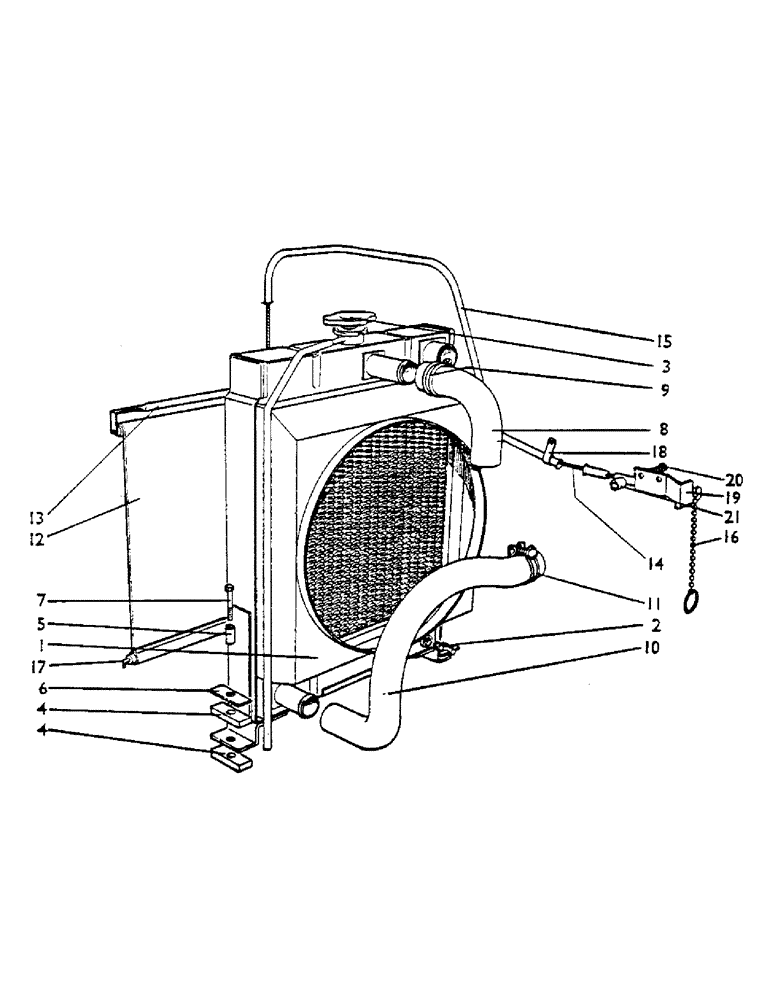

Запчасти Case IH 1200 (017) - RADIATOR AND BLIND, TRACTOR 700001 TO 705364 (01) - ENGINE

1

K918782

RADIATOR

50 mm block

1шт.

2

K622060

PLUG, DRAIN

drain tap, 1/4 BSP

1шт.

K19501

WASHER

fibre washer, 1/2 in.

1шт.

3

K906196

CAP

filler cap (supplied with radiator)

1шт.

4

K908824

NO LONGER SERVICED

foot packing

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

distance tube

2шт.

6

K908822

NO LONGER SERVICED

clamping plate

2шт.

7

K600406

BOLT

3/8 UNC x 1 3/4 in. (replaces 600405)

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

2шт.

8

K916316

HOSE

--radiator inlet

1шт.

9

K13078

BRACKET

hose clip, 1 7/8 in. dia.

3шт.

10

K919024

NO LONGER SERVICED

hose--radiator outlet

1шт.

11

K13079

NO LONGER SERVICED

hose clip, 2 in. dia.

1шт.

12

K908846

COVER

radiator blind U953 (918188) (optional equipment)

1шт.

13

K64925

ROD

pull rod U953 (918188) (optional equipment)

1шт.

14

K916982

NO LONGER SERVICED

control cord U953 (918188) (optional equipment)

1шт.

15

K919708

tube U953 (918188) (optional equipment)

1шт.

16

K916983

NO LONGER SERVICED

ball chain U953 (918188) (optional equipment)

1шт.

17

K36895

NO LONGER SERVICED

anchor U953 (918188) (optional equipment)

1шт.

K11109

NUT

2 BA U953 (918188) (optional equipment)

2шт.

18

K621616

CLIP

--control tube to inlet, U953 (918188) (optional equipment) manifold

1шт.

19

K919709

GUIDE

rear guide tube U953 (918188) (optional equipment)

1шт.

20

K602809

SCREW

setscrew, 5/16 UNC x 1 1/2 in. tube, U953 (918188) (optional, Serial Range: equipment)-steering-box

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. tube to, U953 (918188) (optional equipment) steering-box

2шт.

21

K919710

BUSHING

spacer tube to steering-box U953 (918188) (optional equipment)

2шт.
