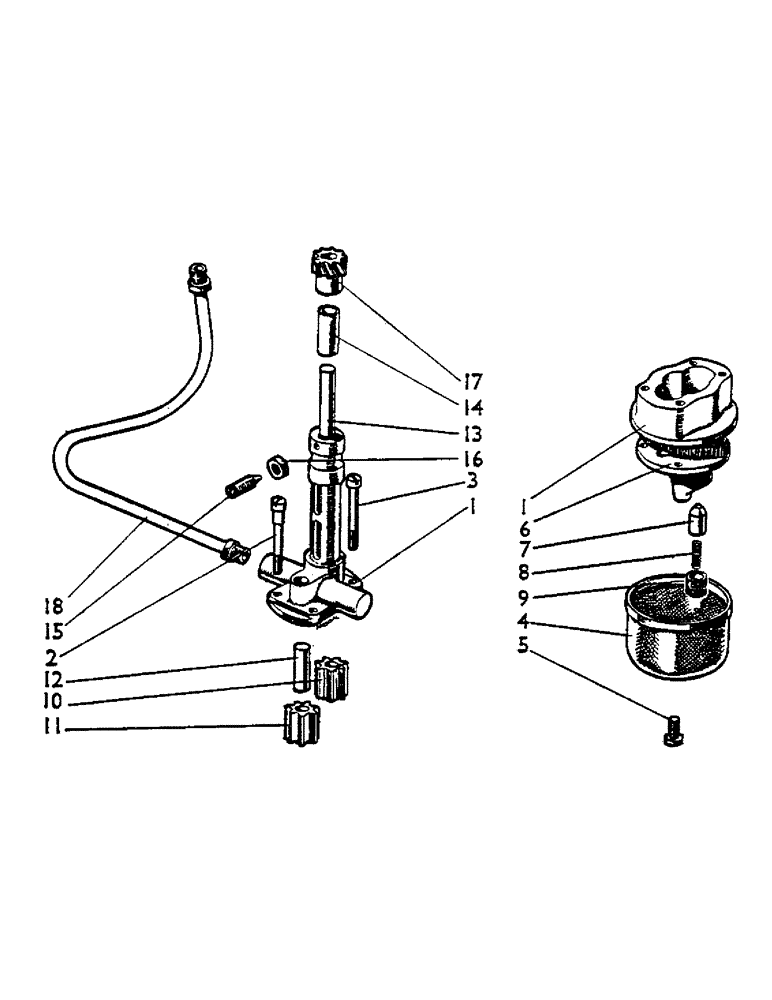

Запчасти Case IH 1200 (015) - OIL PUMP (01) - ENGINE

K919282

PUMP

oil pump assembly

1шт.

1

K962010

PUMP

bracket and gear housing (not supplied separately)

1шт.

2

K902061

STEP BOLT

bolt, 1/4 UNC x 2 1/8 in., special fitting

2шт.

3

K600011

BOLT

1/4 UNC x 2 1/8 in.

2шт.

K607000

NUT

1/4 UNC

4шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

4шт.

4

K12013

FILTER

gauze

1шт.

5

K602701

BOLT

setscrew, 1/4 UNC x 1/2 in.

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

1шт.

K900752

VALVE

relief valve assembly

1шт.

6

K900753

NO LONGER SERVICED

cover--pump body 900752

1шт.

7

K67461

PLUNGER

900752

1шт.

8

K12961

SPRING

900752

1шт.

9

K30013

ADJUSTER

screw--adjusting 900752

1шт.

10

K902058

PINION

driving rotor

1шт.

11

K902059

PINION

driven rotor

1шт.

K19604

KEY

Woodruff No. 405

2шт.

12

K902060

SPINDLE

--driven rotor

1шт.

13

K915748

SPINDLE

driving spindle

1шт.

14

K30016

BUSHING

bush

1шт.

15

K900748

SCREW

locating screw, 7/16 UNC

1шт.

16

K607516

NUT

capped nut, 7/16 UNC (replaces 607053)

1шт.

K14674

WASHER

copper washer, 7/16 in. (replaces 626610)

1шт.

17

K902051

GEAR

spiral pinion

1шт.

18

K915750

PIPE

oil pipe--pump to cylinder block

1шт.
