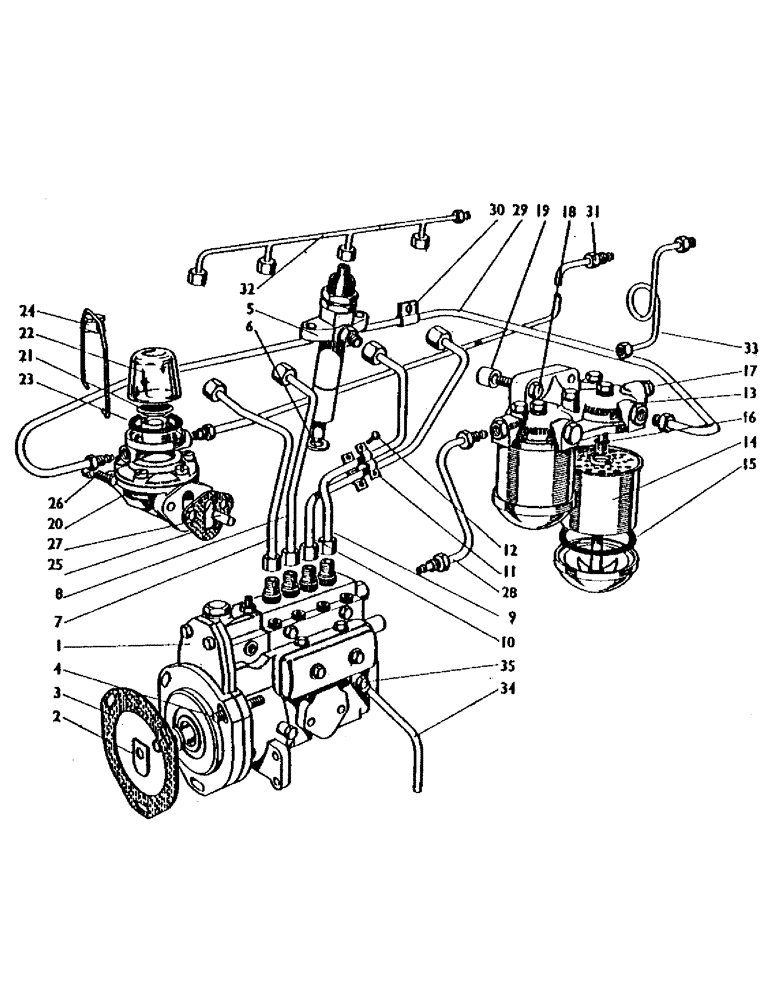

Запчасти Case IH 1200 (012) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE

1

K922691

SPARE PART

Injection pump (Simms SPGE 4M 80S, Engine 4913 onward 250/1150)

1шт.

1

K912484

Injection pump (Simms SPGE 4M 80S, Engine 1001-4912 250/1150)

1шт.

K11262

KEY

Woodruff No. 505

1шт.

2

K626378

NO LONGER SERVICED

tabwasher

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

locknut, 1/2 UNF

1шт.

3

K912485

GASKET

1шт.

4

K608137

STUD

5/16 UNC x 1 7/8 in.

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

3шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

3шт.

K19471

WASHER

5/16 in.

3шт.

5

K910530

NOZZLE

injector

4шт.

K904261

NOZZLE CAP

holder (Simms HB 97S 612) 910530

1шт.

K910080

NOZZLE

(Simms NL 446) 910530

1шт.

6

K901092

WASHER

copper washer 910530

1шт.

7

K914624

PIPE

fuel pipe--injection pump to No. 1 cylinder

1шт.

8

K914626

PIPE

fuel pipe--injection pump to No. 2 cylinder

1шт.

9

K914628

PIPE

fuel pipe--injection pump to No. 3 cylinder

1шт.

10

K914630

PIPE

fuel pipe--injection pump to No. 4 cylinder

1шт.

K900845

NUT

union nut injector pipes

8шт.

K900846

FERRULE

olive injector pipes

8шт.

11

K14673

CLIP

injector pipes

4шт.

12

K12217

SCREW,0.185" x 5/8"

2 BA x 5/8 in. injector pipes

4шт.

K11109

NUT

2 BA injector pipes

4шт.

K19488

SPRING WASHER

spring washer, 3/16 in. injector pipes

4шт.

13

K906708

FILTER

fuel filter (Purolater MF51600)

1шт.

K962263

COVER

head 906708

1шт.

14

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

element (CAV) alternatives 906708

2шт.

K915319

ELEMENT

(AC-Delco) alternatives 906708

2шт.

15

K960936

RING

'O' ring (large) 906708

4шт.

16

K960937

O-RING

'O' ring (small) 906708

2шт.

K962264

COVER

base 906708

2шт.

K962348

SCREW

vent plug 906708

1шт.

K24784

COPPER WASHER

sealing washer--vent plug 906708

1шт.

K600360

BOLT

5/16 UNC x 4 3/4 in. 906708

2шт.

17

K619532

PLUG

1/2 UNF, Serial Range: 700001-705004

1шт.

K626443

WASHER

copper washer, 1/2 in., Serial Range: 700001-705004

1шт.

K622061

VALVE

fuel tap alternative equipment

1шт.

K626024

FITTING

union, 1/2 UNF alternative equipment

1шт.

K626950

WASHER

fibre washer, 1/2 in. alternative equipment

2шт.

K19501

WASHER

fibre washer, 1/2 in. alternative equipment

1шт.

K626951

WASHER

fibre washer, 7/16 in. o. dia. alternative equipment

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' ring, 5/16 in. int. dia. alternative equipment

1шт.

18

K600406

BOLT

3/8 UNC x 1 3/4 in. filter to cylinder head

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. filter to cylinder head

2шт.

19

K627042

BUSHING

distance piece filter to cylinder head

2шт.

20

K909944

PUMP

fuel feed pump (AC-Delco E/FP63154/A)

1шт.

21

K961675

FILTER SCREEN

filter gauze 909944

1шт.

22

K66442

FILTER BOWL

909944

1шт.

23

K961674

SEAL

gasket 909944

1шт.

24

K961676

BAIL

stirrup and screw 909944

1шт.

K911917

DIAPHRAGM

909944

1шт.

25

K902136

GASKET

feed pump to cylinder block

1шт.

26

K602807

SCREW

setscrew, 5/16 UNC x 1 1/4 in. feed pump to cylinder block

2шт.

K19471

WASHER

5/16 in. feed pump to cylinder block

2шт.

K14988

WASHER

copper asbestos washer, 5/16 in. feed pump to cylinder block

2шт.

27

K911928

PUSH ROD,9.51mm OD x 35.99mm L

push rod--feed pump

1шт.

28

K912488

PIPE

fuel pipe--filter to injection pump

1шт.

29

K909952

PIPE

fuel pipe--feed, Serial Range: pump-filter

1шт.

30

K621603

CLIP

--fuel pipe to manifold stud

1шт.

31

K917153

PIPE

fuel pipe--tank to feed pump

1шт.

32

K915815

PIPE

leak-off pipe--injectors

1шт.

33

K917223

PIPE

fuel pipe--leak-off to tank, Serial Range: 700001-705004

1шт.

K923667

PIPE

--leak-off to tank 705005 onward

1шт.

K907037

FITTING

pipe--leak-off to filters 705005 onward

1шт.

34

K915350

PIPE

leak-off pipe--pump

1шт.

35

K921095

BANJO BOLT

banjo bolt, 5/16 UNF

1шт.

K36374

WASHER

sealing washer, 5/16 in.

2шт.
