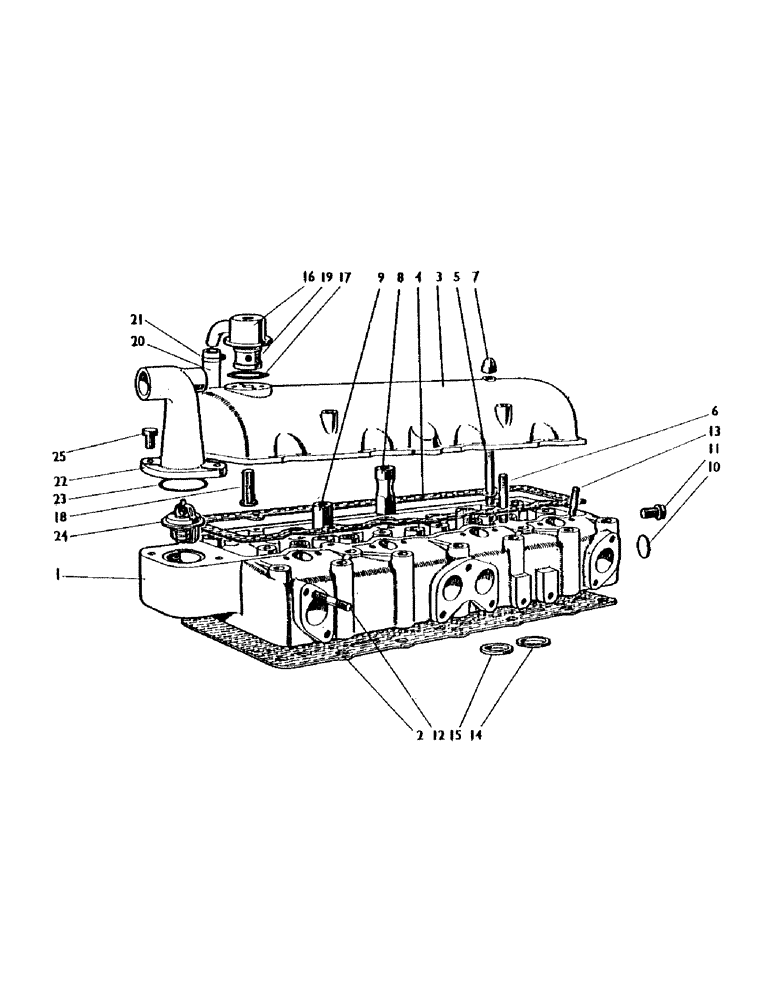

Запчасти Case IH 1200 (010) - CYLINDER HEAD (01) - ENGINE

1

K962268

CYLINDER HEAD

(with valve inserts, Engine 4913 onward and plugs)

1шт.

1

K962011

HEAD (CYLINDER)

cylinder head (with valve inserts, Engine 1001 to 4912 and plugs)

1шт.

2

K914795

GASKET

, Serial Range: gasket--head-block

1шт.

3

K920678

COVER

--cylinder head

1шт.

4

K905229

GASKET,3.97mm Thk

--cylinder head cover

1шт.

5

K608118

STUD

5/16 UNC x 3 7/16 in.

2шт.

6

K608119

STUD

5/16 UNC x 2 13/16 in.

2шт.

K14988

WASHER

copper-asbestos washer

4шт.

7

K607252

NUT

domed nut, 5/16 UNC

4шт.

K617581

NUT

1/2 UNF, special cylinder, Serial Range: head-block

3шт.

K600870

BOLT

1/2 UNC x 4 1/4 in. special cylinder, Serial Range: head-block

7шт.

8

K906536

NUT

elongated nut, 1/2 UNF cylinder, Serial Range: head-block

7шт.

9

K906898

NUT

lifting nut, 1/2 UNF cylinder, Serial Range: head-block

2шт.

K900431

PLUG

taper plug

4шт.

10

K623810

PLUG

welch plug, 1 in.

1шт.

11

K19591

PLUG

flanged plug, 1/8 BSP

1шт.

K16732

WASHER

copper washer, 3/8 in.

1шт.

12

K608203

STUD

3/8 UNC x 1 7/16 in.--manifold

12шт.

K608214

STUD

3/8 UNC x 2 in.--condult to inlet manifold

2шт.

K608216

STUD

3/8 UNC x 1 3/8 in.--exhaust manifold

1шт.

13

K608107

STUD

5/16 UNC x 2 11/16 in.--injector

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

8шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

8шт.

14a

K921246

INSERT

--inlet seat Engine 4913 onward

4шт.

15a

K921247

INSERT

--exhaust seat Engine 4913 onward

4шт.

14b

K905202

INSERT

--inlet seat Engine, Serial Range: 1001-4912

4шт.

15b

K62034

INSERT

--exhaust seat Engine, Serial Range: 1001-4912

4шт.

16

K920675

COVER

engine breather

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

'O' ring, 1 11/16 in. int. dia. engine breather

1шт.

18

K920677

BREATHER

bolt, 1/2 UNF, special engine breather

1шт.

19

K909672

DISTRIBUTOR

distance piece engine breather

1шт.

20

K920676

PIPE

hose engine breather

1шт.

21

K13069

HOSE

clip, 3/4 in. engine breather (replaces 13068)

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

locknut, 1/2 UNF, Engine breather

1шт.

K626443

WASHER

copper washer, 1/2 in. engine breather

1шт.

K902765

PIPE

oil pipe--cylinder, Serial Range: block-head

1шт.

K619525

PLUG

5/8 UNF temperature gauge aperture

1шт.

K626444

WASHER

copper washer, 5/8 in. temperature gauge aperture

1шт.

22

K915630

OUTLET

pipe--water outlet

1шт.

23

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

24

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.
