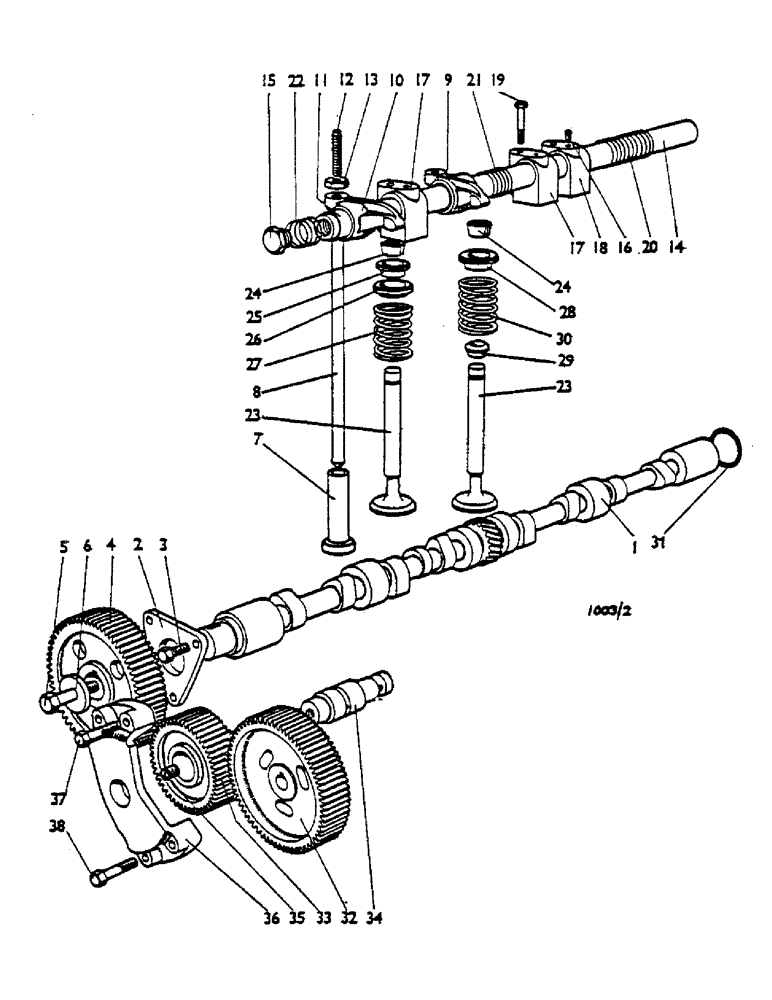

Запчасти Case IH 1200 (008) - CAMSHAFT, VALVE MECHANISM, AND INJECTION PUMP DRIVE (01) - ENGINE

1

K921769

CAMSHAFT

Engine 4913 onward

1шт.

1

K914673

CAMSHAFT

Engine, Serial Range: 1001-4912

1шт.

2

K902015

PLATE

locating plate

1шт.

3

K602885

HARDWARE

setscrew, 5/16 UNC x 1 in. (replaces 602805)

3шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

3шт.

4

K940081

GEAR

46 teeth--camshaft Engine 16472 onward

1шт.

4

K902016

GEAR

68 teeth--camshaft Engine, Serial Range: 1001-16471

1шт.

K19607

KEY

Woodruff No. 506

1шт.

5

K600700

BOLT

7/16 UNC x 2 in.

1шт.

6

K66382

WASHER

7/16 in.

1шт.

7

K901137

TAPPET

8шт.

8

K902035

ROD

push rod

8шт.

9

K961052

ROCKER

valve rocker, right-hand (with, "Nos. 2, 4, 6, 8--from front" bush) (number change)

4шт.

10

K961053

ROCKER

valve rocker, left-hand (with bush), "Nos. 1, 3, 5, 7--from front" (number change)

4шт.

11

K11060

BUSHING

bush--valve rocker

8шт.

12

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

--adjusting

8шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

locknut, 3/8 UNC

8шт.

14

K909622

SHAFT

--rocker

1шт.

15

K19590

PLUG

3/8 BSP

2шт.

16

K606051

SET SCREW,5/16" - 18 x 1/2"

locating screw

1шт.

17

K921431

BRACKET

--rocker shaft (Nos. 1, 2 and 3) (supersedes 913753)

3шт.

18

K921432

BRACKET

--rocker shaft (rear) (supersedes 913754)

1шт.

19

K600611

BOLT

7/16 UNC x 2 5/8 in. (replaces 600412)

4шт.

K19483

SPRING WASHER

spring washer, 7/16 in. (replaces 19482)

4шт.

K19473

WASHER

7/16 in.

4шт.

20

K11017

SPRING

locating spring--intermediate

2шт.

21

K11034

SPRING

locating spring--centre

1шт.

22

K11018

SPRING

locating spring--ends

2шт.

23

K928622

STD INLET VALVE

valve--inlet and exhaust Engine No. 11930 onward

8шт.

23

K921434

NO LONGER SERVICED

valve--exhaust Engine No., Serial Range: 4913-11929

4шт.

23

K921433

VALVE

--inlet Engine No., Serial Range: 4913-11929

4шт.

23

K900417

VALVE

--exhaust Engine No., Serial Range: 1001-4912

4шт.

23

K914528

VALVE

--inlet Engine No., Serial Range: 1001-4912

4шт.

24

K65893

LOCKING DEVICE

cotters (pairs) exhaust valve Engine No. 11930 onward

4шт.

24

K68412

COTTER PIN

cotters (pairs) exhaust valve Engine No., Serial Range: 4913-11929

4шт.

24

K68414

CAP

exhaust valve Engine No., Serial Range: 4913-11929

4шт.

24

K65893

LOCKING DEVICE

cotters (pairs) inlet valve Engine No., Serial Range: 4913-11929

4шт.

24

K68412

COTTER PIN

cotters (pairs) exhaust valve Engine No., Serial Range: 1001-4912

4шт.

24

K68414

CAP

exhaust valve Engine No., Serial Range: 1001-4912

4шт.

24

K65893

LOCKING DEVICE

cotters (pairs) inlet valve Engine No., Serial Range: 1001-4912

4шт.

24

K65893

LOCKING DEVICE

cotters (pairs) inlet valve Engine No. 11930 onward

4шт.

25

K928623

COLLAR

--inner exhaust valve Engine No. 11930 onward

4шт.

25

K900419

COLLAR

exhaust valve Engine No., Serial Range: 1001-4912

4шт.

25

K900419

COLLAR

exhaust valve Engine No., Serial Range: 4913-11929

4шт.

26

K928624

COLLAR

--outer exhaust valve Engine No. 11930 onward

4шт.

27

K921436

VALVE SPRING

spring exhaust valve Engine No. 11930 onward

4шт.

27

K921436

VALVE SPRING

spring exhaust valve Engine No., Serial Range: 4913-11929

4шт.

27

K914529

SPRING

--inlet and exhaust valves Engine No., Serial Range: 1001-4912

4шт.

28

K921437

COLLAR

inlet valve Engine No. 11930 onward

4шт.

28

K921437

COLLAR

inlet valve Engine No., Serial Range: 4913-11929

4шт.

28

K903995

COLLAR

inlet valve Engine No., Serial Range: 1001-4912

4шт.

29

K940481

OIL SEAL

inlet valve Engine No. 11930 onward

4шт.

29

K903996

NO LONGER SERVICED

seal inlet valve Engine No., Serial Range: 4913-11929

4шт.

29

K903996

NO LONGER SERVICED

seal inlet valve Engine No., Serial Range: 1001-4912

4шт.

30

K921435

SPRING

inlet valve Engine No. 11930 onward

4шт.

30

K921435

SPRING

inlet valve Engine No., Serial Range: 4913-11929

4шт.

30

K914529

SPRING

--inlet and exhaust valves Engine No., Serial Range: 1001-4912

4шт.

31

K623523

O-RING,1.802" OD x 0.143" Width

'O' ring, 1 13/16 in. int. dia.

1шт.

32

K940080

DRIVE

gear, 46 teeth--injection, Engine 16472 onward pump

1шт.

K912486

DRIVE

gear, 68 teeth--injection, Engine 1001 to 16471 pump

1шт.

33

K940078

GEAR

31 teeth--intermediate Engine 16472 onward

1шт.

K917904

GEAR

47 teeth--intermediate Engine, Serial Range: 1001-16471

1шт.

34

K918913

NO LONGER SERVICED

shaft--intermediate gear

1шт.

35

K606021

SCREW

grubscrew, 5/16 UNC x 5/16 in.

2шт.

36

K904073

SUPPORT

bracket--intermediate gear support

1шт.

37

K600324

BOLT

5/16 UNC x 1 3/4 in. support bracket (replaces 600207)

2шт.

38

K600325

BOLT

5/16 UNC x 2 in. support bracket (replaces 600209)

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. support bracket

4шт.
