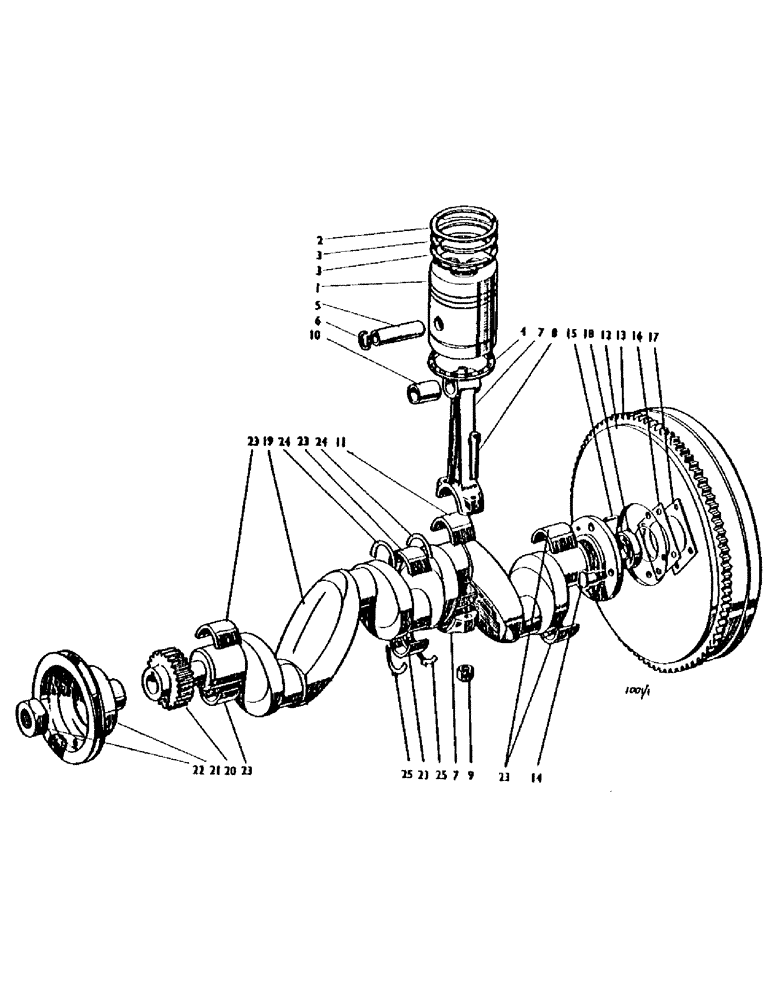

Запчасти Case IH 1200 (006) - PISTONS, CONNECTING RODS, FLYWHEEL AND CRANKSHAFT (01) - ENGINE

K921287

SPARE PART

piston and gudgeon pin assembly (supersedes 914793)

4шт.

1

K921288

SPARE PART

piston (not supplied separately), 921287 (standard) (supersedes 914794)

1шт.

2

K915240

NO LONGER SERVICED

piston ring--No. 1 compression 921287 (standard)

1шт.

3

K915241

NO LONGER SERVICED

piston ring--Nos. 2 and 3, 921287 (standard) compression

2шт.

4

K915242

SCRAPER

piston ring--scraper 921287 (standard)

1шт.

5

K904370

PIN

gudgeon pin 921287 (standard)

1шт.

6

K34501

RING, SNAP

circlip 921287 (standard)

2шт.

7

K80043

ROD, CONNECTING

connecting rod and cap assembly

4шт.

8

K905198

BOLT

--connecting rod 80043

2шт.

9

K15135

NUT

Nyioc nut, 7/16 BSF 80043

2шт.

10

K31669

BEARING

bush--small end 80043

4шт.

11

K911904

HALF-BEARING, CRANKS

bearing--big end (halves) standard

8шт.

12

K915310

FLYWHEEL

and starter ring assembly

1шт.

13

K36134

GEAR

starter ring

1шт.

14

K903431

STEP BOLT

7/16 UNF, special

4шт.

15

K10629

PIN

dowel

1шт.

16

K910883

WASHER

tabwasher

1шт.

K616968

NUT

7/16 UNF (replaces 617003)

4шт.

17

K912323

HOUSING

locating disc

1шт.

18

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

1шт.

19

K962157

CRANKSHAFT

(with bearings and thrust washers)

1шт.

20

K940082

GEAR

23 teeth Engine 16472 onward

1шт.

K917898

GEAR

34 teeth Engine, Serial Range: 1001-16471

1шт.

K19608

KEY

Woodruff No. 606

1шт.

21

K971801

PULLEY

1шт.

22

K623300

NUT

1шт.

K626403

WASHER

1шт.

23

K928541

HALF-BEARING, CRANKS

main bearing--upper and lower, standard (replaces 90203718)

6шт.

24

K928542

SET

thrust washer--upper (replaces, standard 902023)

2шт.

25

K928543

SET

thrust washer--lower (replaces, standard 902024)

2шт.
