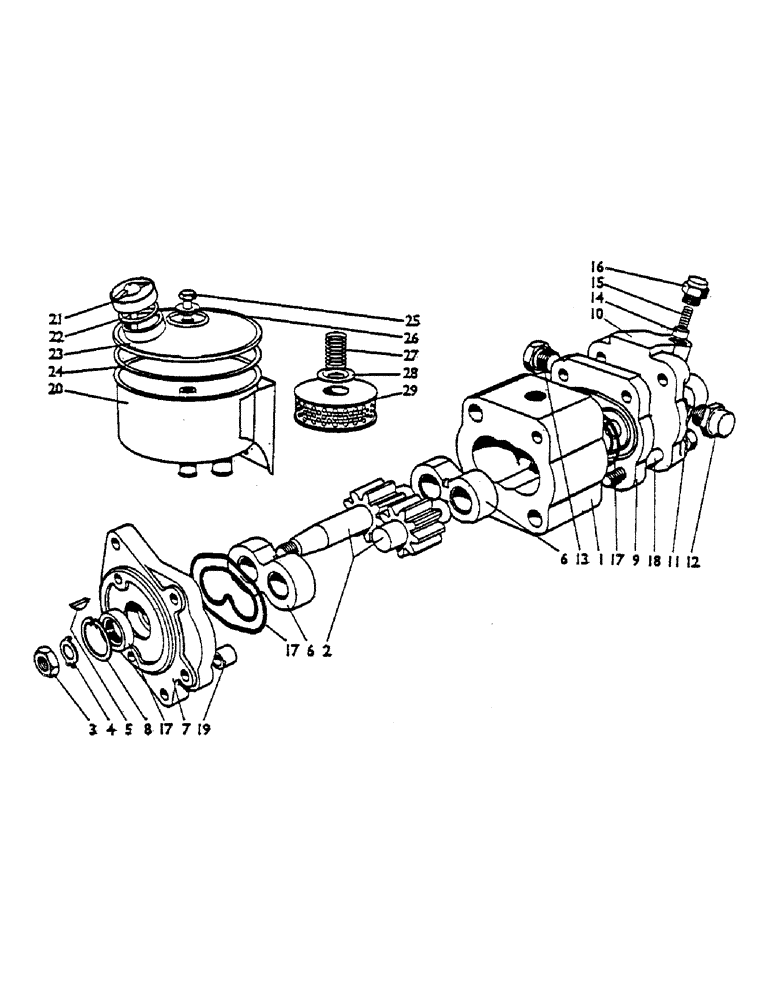

Запчасти Case IH 1200 (094) - PUMP AND RESERVOIR, PART OF U965, POWER-ASSISTED STEERING Steering & Front Axle

1

K918993

PUMP

assembly

1шт.

2

K962179

GEAR

rotor pack 918993

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

locknut 918993

1шт.

4

K626380

WASHER

tabwasher 918993

1шт.

5

K19604

KEY

918993

1шт.

6

K962189

BEARING

s (pair) 918993

1шт.

7

K962187

FLANGE

mounting flange 918993

1шт.

8

K962097

RING, SNAP

circlip 918993

1шт.

9

K962303

PLATE ASSY.

sandwich plate 918993

1шт.

10

K962180

COVER

(with flow control valve spool), 918993

1шт.

11

K962304

SPRING

--flow control valve 918993

1шт.

12

K962305

CAP

--flow control valve 918993

1шт.

13

K962306

PLUG

--flow control valve 918993

1шт.

14

K962307

PLUNGER

--relief valve 918993

1шт.

15

K962308

SPRING

--relief valve 918993

1шт.

16

K962309

CYLINDER END CAP

cap--relief valve 918993

1шт.

17

K962178

SEAL

seal pack (8 'O' rings and oil seal), 918993

1шт.

18

K600414

BOLT

3/8 UNC x 3 3/4 in. 918993

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. 918993

4шт.

19

K962110

PIN

ring dowel 918993

2шт.

20

K919650

RESERVOIR

assembly

1шт.

21

K960841

CAP

filler cap with dipstick 919650

1шт.

22

K960843

CAP

sealing ring--filler cap 919650

1шт.

23

K962193

COVER

919650

1шт.

24

K960725

GASKET

sealing ring--cover 919650

1шт.

25

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

919650

1шт.

K626682

WASHER

919650

1шт.

26

K960723

COVER

sealing washer 919650

1шт.

27

K962190

VALVE SPRING

spring 919650

1шт.

28

K962191

CAP

--element 919650

1шт.

29

A42242

FILTER, ELEMENT

element 919650

1шт.
