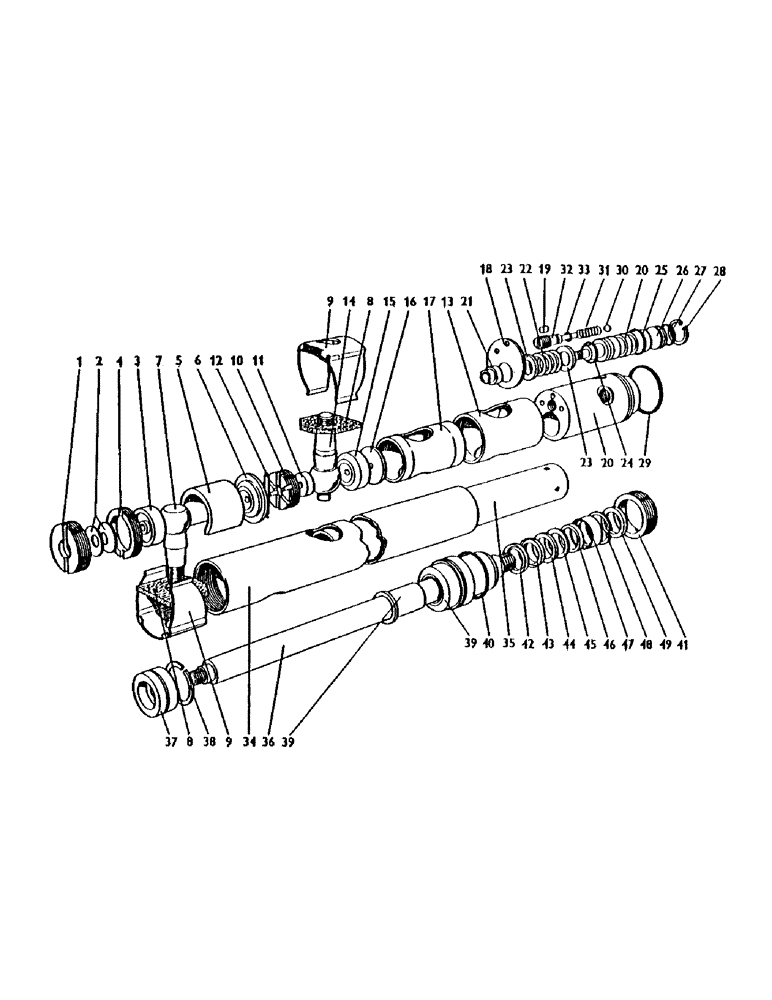

Запчасти Case IH 1200 (092) - HYDRAULIC RAM, PART OF U965, POWER-ASSISTED STEERING Steering & Front Axle

K920350

CYLINDER

hydraulic ram assembly

1шт.

1

K960796

COVER

end cover

1шт.

K960797

NO LONGER SERVICED

grease nipple

2шт.

K960799

PIN

split pin

1шт.

2

K960785

DISC

Believille washers

4шт.

3

K960794

BALL

cup

1шт.

4

K960795

LOCK

ring

1шт.

5

K960793

BUSHING

spacer--ball cups

1шт.

6

K960791

BALL

cup

1шт.

7

K960792

BALL

pin--steering lever

1шт.

8

K960801

PAD

grease retainer pad

2шт.

9

K960800

RING

spring cover

2шт.

K960825

NUT

--ball pin

2шт.

10

K961987

HOLDER

--ball cup

1шт.

11

K960858

BALL

cup

1шт.

12

K960860

SPRING

clip--ball cup locking

1шт.

13

K960790

SLEEVE

locating sleeve

1шт.

14

K960787

BALL

pin--drag link

1шт.

15

K960786

BALL

cup

1шт.

16

K960784

WASHER

backing washer

1шт.

17

K961986

SLEEVE

operating sleeve

1шт.

18

K960779

BUSHING

spacer

1шт.

19

K960773

PIN

locating pin

2шт.

K960782

nut--valve spool

1шт.

K960861

NO LONGER SERVICED

split pin--spool nut

1шт.

K960781

WASHER

hardened washer--spool

1шт.

20

K961997

LOCK VALVE

valve body and spool (not supplied separately)

1шт.

21

K961985

COLLAR

--spool

1шт.

22

K960776

SPRING

reaction spring

1шт.

23

K962244

WASHER

reaction washer

2шт.

24

K961982

O-RING

'O' ring--spool

1шт.

25

K960768

O-RING

'O' ring--valve body

1шт.

26

K960770

COVER

end cover--valve body

1шт.

27

K960769

O-RING

'O' ring--end cover

1шт.

28

K960771

NO LONGER SERVICED

circlip--valve body

1шт.

29

K960806

O-RING

'O' ring--valve body

1шт.

30

K960765

BALL

--relief valve

1шт.

31

K960766

SPRING

--relief valve

1шт.

32

K961980

plug--valve housing

1шт.

33

K961981

RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

'O' ring--plug

1шт.

34

K962248

TUBE

outer tube

1шт.

35

K962251

TUBE

inner tube

1шт.

K962247

COLLAR CLAMP

locating collar--inner tube

1шт.

K962253

O-RING

'O' ring--locating collar

1шт.

36

K962258

PISTON

rod and ball (not supplied separately)

1шт.

37

K962260

SWITCH

piston

1шт.

38

K962261

RING

piston ring

1шт.

K960819

nut--piston rod

1шт.

K960818

NO LONGER SERVICED

washer--piston rod

1шт.

K960820

PIN

split pin--piston nut

1шт.

39

K962254

NO LONGER SERVICED

bearing and bush (not supplied separately)

1шт.

40

K961983

WASHER

'O' ring--bearing

1шт.

41

K962257

RING, LOCKING

locking ring

1шт.

42

K961990

SEAL

spreader

1шт.

43

K960809

SHAFT SEAL

gland ring

1шт.

44

K960810

SEALING WASHER

vellumoid washer

1шт.

45

K960811

WASHER

metal washer

1шт.

46

K960862

SCRAPER

ring

1шт.

47

K960863

HOUSING

--scraper ring

1шт.

48

K960814

RING, SNAP

circlip--bearing housing

1шт.

49

K960864

SEAL

lip scraper

1шт.

K960832

HOUSING

anchor ball housing--inner

1шт.

K962262

BALL

anchor ball housing--outer

1шт.

K960797

NO LONGER SERVICED

grease nipple--ball housing

1шт.

K960835

COVER

rubber cover--ball housing

1шт.

K962186

SEAL

pack ('O' rings, washers and gland ring)

1шт.
