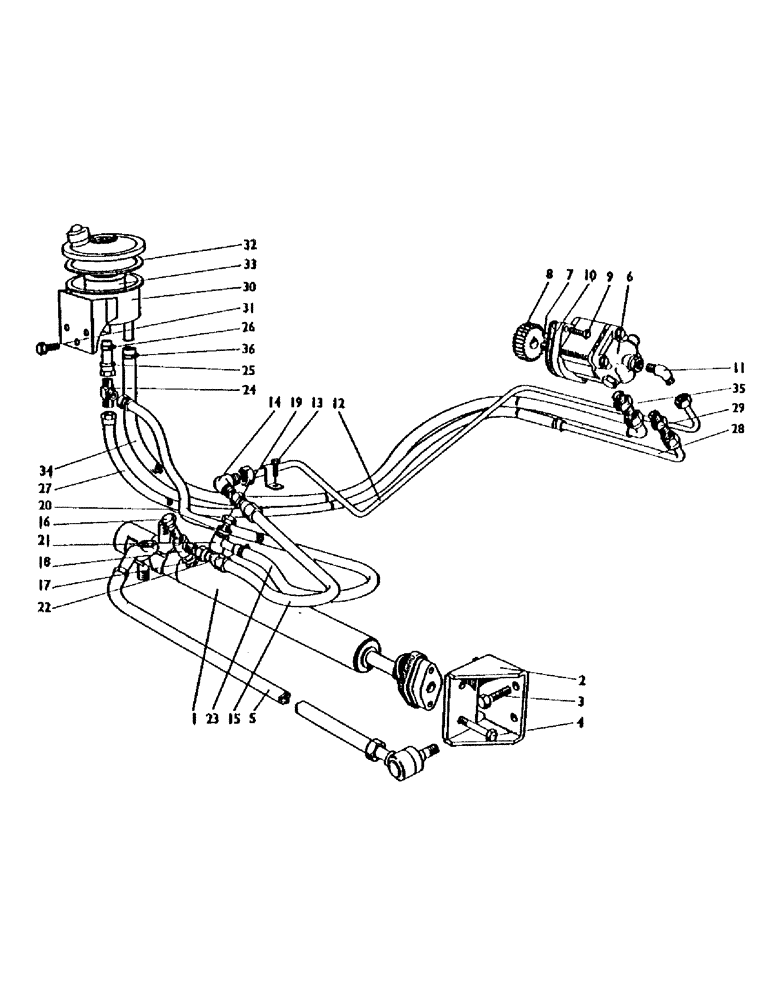

Запчасти Case IH 1200 (090) - POWER-ASSISTED STEERING, U965 Steering & Front Axle

1

K920350

CYLINDER

ram assembly (see Figure 92)

1шт.

2

K920347

BRACKET

anchor bracket--ram

1шт.

3

K603306

BOLT

setscrew, 5/8 UNC x 1 1/2 in., replaces 601203 bracket to main frame front

4шт.

K19485

WASHER

spring washer, 5/8 in. bracket to main frame front

4шт.

4

K600705

BOLT

7/16 UNC x 2 5/8 in. (replaces 600611)

2шт.

280717

NUT,7/16"-14, G5

2шт.

K19483

SPRING WASHER

spring washer, 7/16 in.

2шт.

K923478

LINK

drag link assembly (supersedes 919728)

1шт.

5

K923477

LINK

tube drag link (supersedes 919727) 923478

1шт.

K902316

EYE

end 923478

1шт.

K622500

LOCK NUT

locknut, 3/4 Whit. 923478

1шт.

K915962

BALL JOINT

ball socket assembly 923478

1шт.

K962155

CAP

dirt excluder 915962 923478

1шт.

K617106

NUT

slotted nut, 5/8 UNF 915962 923478

1шт.

K622500

LOCK NUT

locknut, 3/4 Whit. 915962 923478

1шт.

K19530

PIN

split pin, 3/22 x 1 in.

1шт.

K19533

PIN

split pin, 1/8 x 1 1/4 in.

2шт.

6

K918993

PUMP

assembly (see Figure 94)

1шт.

7

K19604

KEY

Woodruff No. 405

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

7/16 UNF

1шт.

K626380

WASHER

tabwasher

1шт.

8

K940083

DRIVE

gear, 18 teeth Engine 16472 onward

1шт.

8

K919659

PINION

gear, 28 teeth Engine, Serial Range: 1001-16471

1шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

10

K919729

GASKET,0.76mm Thk

--carrier plate

1шт.

11

K622110

FITTING

, Serial Range: elbow--pump-pipe

1шт.

12

K920137

PIPE

, Serial Range: steel--pump-ram

1шт.

13

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. pipe to front extension

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pipe to front extension

1шт.

14

K622112

FITTING

elbow, ?/16 UNF

1шт.

15

K919731

HOSE

pipe, flexible ram inlet

1шт.

16

K915586

PIN

banjo bolt, 5/8 UNF ram inlet

1шт.

17

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ing washer, 5/8 in. ram inlet

2шт.

18

K915584

BANJO BOLT

banjo ram inlet

1шт.

19

K915586

PIN

banjo bolt, 5/8 UNF ram outlet

1шт.

20

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ing washer, 5/8 in. ram outlet

2шт.

21

K915585

ADAPTER

banjo adaptor ram outlet

1шт.

22

K13069

HOSE

clip, 3/4 in. dia. ram outlet

1шт.

23

K919732

HOSE

pipe, flexible--ram to tee-piece ram outlet

1шт.

24

K622160

FITTING

tee piece reservoir inlet

1шт.

25

K919734

HOSE

pipe, flexible reservoir inlet

1шт.

26

K13069

HOSE

clip, 3/4 in. dia. reservoir inlet

2шт.

27

K919733

HOSE

pipe, flexible--pump to tee-piece reservoir inlet

1шт.

28

K920875

ADAPTER

pipe--flexible pipe to union reservoir inlet

1шт.

29

K626028

FITTING

union, 5/8 UNF reservoir inlet

1шт.

30

K919650

RESERVOIR

assembly (see Figure 94)

1шт.

31

K602701

BOLT

setscrew, 1/4 UNC x 1/2 in. reservoir to support frame

3шт.

K19480

SPRING WASHER

spring washer, 1/4 in. reservoir to support frame

3шт.

K607000

NUT

1/4 UNC reservoir to support frame

3шт.

32

K960725

GASKET

washer--reservoir cover

1шт.

33

K902187

FILTER

element

1шт.

34

K920859

HOSE

pipe, Serial Range: flexible--reservoir-pump

1шт.

35

K920858

ADAPTER

adaptor, 5/8 UNF pump inlet

1шт.

36

K13070

HOSE

clip, 7/8 in. dia. pump inlet

1шт.

K14563

BUCKLE

clip pump inlet

2шт.

K621664

CLIP

Fastex clip, 7 in.

3шт.
