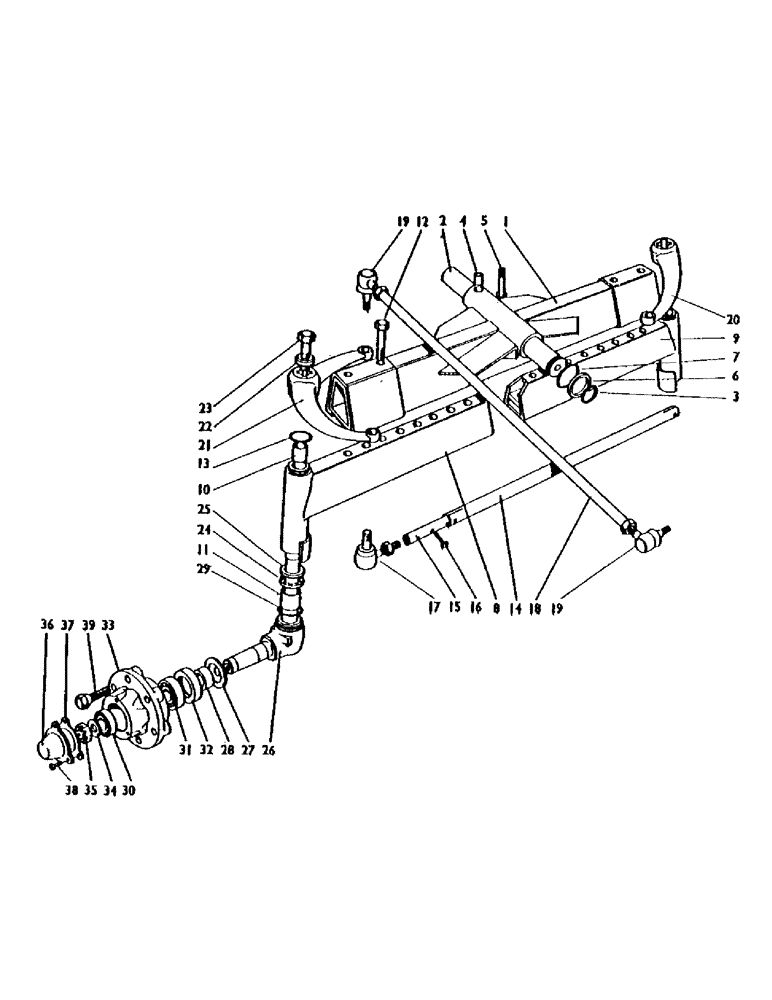

Запчасти Case IH 1200 (082) - FRONT AXLE Steering & Front Axle

1

K918861

BEAM

centre beam

1шт.

2

K913091

PIN

trunnion pin

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

'O' ring, 1 1/4 in. int. dia.--trunnion pin

1шт.

4

K913092

NUT

screwed bush

1шт.

5

K600505

BOLT

3/8 UNC x 2 3/4 in.

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

1шт.

6

K915421

WASHER

thrust washer

2шт.

7

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

'O' ring, 2 1/8 in. int. dia.

2шт.

8

K962006

SHAFT

beam extension, left-hand (with bushes)

1шт.

9

K962007

EXTENSION

beam extension, right-hand (with bushes)

1шт.

10

K621331

BUSHING

- upper

2шт.

11

K621367

BUSHING

bush, lower

2шт.

12

K601661

BOLT

7/8 UNC x 3 3/4 in., special

4шт.

K626350

SPRING

washer, 7/8 in.

4шт.

13

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

'O' ring, 2 1/8 in. int. dia.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

14

K918955

BUSHING

spacer tube

1шт.

15

K906210

ROD

track rod

2шт.

16

K600316

BOLT

5/16 UNC x 2 1/4 in.

2шт.

K607004

NUT

5/16 UNC

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

17

K908071

BALL JOINT

ball socket assembly

2шт.

K961701

BOOT

dirt excluder (rubber) 908071

1шт.

K622500

LOCK NUT

locknut, 3/4 Whit. 908071

1шт.

K617104

NUT

slotted nut, 1/2 UNF 908071

1шт.

K19530

PIN

split pin, 3/32 x 1 in.

2шт.

K923478

LINK

drag link assembly (power-assisted, supersedes 919728 steering, see Figure 90)

1шт.

K923470

LINK ASSY.

drag link assembly (manual, supersedes 915985 steering)

1шт.

18

K923469

LINK

drag link tube (supersedes 915986) 923470

1шт.

19

K915962

BALL JOINT

ball socket assembly 923470

2шт.

K962155

CAP

dirt excluder 915962 923470

1шт.

K617106

NUT

slotted nut, 5/8 UNF 915962 923470

1шт.

K622500

LOCK NUT

locknut, 3/4 Whit. 915962 923470

1шт.

K19534

PIN

split pin, 1/8 x 1 1/2 in.

1шт.

20

K918933

LEVER

steering lever, right-hand

1шт.

21

K918932

LEVER

steering lever, left-hand

1шт.

22

K15595

WASHER

5/8 in., special

2шт.

23

K601212

BOLT

5/8 UNC x 3 in.

2шт.

K19485

WASHER

spring washer, 5/8 in.

2шт.

24

K620180

THRUST BEARING

(use with 626692)

2шт.

24

K620184

BEARING WASHER

thrust bearing (use with 626859)

2шт.

25

K626692

DISC

thrust washer (use with 620180)

4шт.

25

K626859

BEARING WASHER,44.5mm ID x 63.25mm OD x 1.6mm Thk

thrust washer (use with 620184)

4шт.

26

K962019

STEERING KNUCKLE

stub axle assembly

2шт.

27

K910429

SPACER

dirt excluder 962019

1шт.

28

K910428

RING RACE

sleeve--oil seal 962019

1шт.

29

K24764

O-RING

'O' ring, 2 5/8 in. int. dia.

2шт.

30

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

taper roller bearing--outer

2шт.

31

K19186

BEARING, ROLLER

taper roller bearing--inner

2шт.

32

K623419

OIL SEAL

oil seal

2шт.

33

K916377

HUB

front hub

2шт.

34

K626673

WASHER

3/4 in., special

2шт.

35

K617157

NUT

slotted nut, 3/4 UNF

2шт.

K623603

PIN

split pin, 11/64 x 1 1/8 in.

2шт.

36

K908913

CAP

hub cap

2шт.

37

K15344

GASKET,0.25mm Thk

2шт.

38

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

setscrew, 5/16 UNC x 5/8 in.

6шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--Front hub 1/4"-28 NPT x .54" lg

2шт.

39

K600875

BOLT

wheel bolt, 1/2 UNC x 1 7/8 in.

12шт.

K627943

NO LONGER SERVICED

plastic plug--beam extension holes

10шт.
