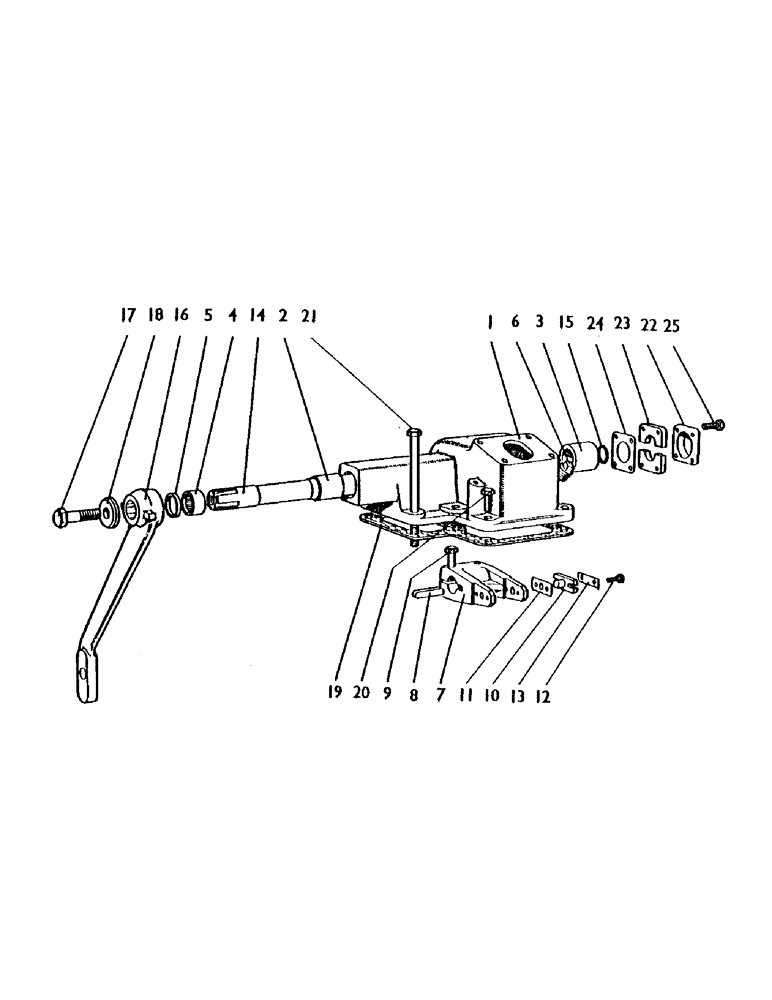

Запчасти Case IH 1200 (080) - STEERING-BOX AND DROP ARM Steering & Front Axle

1

K962021

BOX

steering-box

1шт.

2

K621365

BUSHING

bush 962021

1шт.

3

K917090

BUSHING

bush 962021

1шт.

4

K690321

NEEDLE BEARING

bearing 962021

1шт.

5

K623418

OIL SEAL

oil seal 962021

1шт.

6

K14659

PLUG

taper plug, 1/2 BSP

1шт.

7

K915950

ROCKER LEVER

rocker arm

1шт.

8

K622323

KEY

3/8 in. sq. x 3 3/8 in.

1шт.

9

K600610

BOLT

7/16 UNC x 2 1/2 in.

2шт.

K19483

SPRING WASHER

spring washer, 7/16 in.

2шт.

10

K912108

BALL

peg

2шт.

12

K602702

SCREW

setscrew, 1/4 UNC x 5/8 in.

4шт.

13

K912109

WASHER

tabwasher

2шт.

14

K915953

SHAFT

--drop arm

1шт.

15

K15596

RING,3.63mm Thk x 31.34mm ID

'O' ring, 1 1/4 in. int. dia.

1шт.

16

K923468

ARM

drop arm (supersedes 915954)

1шт.

17

K601213

BOLT

5/8 UNC x 3 1/4 in. drop, Serial Range: arm-shaft

1шт.

K19485

WASHER

spring washer, 5/8 in. drop, Serial Range: arm-shaft

1шт.

18

K15595

WASHER

5/8 in., special drop, Serial Range: arm-shaft

1шт.

19

K915949

GASKET

steering-box to gearbox cover

1шт.

20

K600806

BOLT

1/2 UNC x 2 in. steering-box to gearbox cover

8шт.

K19484

LOCK WASHER

spring washer, 1/2 in. steering-box to gearbox cover

10шт.

21

K600835

BOLT

1/2 UNC x 9 in. steering-box to gearbox cover

2шт.

22

K915960

COVER

end cover

1шт.

23

K915959

PLATE

thrust plate

2шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. cover to steering-box

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in., Serial Range: cover-steering-box

4шт.
