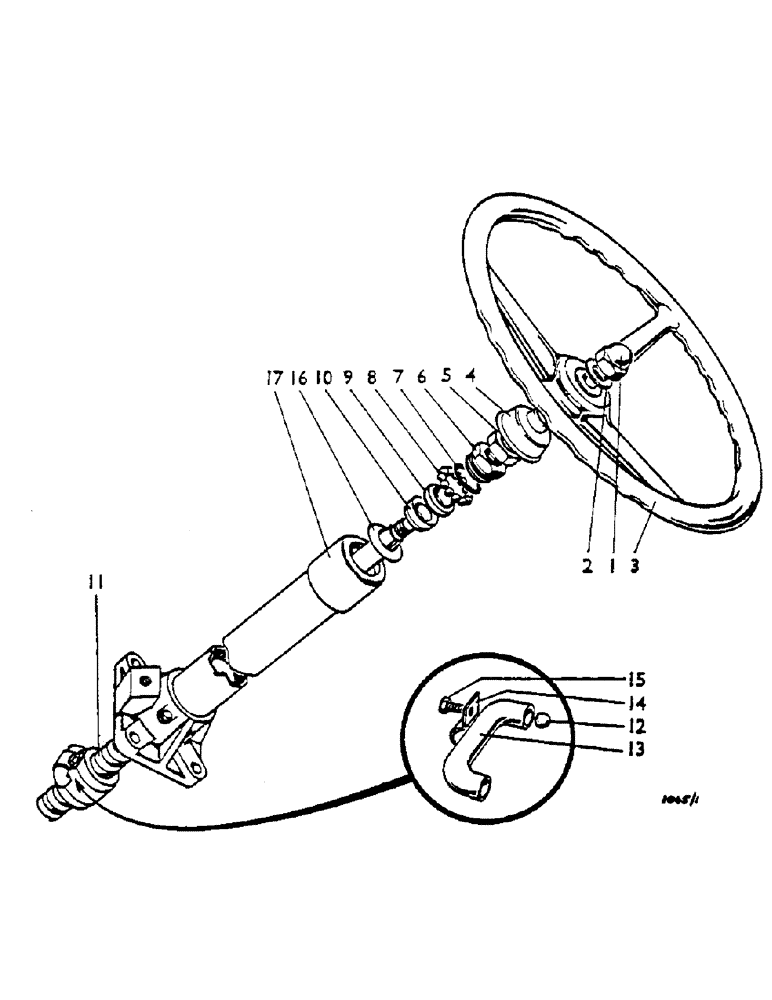

Запчасти Case IH 1200 (079) - STEERING WHEEL AND COLUMN Steering & Front Axle

1

K905679

NUT

domed nut, 5/8 UNC

1шт.

2

K626671

WASHER

5/8 in., special

1шт.

3

K914001

WHEEL

steering wheel

1шт.

K19608

KEY

Woodruff No. 606

1шт.

4

K923681

SEAL

dirt excluder

1шт.

K915920

STEERING COLUMN

assembly

1шт.

5

K924967

NUT

locknut (replaces 903467) 915920

1шт.

6

K903463

BEARING CONE

adjustable bearing cone 915920

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

'O' ring, 1 1/4 in. int. dia. 915920

1шт.

8

K13506

BALL

steel ball, 3/8 in. dia. 915920

12шт.

9

K903462

SPHERICAL BEARING

lower bearing 915920

1шт.

10

K903461

SPACER

spherical seating 915920

1шт.

11

K915919

STEM

steering screw and nut 915920

1шт.

K961672

NUT

steering nut 915919 915920

1шт.

12

K11286

BALL

steel ball, 5/16 in. dia. 915919 915920

28шт.

13

K960990

TUBE NUT

transfer tube (halves) 915919 915920

1шт.

14

K960991

RETAINER

clip--transfer tube 915919 915920

1шт.

15

K960992

BOLT

special bolt 915919 915920

2шт.

16

K903469

PAD, RUBBER

rubber baffle 915920

1шт.

17

K915922

CYLINDER

column 915920

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 915920 1/4"-28 NPT x .54" lg

1шт.

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

setscrew, 7/16 UNC x 1 1/2 in.

4шт.

K19483

SPRING WASHER

spring washer, 7/16 in.

4шт.
