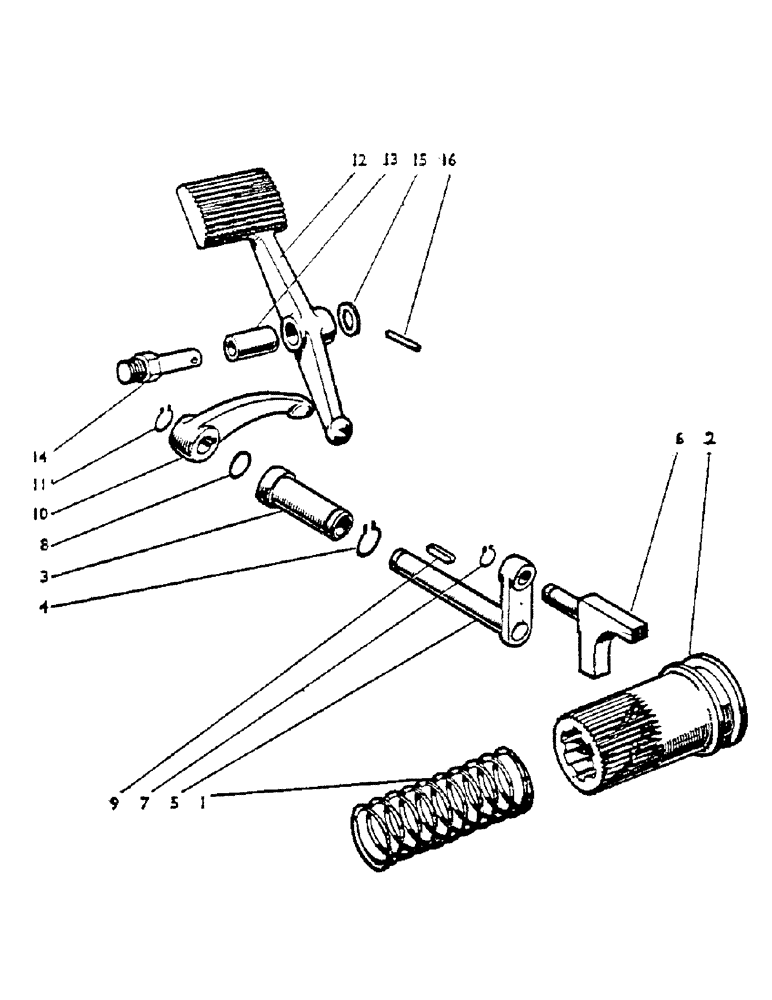

Запчасти Case IH 1200 (037) - DIFFERENTIAL LOCK Gearbox

1

K625205

SPRING

return spring

1шт.

2

K903191

SLEEVE

locking sleeve

1шт.

3

K903494

BUSHING

bush--cross shaft

1шт.

4

K34454

RING, SNAP

circlip, 7/8 in., ext.

1шт.

5

K903197

SHAFT

cross shaft and arm

1шт.

6

K903226

SELECTOR

fork

1шт.

K626674

WASHER

1/2 in., special

1шт.

7

K11302

RING, SNAP

circlip, 1/2 in., ext.

1шт.

8

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' ring, 5/8 in. int. dia.

1шт.

9

K622309

KEY

3/16 x 5/22 x 3/4 in.

1шт.

10

K903228

LEVER

1шт.

11

K11797

RING, SNAP

circlip, 5/8 in., ext.

1шт.

12

K962020

LOCK

pedal (with bush)

1шт.

13

K621377

BUSHING

bush

1шт.

14

K916855

STUD

pivot pin--pedal

1шт.

15

K19475

WASHER

5/8 in.

1шт.

16

K19532

PIN

split pin, 1/8 x 1 in. (replaces 690976)

1шт.
