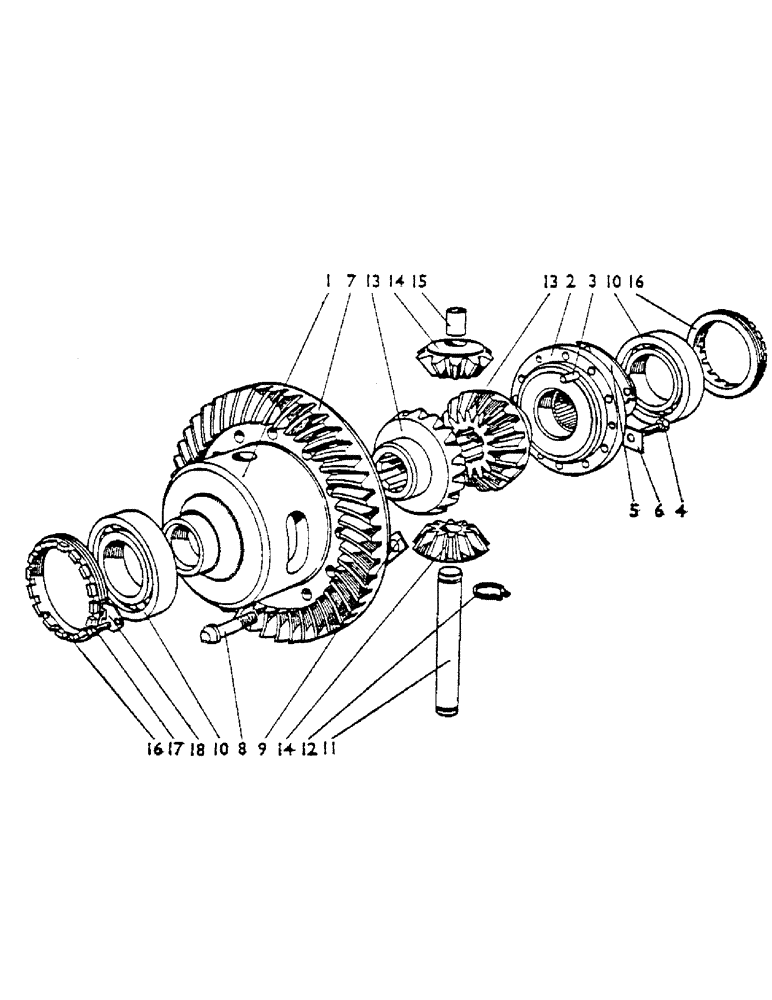

Запчасти Case IH 1200 (036) - DIFFERENTIAL Gearbox

1

K908780

HOUSING

cage

1шт.

2

K903184

FLANGE

end plate--cage

1шт.

3

K621801

PIN

dowel, 3/8 x 1 1/8 in.

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

tabwasher

3шт.

6

K626372

WASHER

tabwasher

3шт.

7

K962043

GEAR

bevel pinion and spiral gear (7/43 teeth)

1шт.

8

K905664

WHEEL BOLT

7/16 UNC, special

12шт.

9

K30236

WASHER

tabwasher

6шт.

280717

NUT,7/16"-14, G5

12шт.

10

K19010

BALL BEARING

2шт.

11

K916863

NO LONGER SERVICED

pin--differential

1шт.

12

K11128

CIRCLIP

1 in., ext.

2шт.

13

K30234

CONE PINION

wheel

2шт.

14

K928900

DIFFERENTIAL

pinion (with bush) 715045 onward

2шт.

14

K910465

NO LONGER SERVICED

pinion (with bush), Serial Range: 700001-715044

2шт.

15

K928899

BUSHING

bush 715045 onward

2шт.

15

K621344

BUSHING

bush, Serial Range: 700001-715044

2шт.

16

K15007

RING, LOCKING

adjuster wheel

2шт.

17

K602801

BOLT (SPREADER)

setscrew, 5/16 UNC x 1/2 in.

2шт.

18

K626420

WASHER

lock plate (replaces 626420)

2шт.
